Product Info
- Manufacturer:Littelfuse
- Sub-Category:Fuse Block
Description
L60030M-3C

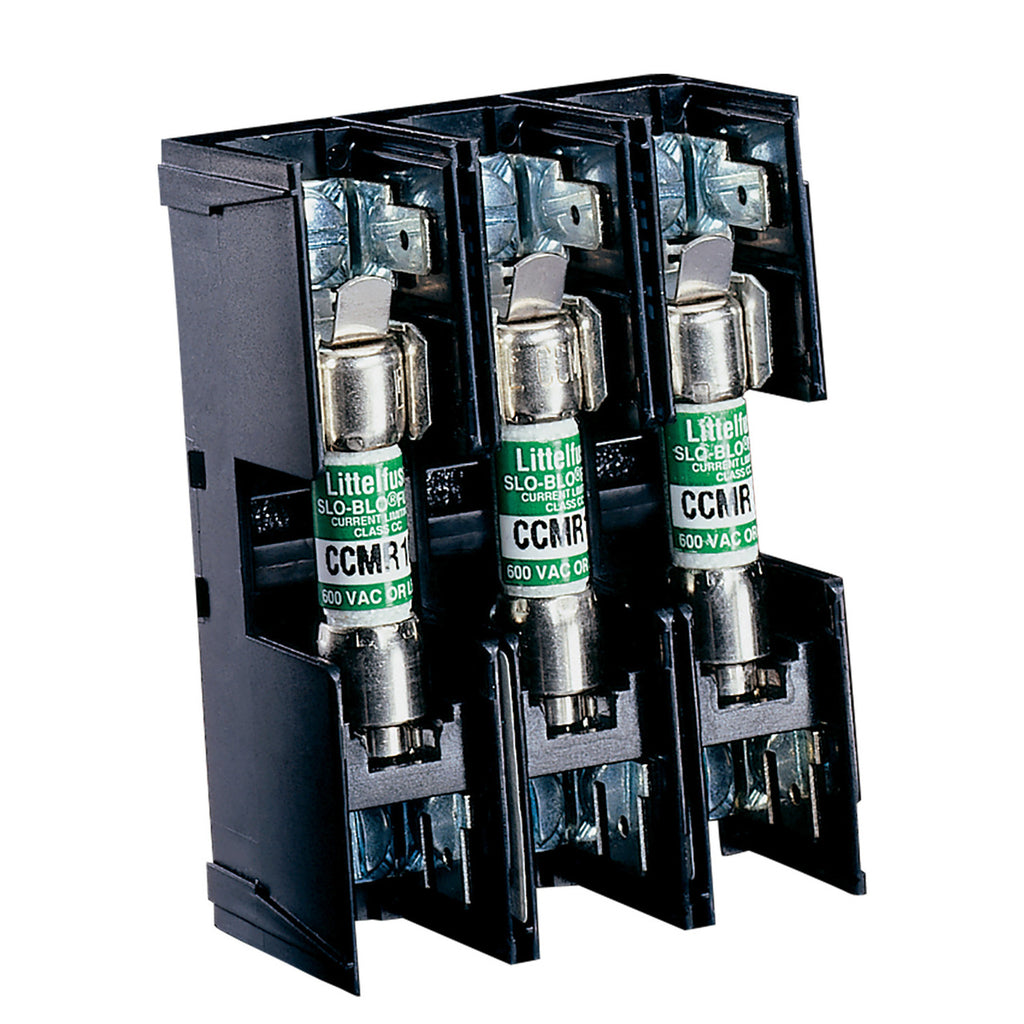

L60030M-3C is a Littelfuse 30 amp, 600 volt, 3-pole Class CC midget fuse block designed for reliable circuit protection and easy installation.This fuse block features a molded high-strength, high-temperature thermoplastic body to minimize breakage and heat damage. It includes one-piece copper alloy fuse clips for reduced resistance and heat rise. The block is gangable for multi-pole configurations and mounts easily on standard 35mm DIN rails with patented adapters. It supports 14 to 6 AWG wire sizes with box lug terminals and is UL and CSA certified.
- Amperage Rating: 30 A
- Voltage Rating: 600 VAC/VDC
- Number of Poles: 3
- Fuse Class: CC (Midget)
- Mounting Type: DIN Rail with adapters
- Terminal Type: Box Lug
- Wire Size: 14 to 6 AWG
- Material: High-strength thermoplastic
- Interrupt Rating: Suitable for Class CC fuses
- Certifications: UL, CSA
- Dimensions: 2.283 in W x 1.25 in D x 3 in H
- Country of Origin: China
Specifications
- Part Number: L60030M-3C
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Fuse Block
- Family : L600M
- Type : L600M
- Voltage : 600
- Amperage : 30
Product Data
- UPC : 07945800960
- GTIN : 00079458009606
- Weight : 0.08
