Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
L50S700

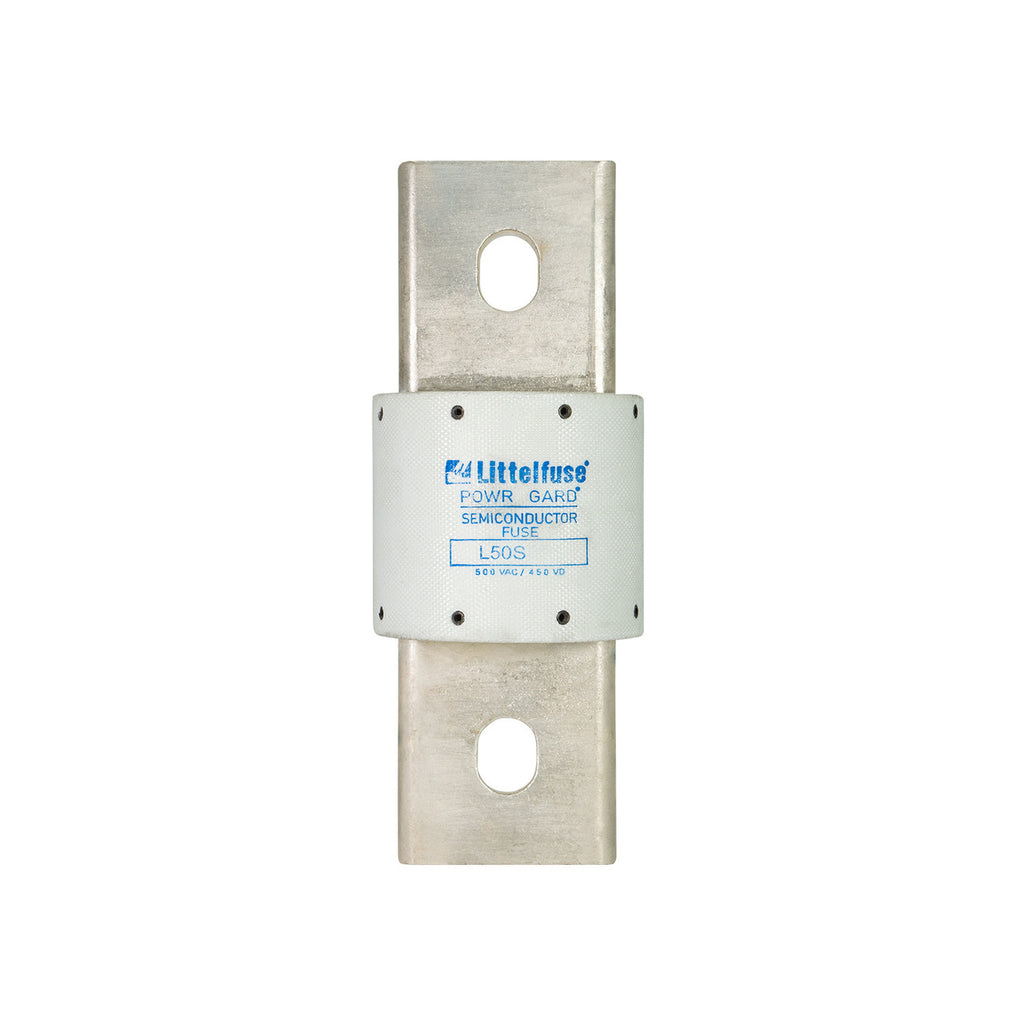

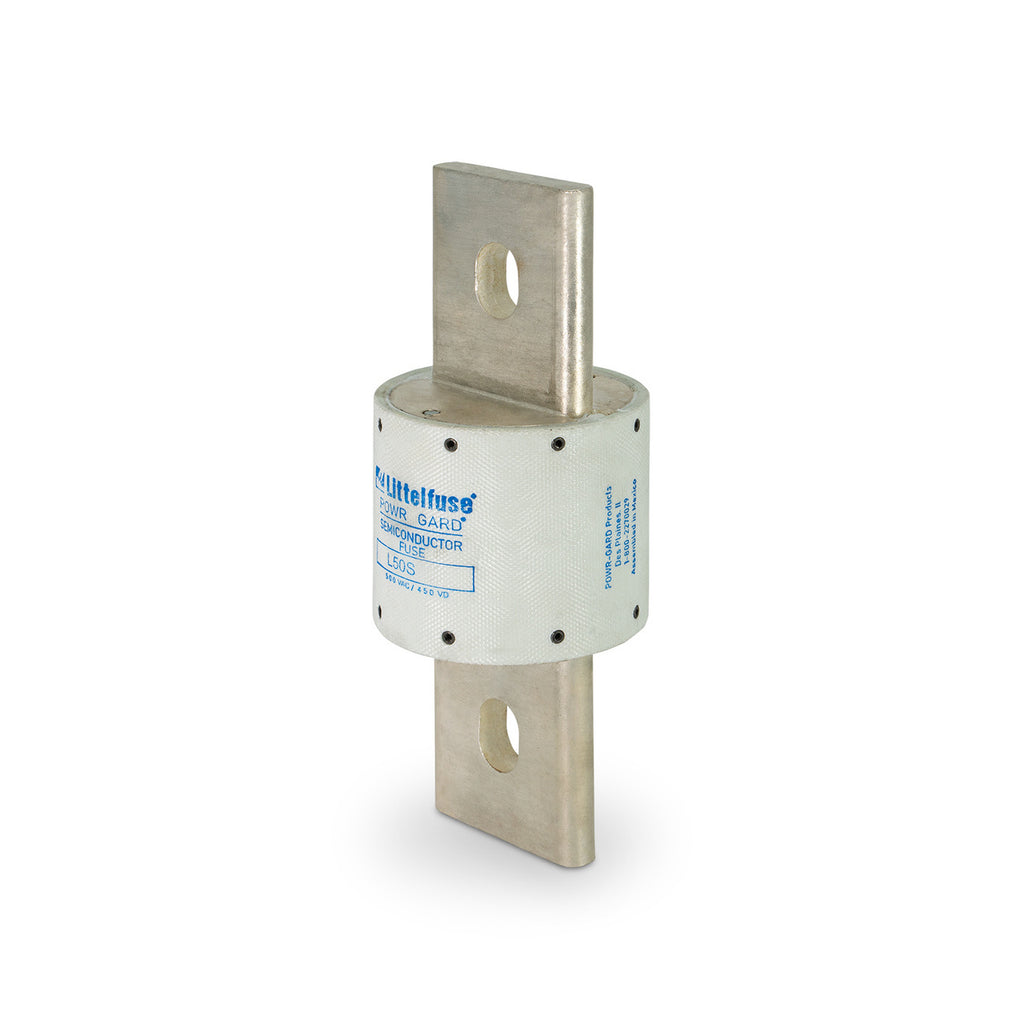

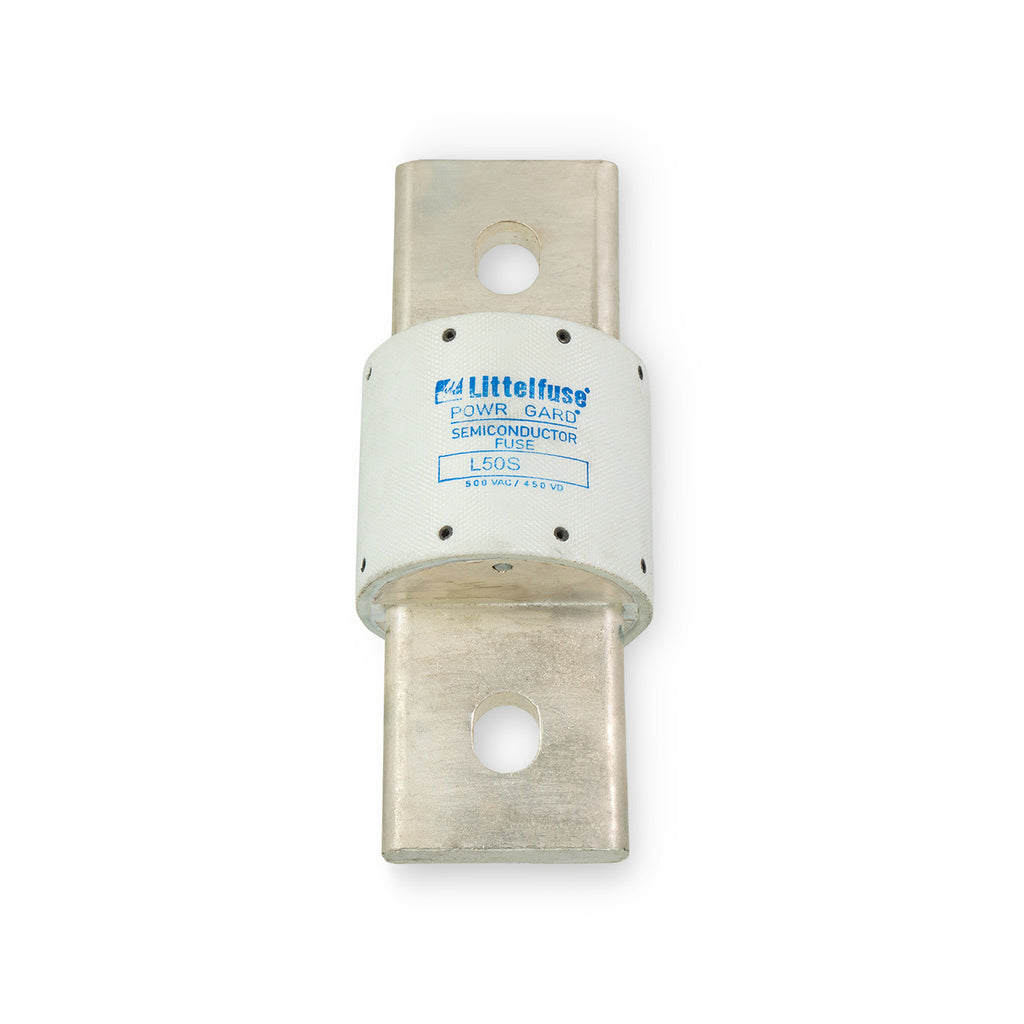

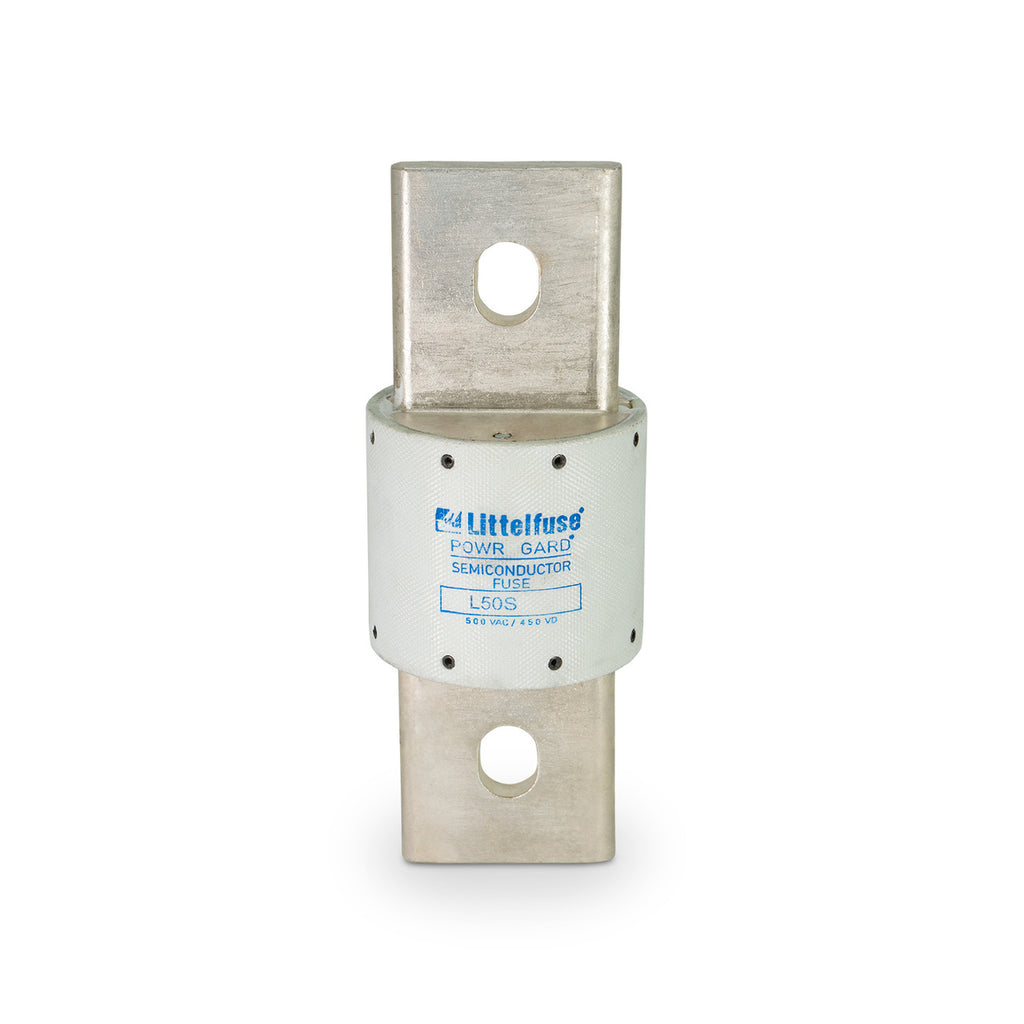

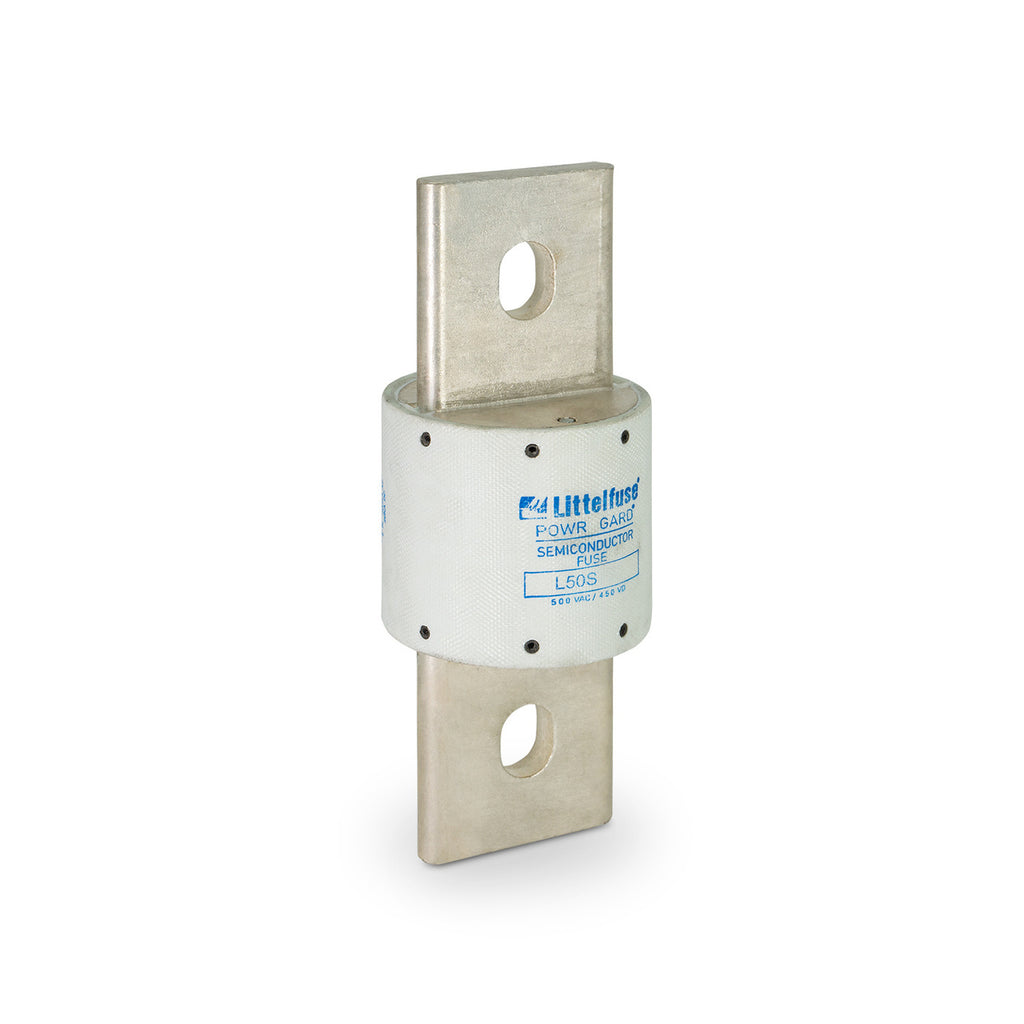

L50S700 is a Littelfuse high-speed semiconductor fuse designed for fast-acting circuit protection in industrial applications.L50S700 features a 700 ampere rating with voltage ratings of 500 VAC and 450 VDC, providing extremely current-limiting performance and low watt losses. It uses an M12 (1/2") mounting stud with a torque rating of 54 N·m (477.94 in-lb). This fuse is UL recognized and RoHS compliant, suitable for AC & DC drives, power converters, UPS, and soft starters. It offers a high interrupt rating of 200 kA at 500 VAC and 20 kA at 450 VDC, ensuring reliable protection for semiconductor devices.
- Key Specifications
- Amperage: 700 A
- Voltage Rating: 500 VAC / 450 VDC
- Interrupt Rating: 200 kA AC / 20 kA DC
- Mounting Type: M12 (1/2") stud
- Torque: 54 N·m (477.94 in-lb)
- Fuse Series: L50S
- Fuse Type: Very Fast Acting Semiconductor Fuse
- Certifications: UL Recognized, RoHS Compliant
- Application: AC & DC drives, UPS, power converters
- Part Number: L50S700
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : L50S Series – High-Speed Semiconductor Fuse
- Type : L50S Series – High-Speed Semiconductor Fuse
- Voltage : 500
- Amperage : 700
- AIC rating : 200kA@500V
- Diameter : 2.5
- Barrels : 1
- UPC : 07945885700
- GTIN : 00079458857009
- Weight : 2.4
