Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
L50S500

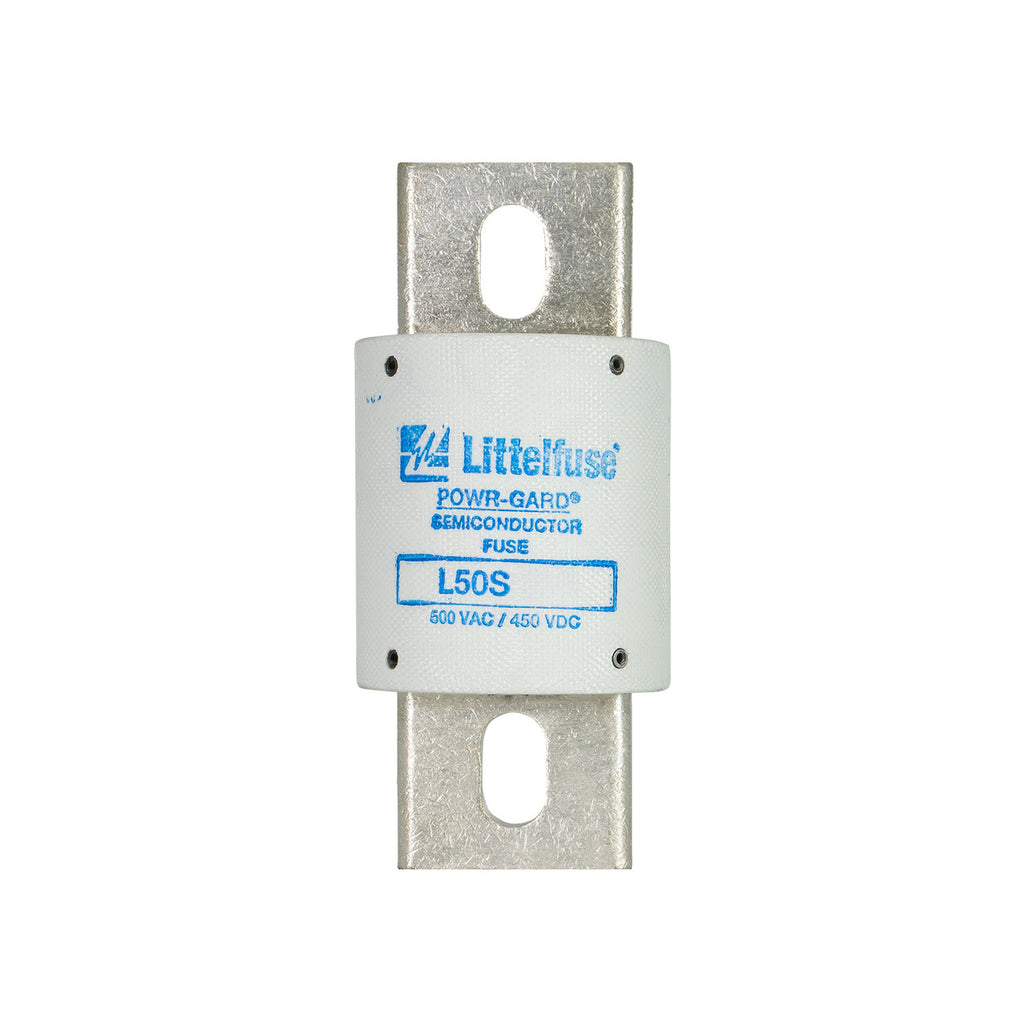

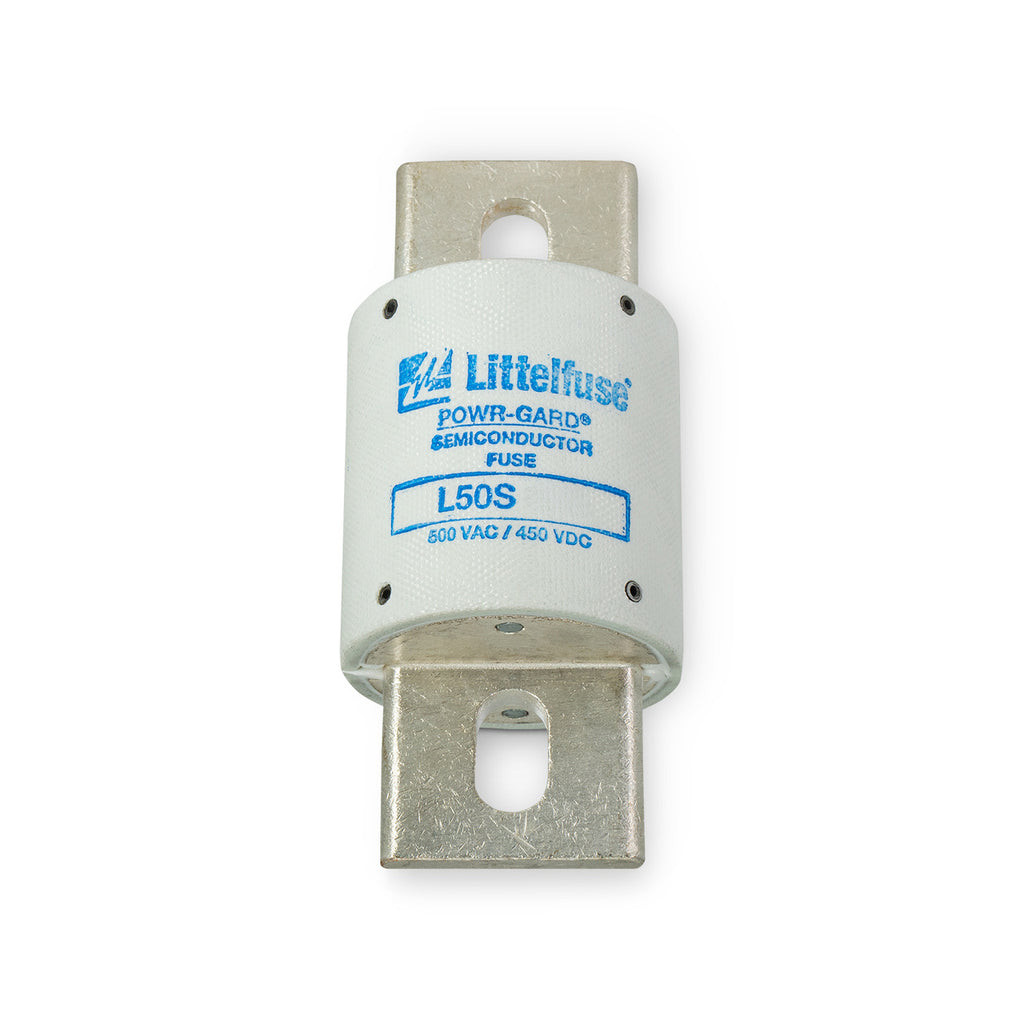

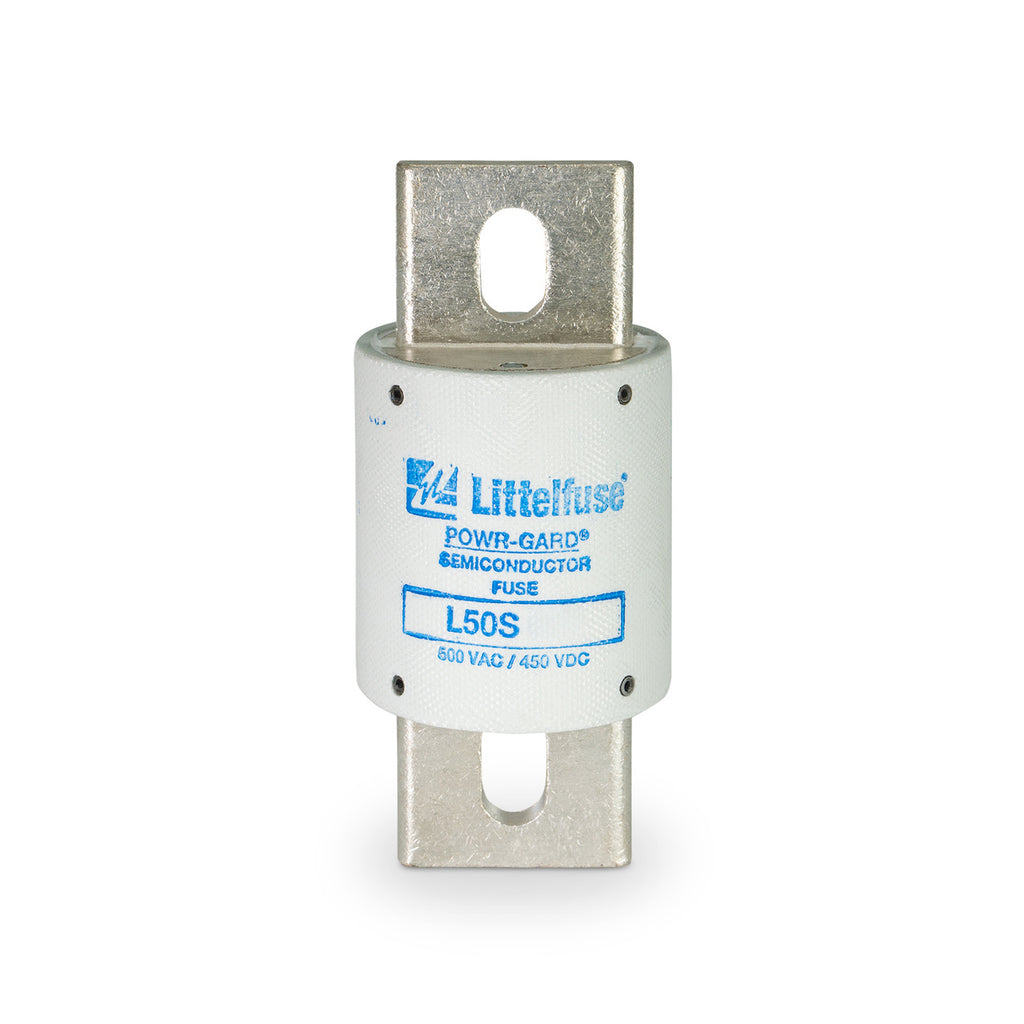

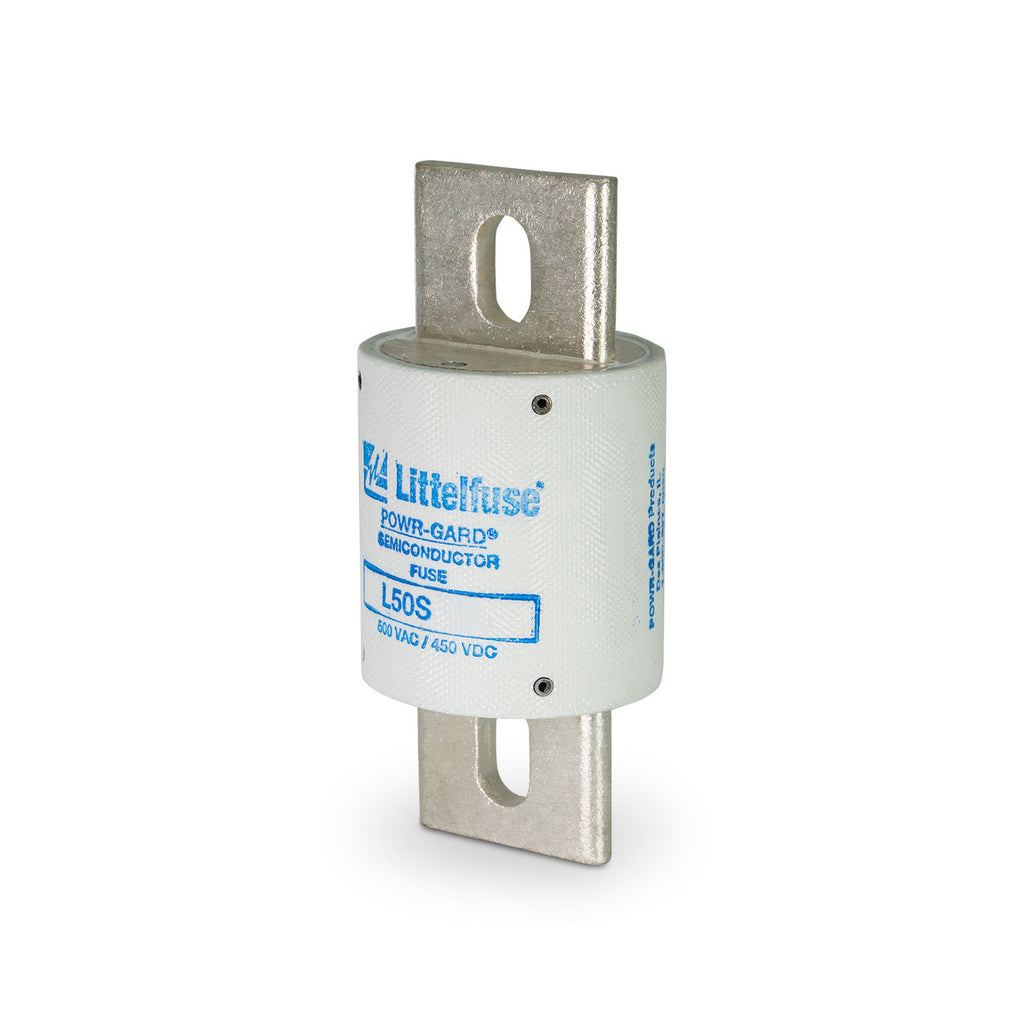

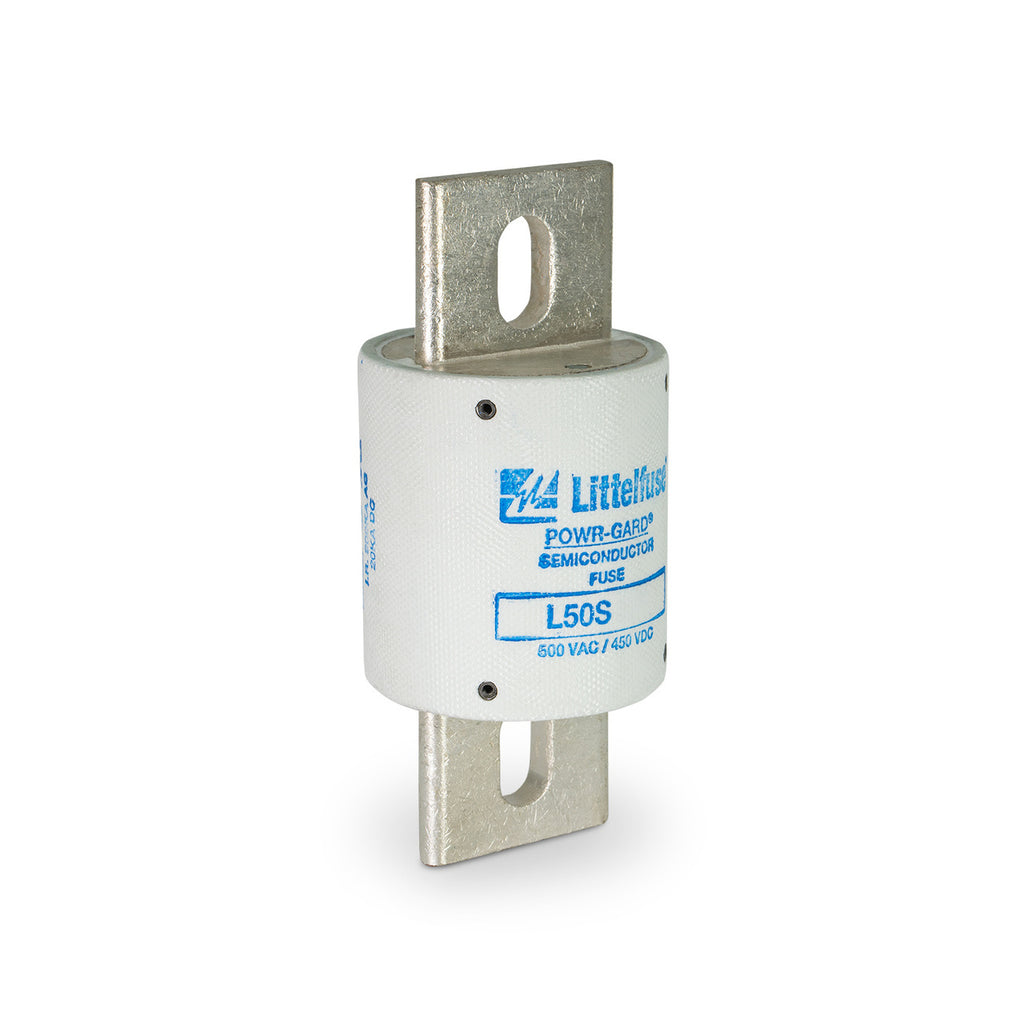

L50S500 is a high-speed semiconductor fuse designed for reliable protection in demanding electrical systems. This Littelfuse POWR-GARD® L50S series fuse features a very fast acting response and is engineered for fixed installations requiring high interrupt capacity. The L50S500 fuse is constructed with a fiberglass body and utilizes a bolt-down mounting style for secure installation. It is rated for 500A at 500V AC or 450V DC, making it suitable for protecting sensitive semiconductor equipment. The fuse provides a total clearing I2t of 112 A2s and a melting (pre-arc) I2t of 21 A2s, ensuring rapid response to overcurrent events. Its robust design supports an interrupt rating of 200kA at 500V AC and 20kA at 450V DC.
- Part Number: L50S500
- Manufacturer: Littelfuse
- Series: POWR-GARD® L50S
- Amperage Rating: 500A
- Voltage Rating: 500V AC / 450V DC
- Interrupt Rating: 200kA AC / 20kA DC
- Mounting Type: Bolt Down
- Fuse Type: High-Speed Semiconductor
- Response: Very Fast Acting
- Material: Fiberglass
- Watts Loss at 100% Rated Current: 85W
- Watts Loss at 80% Rated Current: 54W
Specifications
- Part Number: L50S500
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : L50S Series – High-Speed Semiconductor Fuse
- Type : L50S Series – High-Speed Semiconductor Fuse
- Voltage : 500
- Amperage : 500
- AIC rating : 200kA@500V
- Diameter : 0.81
- Barrels : 1
Product Data
- UPC : 07945885500
- GTIN : 00079458855005
- Weight : 1.14
