Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

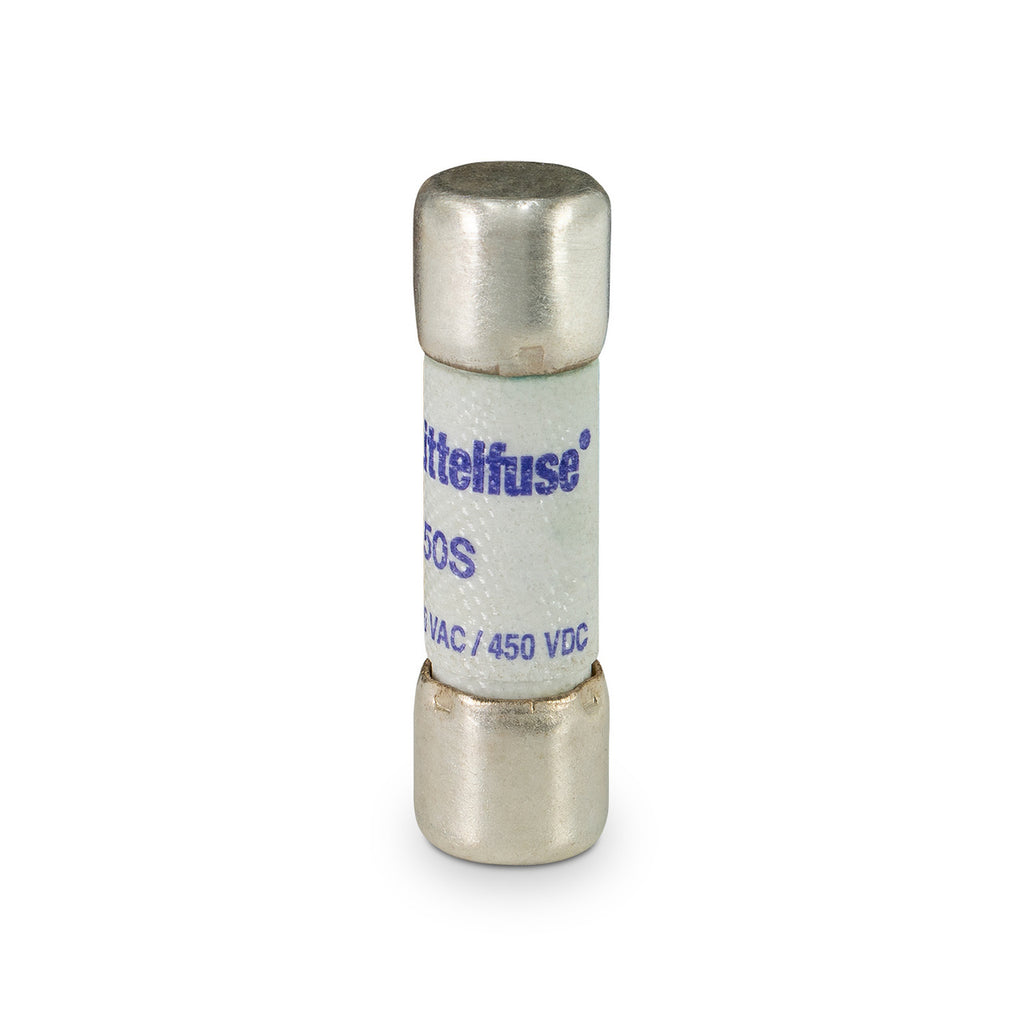

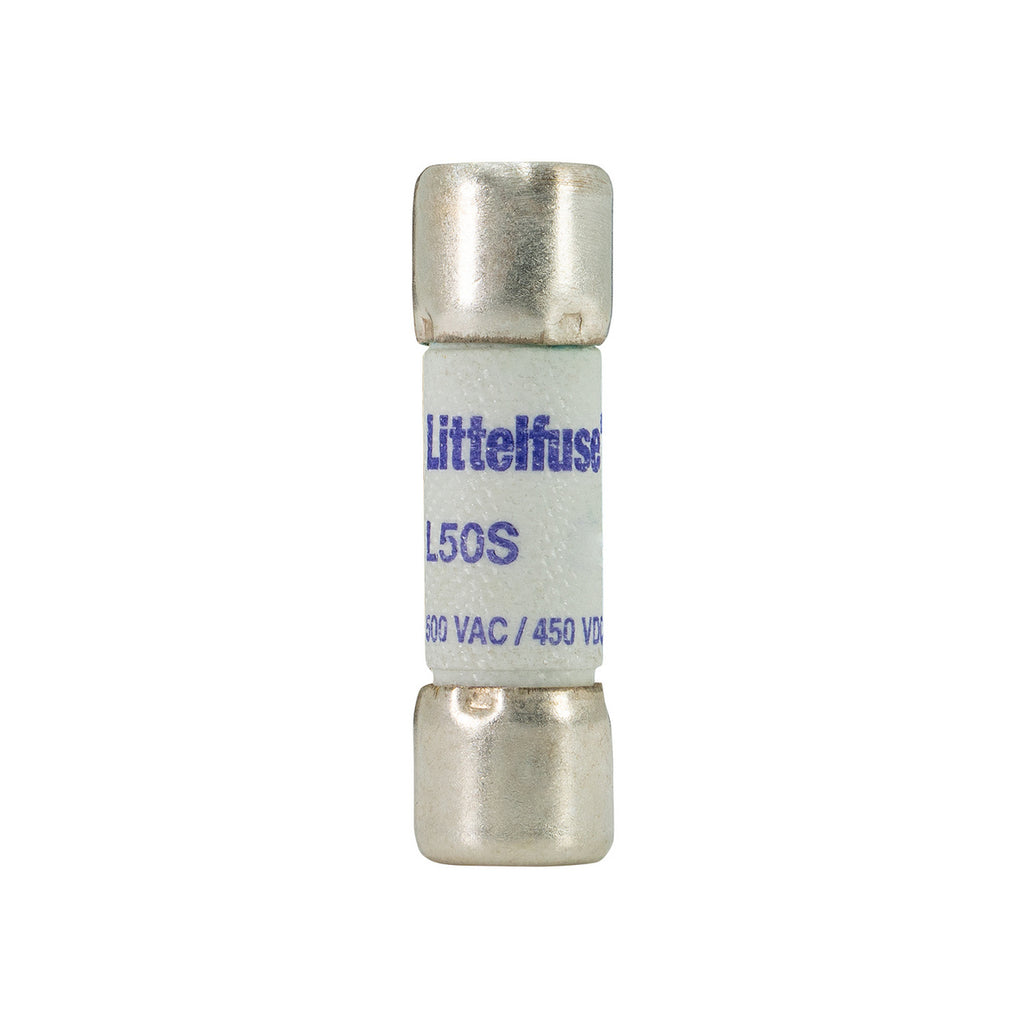

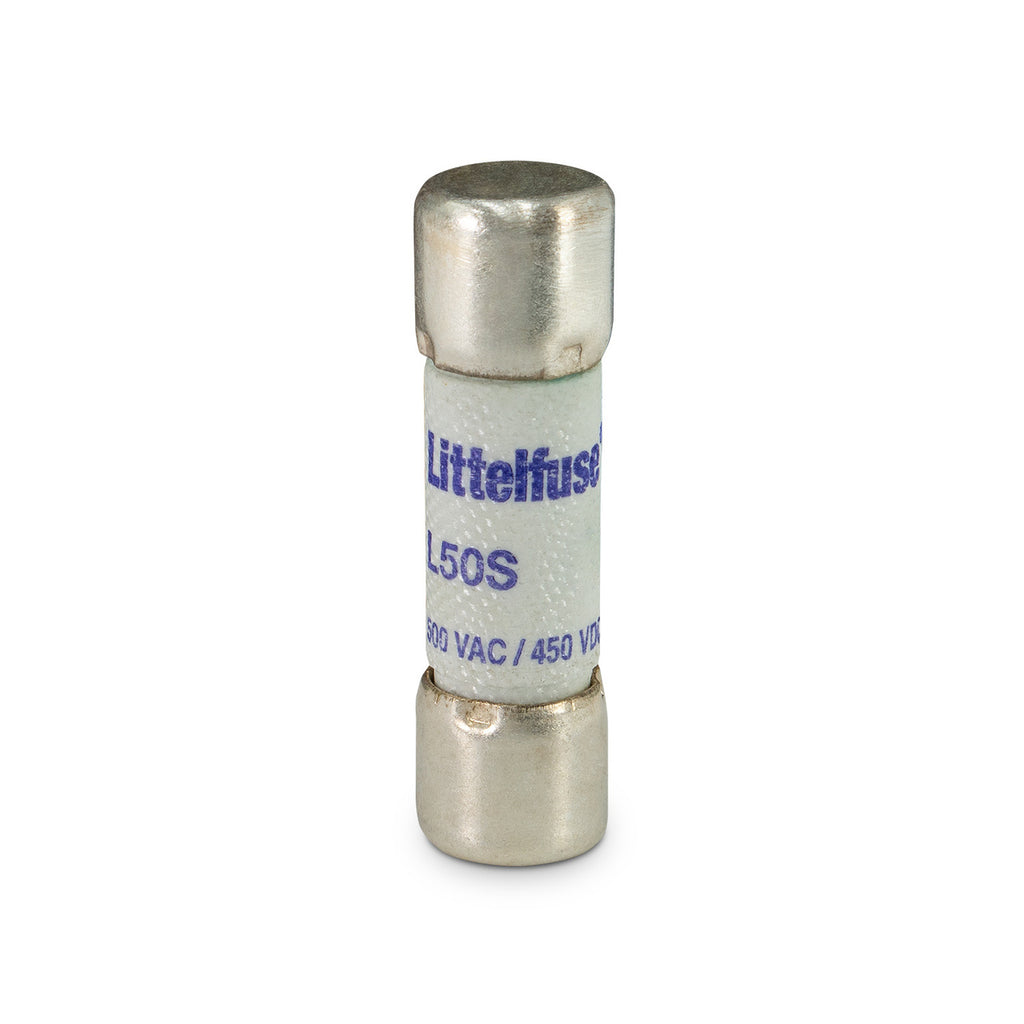

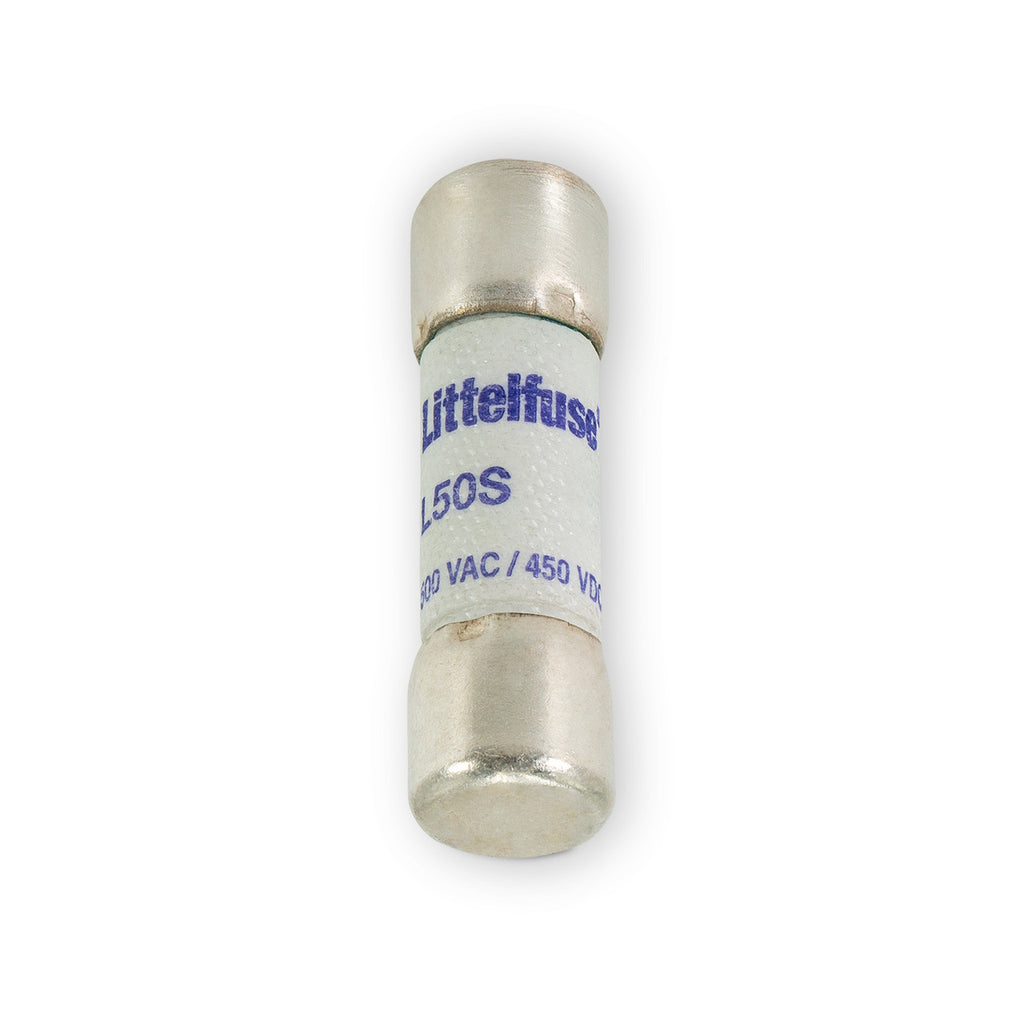

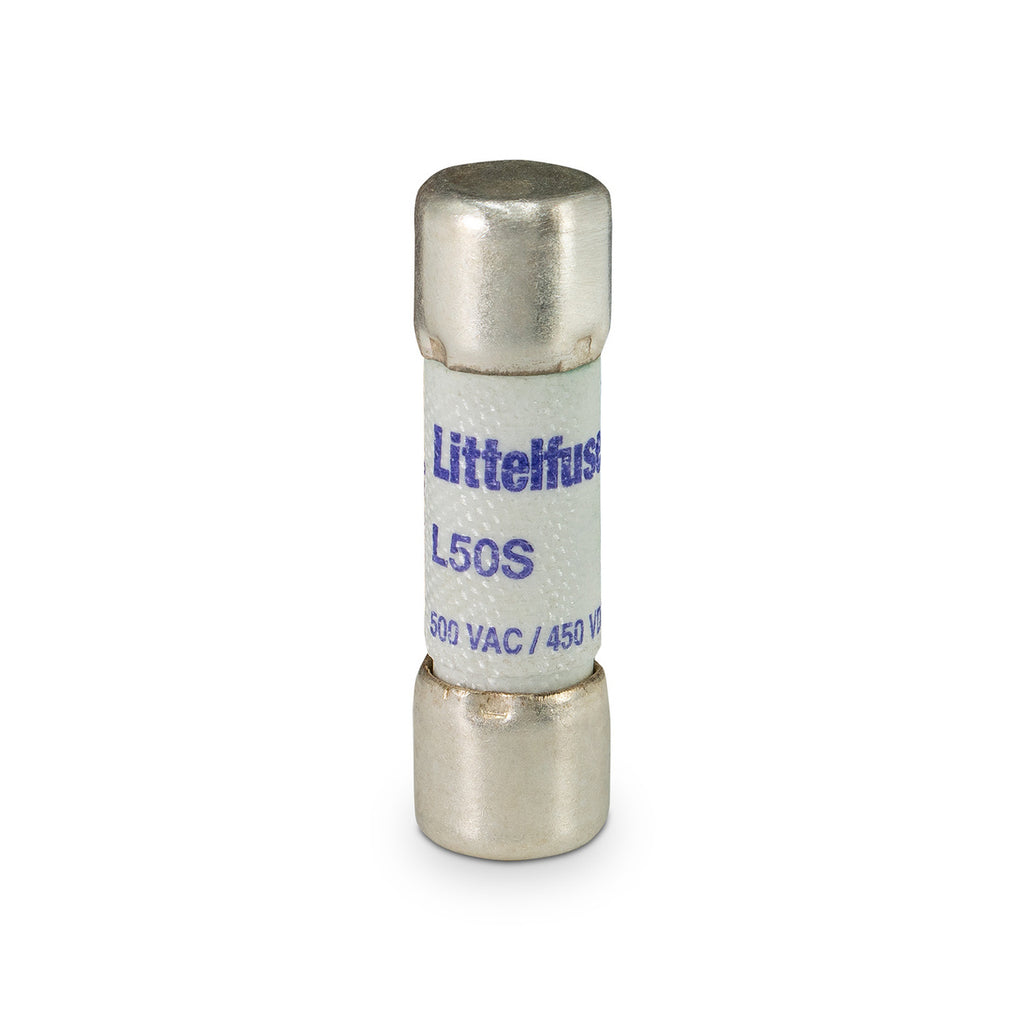

L50S020
L50S020 is a Littelfuse high-speed semiconductor fuse designed for protecting sensitive electronic equipment with fast-acting current limiting.
This fuse features a 20 ampere rating, 500 volts AC and 450 volts DC voltage rating, and a high interrupt rating of 200,000 amps AC and 20,000 amps DC. It has a traditional round body style with stud mounting, optimized for fixed installations in power converters, UPS, soft starters, and AC/DC drives. The fuse is UL recognized and RoHS compliant, ensuring reliable and safe operation in demanding industrial applications.
- Key Specifications
- Amperage: 20 A
- Voltage Rating: 500 V AC, 450 V DC
- Interrupt Rating: 200 kA AC, 20 kA DC
- Speed: Very Fast Acting
- Mounting Type: Stud
- Body Style: Traditional Round
- Certifications: UL Recognized, RoHS Compliant
- Diameter: 9/16 inch
- Length: Approximately 2 inches
- Application: Semiconductor protection, AC/DC drives, UPS, power converters
- Part Number: L50S020
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : L50S Series – High-Speed Semiconductor Fuse
- Type : L50S Series – High-Speed Semiconductor Fuse
- Voltage : 500
- Amperage : 20
- AIC rating : 200kA@500V
- Diameter : 1.5
- Barrels : 1
- UPC : 07945885020
- GTIN : 00079458850208
- Weight : 0.08
