Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
L25S150

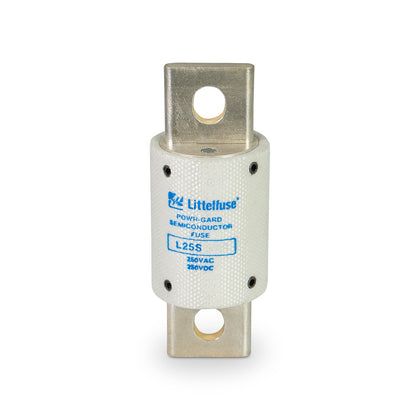

L25S150 is a Littelfuse POWR-GARD L25S Series very fast acting high speed semiconductor fuse designed for protection of power semiconductor devices in industrial applications. This fuse provides reliable circuit protection with a 150A current rating and 250VAC/250VDC voltage rating, suitable for demanding environments. The L25S150 features a bolted tag mounting style for secure installation and is engineered for high-speed interruption to protect sensitive semiconductor equipment. It is constructed with a melamine body and silver-plated copper alloy caps for durability and performance. The fuse is UL and CSA recognized, ensuring compliance with major safety standards.
- Amperage Rating: 150A
- Voltage Rating: 250VAC / 250VDC
- Interrupting Rating: 200kA AC / 20kA DC
- Mounting Type: Bolted Tag
- Series: L25S
- Protection Type: Semiconductor
- Body Material: Melamine
- Caps Material: Copper Alloy (Silver Plated)
- Approvals: UL Recognized, CSA Recognized
- Operating Temperature: -55°C to +125°C
- Storage Temperature: Up to 35°C, <65% Relative Humidity
- Environmental: RoHS Compliant
Specifications
- Part Number: L25S150
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : L25S Series – High-Speed Semiconductor Fuse
- Type : L25S Series – High-Speed Semiconductor Fuse
- Voltage : 250
- Amperage : 150
- AIC rating : 200kA@250V
- Diameter : 1.22
- Barrels : 1
Product Data
- UPC : 07945884150
- GTIN : 00079458841503
- Weight : 0.6
