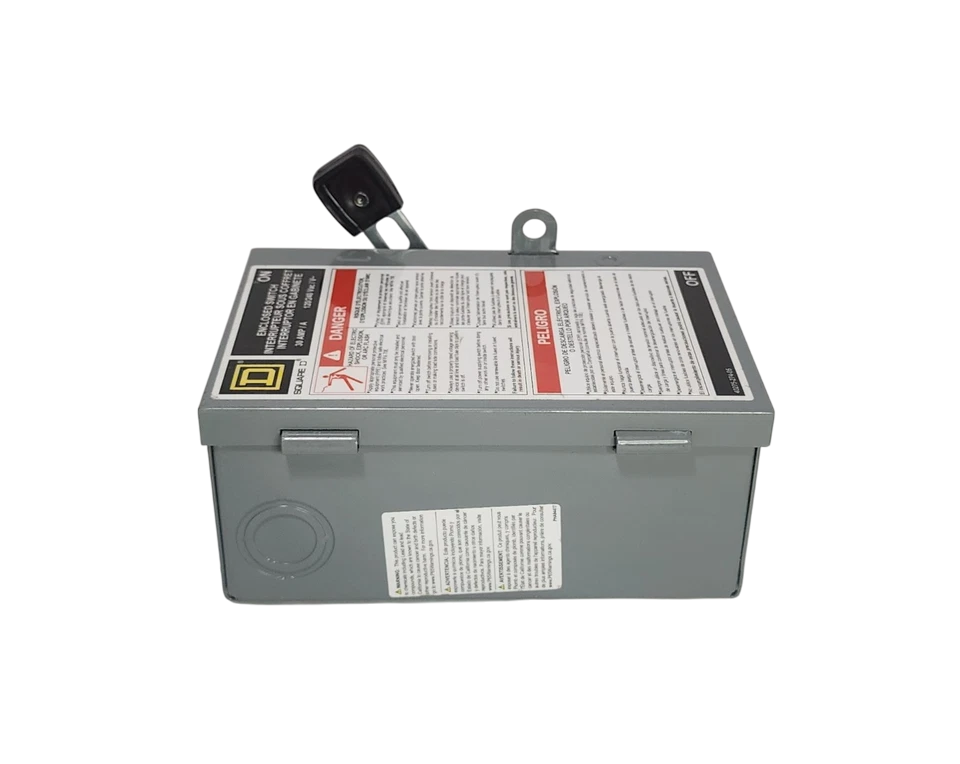

L211N - Schneider Electric 30A 2-Pole 120/240V Light Duty Fusible Safety Switch NEMA 1

L211N

L211N is a Schneider Electric light duty fusible safety switch rated for 30 amps and 2 poles, designed for indoor use with NEMA 1 enclosure.This switch provides reliable disconnecting means for residential and light commercial applications. It features a 30 ampere rating, 2-pole configuration, and supports 120/240 volts AC. The device includes a factory-installed neutral and is fusible for added circuit protection. Its NEMA 1 enclosure is suitable for indoor mounting.

Key Specifications
• Amperage: 30 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Indoor, NEMA 1 enclosure
• Interrupt Rating: Light Duty
• Fusible: Yes
• Neutral: Factory installed
• Series/Frame: Square D L211N
• Trip Unit: Fusible
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: L211N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Light Duty
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Wire : 3
• Configuration : Single
• Coil Voltage Maximum : 480
• Coil Voltage Minimum : 480
• Switch Style : Fusible
• Nema Rating : 1
• Protection : Solid State
• Compatible Frames : NSX

Product Data

• UPC : 078590109052
• Country of Origin : Mexico
• Dimensions : 7.63 in (193.80 mm) x 6.13 in (155.70 mm) x 4 in (101.6 mm) (Height x Width x Depth)
• Weight : 3.45
• Certification : UL Listed
