Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
L100WS2M2

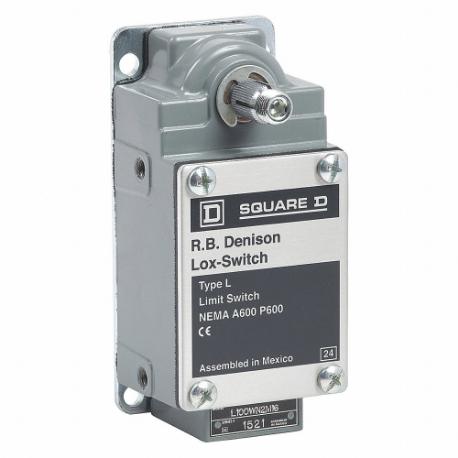

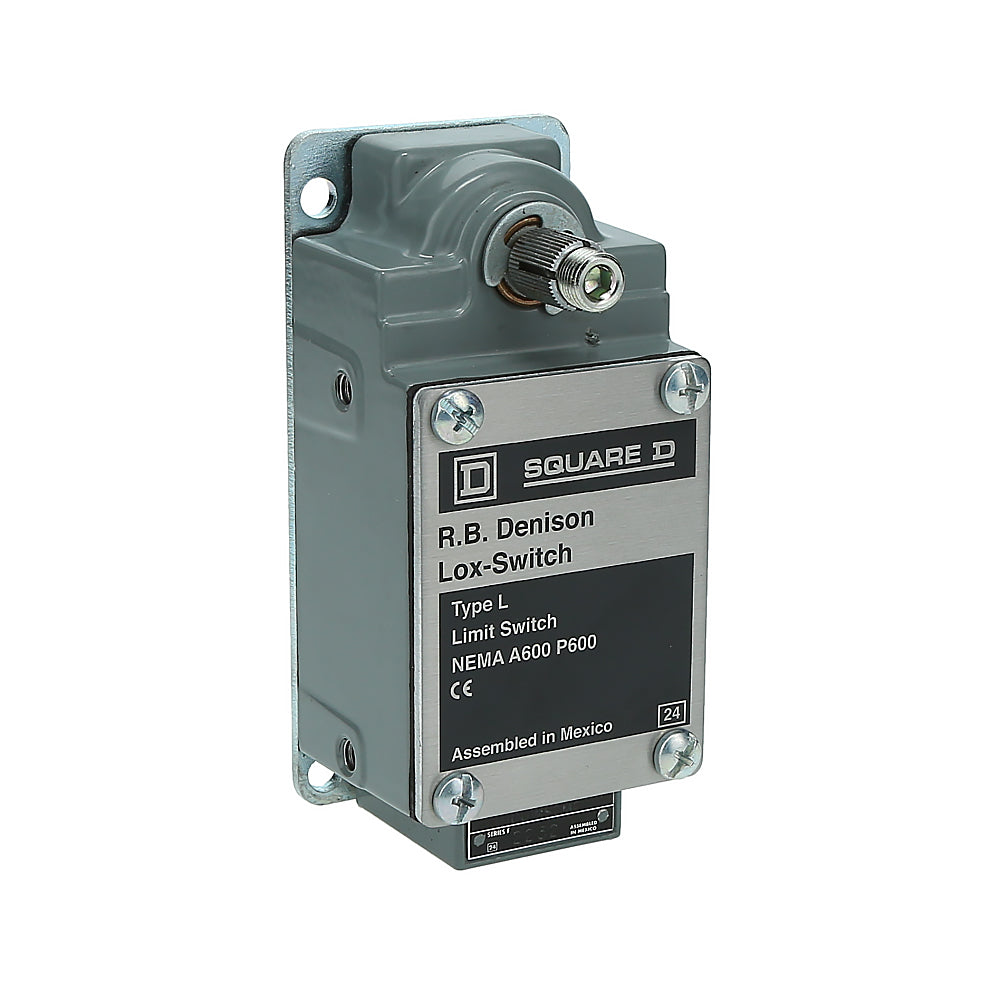

L100WS2M2 is a severe duty limit switch from Telemecanique designed for mill and industrial applications. L100WS2M2 features a rotary head with no lever, fixed body, and spring return operator without an operating lever. It supports a 10 ampere rating at 600 volts AC and includes 2 contact sequences with 1NC/1NO configuration. L100WS2M2 is built with a cast aluminum body and style 2 base plate, offering shock resistance of 30 gn for 9 ms and vibration resistance of 10 gn from 10 to 55 Hz, conforming to IEC 60068 standards.
- Amperage: 10A
- Voltage: 600V AC
- Poles/Contacts: 2 contact sequence (1NC/1NO)
- Mounting Type: Fixed body, style 2 base plate
- Actuator Type: Rotary head, spring return without lever
- Interrupt Rating: 10A @ 600V AC
- Series/Frame: L100/300, L525 Severe Duty Mill
- Shock Resistance: 30 gn for 9 ms (IEC 60068-2-27)
- Vibration Resistance: 10 gn, 10-55 Hz (IEC 60068-2-6)
- Body Material: Cast aluminum
- Operating Torque: Specified in datasheet
- Country of Origin: Mexico
Specifications
- Part Number: L100WS2M2
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Limit Switch
- Family : L100
- Voltage : 600 600
Product Data
- UPC : 785901161646
- GTIN : 00785901161646
- Country of Origin : Mexico
- Dimensions : 2.25 in
- Weight : 1.5
- Certification : 2.5 kV AC for 1 minute CE || 2.2 kV AC for 1 minute UL || 2.64 kV AC for 1 minute CSA
