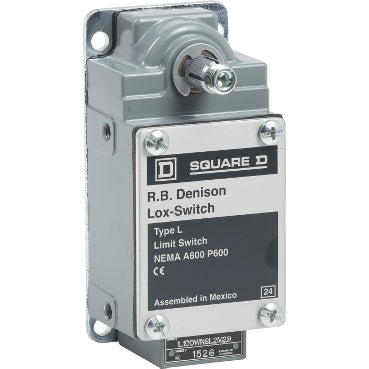

L100WNSL2M29 - Telemecanique 600V 10A Limit Switch Rotary 2NO Cast Aluminum Type L

L100WNSL2M29

L100WNSL2M29 is a Telemecanique severe duty limit switch designed for industrial applications requiring reliable rotary actuation.This limit switch features a rotary actuator with 2 normally open (2NO) contacts, rated for 600 volts and 10 amps. It has a cast aluminum housing for durability and is part of the L100 series. The switch offers a spring return operator type and screw clamp terminals for secure wiring. It meets shock resistance of 30 gn for 9 ms and vibration resistance of 10 gn (10-55 Hz), conforming to IEC standards. The device is suitable for harsh environments with IP67 protection.

Key Specifications
• Voltage Rating: 600 V AC
• Current Rating: 10 A
• Contact Configuration: 2 Normally Open (2NO)
• Actuator Type: Rotary
• Housing Material: Cast Aluminum
• Series: L100
• Operator Type: Spring Return
• Terminal Type: Screw Clamp
• Shock Resistance: 30 gn for 9 ms (IEC 60068-2-27)
• Vibration Resistance: 10 gn, 10-55 Hz (IEC 60068-2-6)
• Degree of Protection: IP67
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: L100WNSL2M29
• Brand : Telemecanique
• Category : Sensors
• Item Subcategory : Limit Switch
• Family : L100
• Voltage : 600 600



Product Data

• UPC : 785901161530
• GTIN : 00785901000000
• Weight : 1
