Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
KWS-R-90

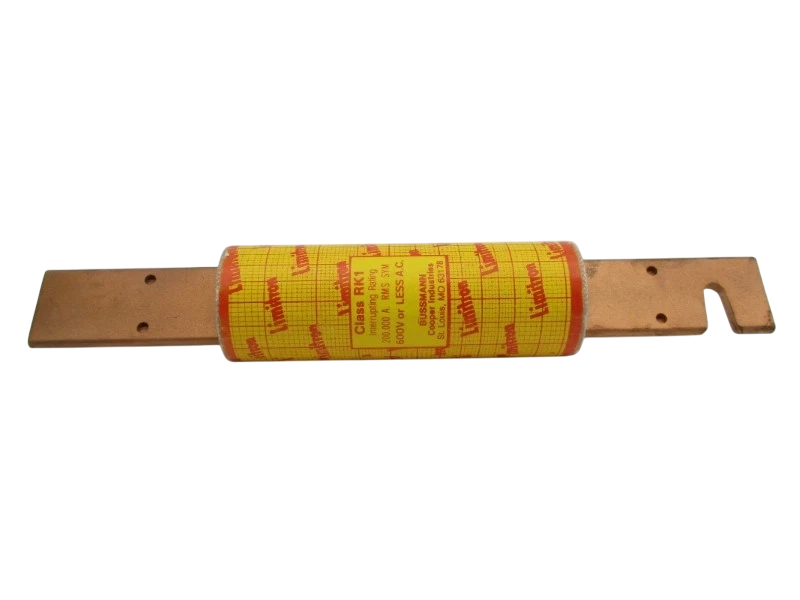

KWS-R-90 is an Eaton Bussmann series Class RK1 fast-acting, current-limiting fuse rated for 90 amperes at 600 volts AC/DC with a 200 kA interrupting rating. This dual voltage rated fuse is designed for branch circuit protection in industrial and commercial electrical systems, offering reliable overcurrent protection with fast response characteristics. The rejection style blade-end connection ensures secure mounting in standard fuse holders while maintaining consistent performance across AC and DC applications. Key Specifications
- Amperage Rating: 90 A
- Voltage Rating: 600 Vac/Vdc
- Interrupt Rating: 200 kA at 600 V
- Class: Class RK1
- Fuse Type: Fast-acting, current-limiting
- Connection Style: Blade-end
- Indicator: Non-indicating
- Compliances: CE Marked
Specifications
- Part Number: KWS-R-90
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : LIMITRON
- Type : KWS-R
- Voltage : 600
- Amperage : 90
- AIC rating : 200kA@600V
- Diameter : 1.34
- Class Rating : RK1
- Barrels : 1
Product Data
- Weight : 7
