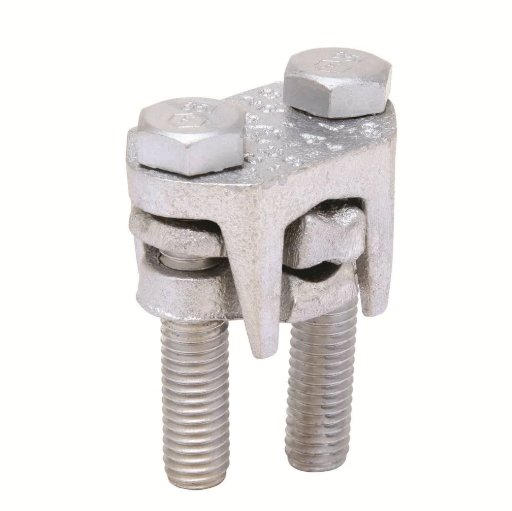

KVSU31 - Burndy Mechanical Connector with Spacer Bar, 250-350 kcmil, 1/2 in Bolt, Tin-Plated Copper Alloy

KVSU31

This compact connector features a tin-plated high strength copper alloy body with tin-plated silicon bronze hardware. It supports 250 to 350 kcmil run conductors and 6 AWG solid to 350 kcmil tap conductors. The spacer bar separates dissimilar conductors and provides a long contact length. It includes a neoprene ring to prevent loss of the shorter bolt during installation and a longer peened bolt that permits swivel action for easier installation. The connector requires a tightening torque of 325 in-lb using a 3/4-inch wrench.

Key Specifications
• Part Number: KVSU31
• Manufacturer: Burndy
• Material: Tin-plated copper alloy connector with tin-plated silicon bronze hardware
• Conductor Range: 250-350 kcmil run, 6 AWG solid to 350 kcmil tap
• Bolt Size: 1/2 inch
• Tightening Torque: 325 in-lb
• Wrench Size: 3/4 inch cross flats
• Spacer Bar: Separates dissimilar conductors, provides long contact length
• Neoprene Ring: Prevents loss of shorter bolt during installation
• Installation Feature: Longer peened bolt allows swivel action
• Recommended Use: Heavy duty connections

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: KVSU31
• Manufacturer : Burndy
• Brand : Burndy
• Item Subcategory : Mechanical Connector



Product Data

• UPC : 781810082553
• GTIN : 00781810082553
• Country of Origin : Mexico
• Dimensions : Height 2-5/8 inches X Width 2-1/8 inches X Length 1-3/8 inches
• Weight : 0.5
