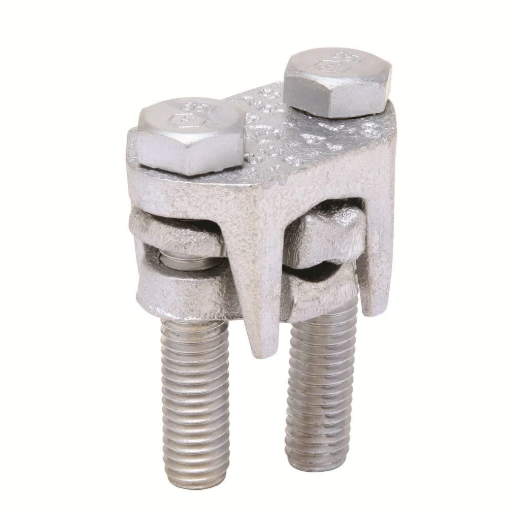

KVSU28 - Burndy Compact 2-Bolt Mechanical Connector with Spacer Bar for 6 to 4/0 AWG Copper and Aluminum Conductors

KVSU28

KVSU28 is a compact, tin-plated high strength copper alloy mechanical connector with a spacer bar designed for heavy duty electrical connections.This two-piece connector features tin-plated silicon bronze hardware and a spacer bar that separates dissimilar conductors, providing a long contact length for reliable performance. It is recommended for use with copper, aluminum, ACSR, AAAC, and 5005 conductors ranging from 6 AWG to 4/0 AWG. The connector includes a neoprene ring to prevent loss of the shorter bolt during installation and allows swivel action for easier tightening. Installation torque is 250 in-lb with a 9/16 inch wrench size.

Key Specifications
• Material: Tin-plated high strength copper alloy with tin-plated silicon bronze hardware
• Conductor Range: 6 AWG to 4/0 AWG copper and aluminum, ACSR, AAAC, 5005
• Type: 2-Bolt Mechanical Connector with Spacer Bar
• Installation Torque: 250 in-lb
• Wrench Size: 9/16 inch cross flats
• Dimensions: Height 2.5 in (63.5 mm), Width 1.67 in (44 mm)
• Spacer Bar: Separates dissimilar conductors for long contact length
• Neoprene Ring: Prevents loss of shorter bolt during installation
• Recommended Application: Heavy duty electrical connections
• RoHS Compliant: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KVSU28
• Manufacturer : Burndy
• Brand : Burndy
• Item Subcategory : Universal OKLIP Mechanical Connector

Product Data

• UPC : 781810081808
• GTIN : 007818100818088
• Country of Origin : Mexico
• Dimensions : Width 1.67 inches X Length 1.04 inches X Height 2.50 inches
• Weight : 0.38 lb
