Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

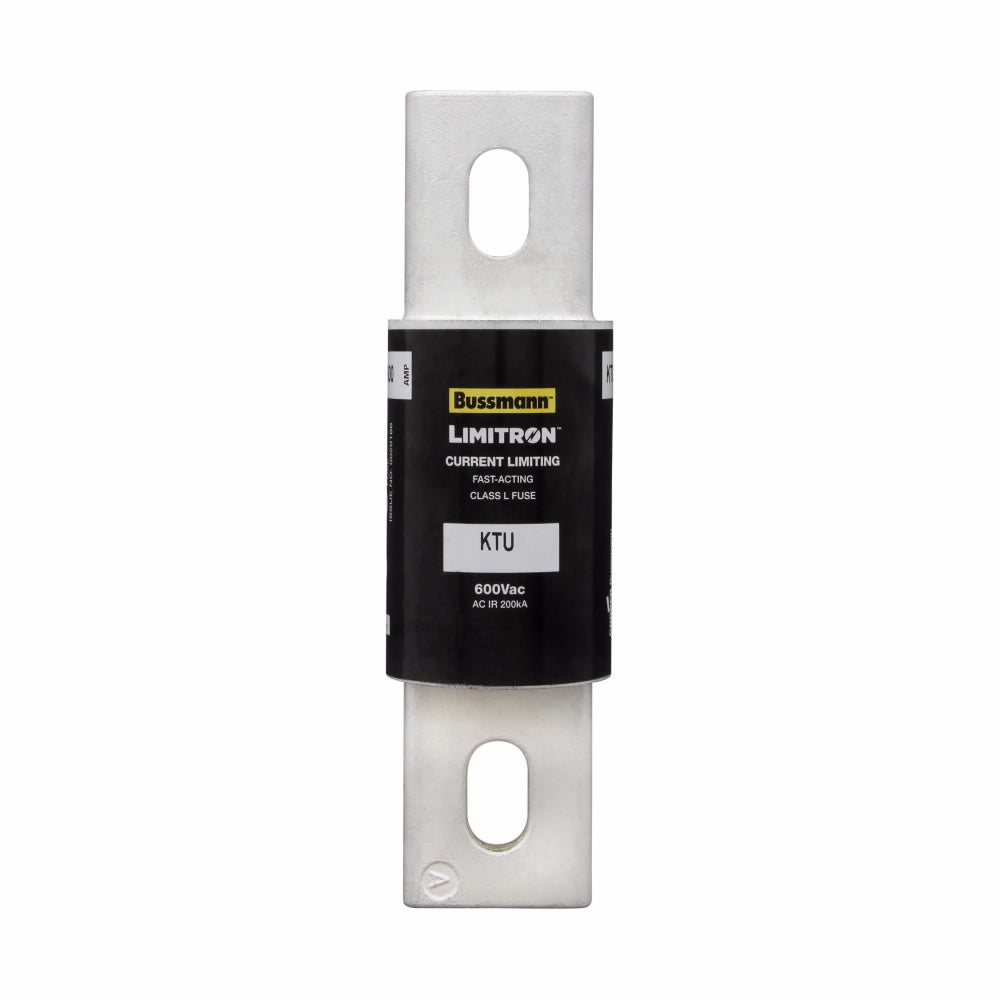

KTU-700
KTU-700 is an Eaton Bussmann Series Class L fast-acting, current-limiting fuse designed for high-amperage circuit protection in industrial and commercial applications.
The KTU-700 delivers superior current limitation with a 200kA interrupting rating at 600Vac. Featuring 99.9% pure silver links, this fuse minimizes watt loss and operating temperature during normal current levels while reducing total clearing I2t fault energy. The bolted blade end connection provides secure mounting in compatible fuse blocks, and the non-indicating design offers reliable protection without visual status indication.
- Amperage Rating: 700A
- Voltage: 600Vac
- Interrupting Rating: 200kA at 600Vac RMS Symmetrical
- Class: Class L
- Connection Type: Bolted blade end x bolted blade end
- Fuse Link Material: 99.9% pure silver
- Indicator Type: Non-indicating
- UL Listed: Standard 248-10, Class L, Guide JDDZ, File E4273
- CSA Certified: C22.2 No. 248.10
- CE Marked
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KTU-700
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KTU
- Voltage : 600
- Amperage : 700
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2.4
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 051712613033
- GTIN : 00051712613033
- Dimensions : 8.63 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 3.8
