KTU-650 - Eaton Bussmann Class L Fast-Acting Current-Limiting Fuse 650A 600VAC

KTU-650

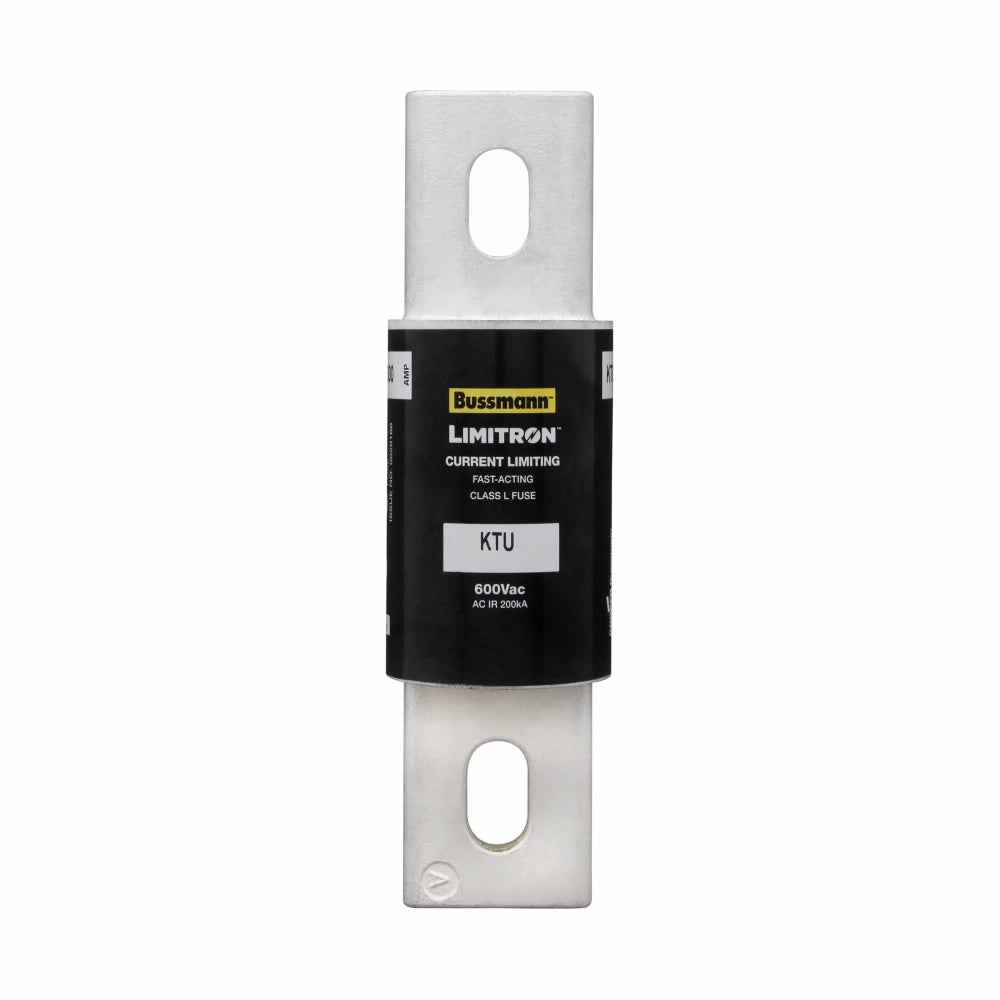

KTU-650 is an Eaton Bussmann series Class L fast-acting, current-limiting fuse designed for large distribution switchboards and power panelboards. This cartridge blade fuse provides reliable circuit protection with a 200 kA interrupt rating at 600 VAC, making it ideal for critical industrial and commercial applications requiring specific current limitation. The fuse features 99.9% pure silver links that minimize watt loss, reduce operating temperature during normal current levels, and limit total clearing I2t fault energy.

• Current Rating: 650 Amps
• Voltage Rating: 600 VAC
• Fuse Type: Fast-Acting, Current-Limiting
• Interrupt Rating: 200 kA at 600 VAC RMS Symmetrical
• Body Style: Cartridge Blade Fuse
• Class: Class L
• Indicating Type: Non-Indicating
• End Bells: Silver-Plated
• Tube Material: Melamine Glass
• UL Listed: Standard 248-10, Guide JDDZ, File E4273
• CSA Certified: C22.2 No. 248.10

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTU-650
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 650
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 2.59
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 05171261307
• GTIN : 00051712613071
• Dimensions : 8.63 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
• Weight : 3.75
