Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

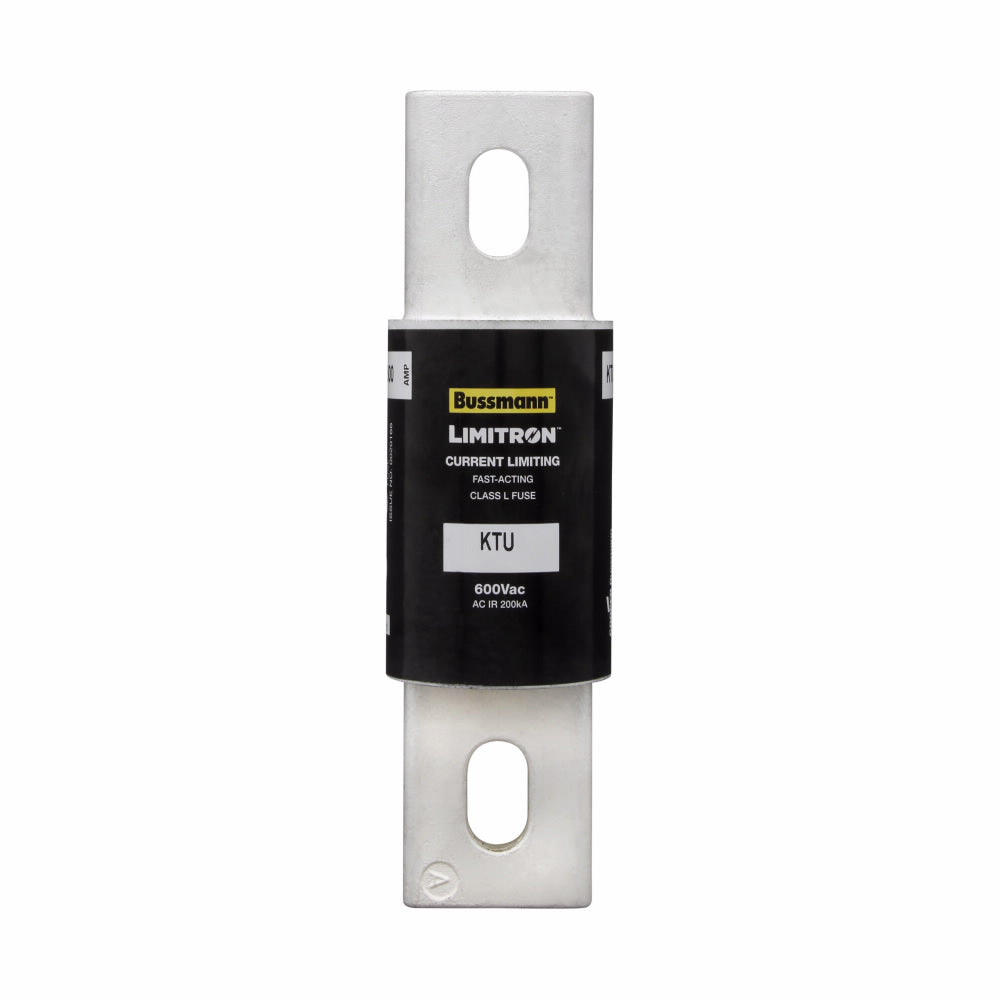

KTU-600
KTU-600 is a fast-acting, current-limiting Class L fuse designed for high-amperage branch circuit protection in industrial and commercial applications. This Eaton Bussmann series fuse provides reliable protection for electrical systems operating at 600V AC and up to 600A. The KTU-600 features a bladable, bolt-mount design for easy installation and secure connection. It is constructed with a glass melamine tube and silver-plated end bells for durability and optimal conductivity. This fuse is non-indicating and suitable for general-purpose copper link applications.
- Part Number: KTU-600
- Manufacturer: Eaton
- Series: Bussmann LIMITRON
- Current Rating: 600A
- Voltage Rating: 600V AC
- Interrupt Rating: 200kA
- Fuse Type: Class L, Fast-Acting, Current-Limiting
- Mounting Type: Bolt-Mount, Bladable
- Terminal Type: Silver-Plated End Bells
- Construction: Glass Melamine Tube
- Indication: Non-Indicating
- Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
Specifications
- Part Number: KTU-600
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KTU
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2.4
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 051712613057
- GTIN : 00051712613057
- Dimensions : 8.63 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 3.75
- Certification : UL, CSA, CE
