Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KTU-400

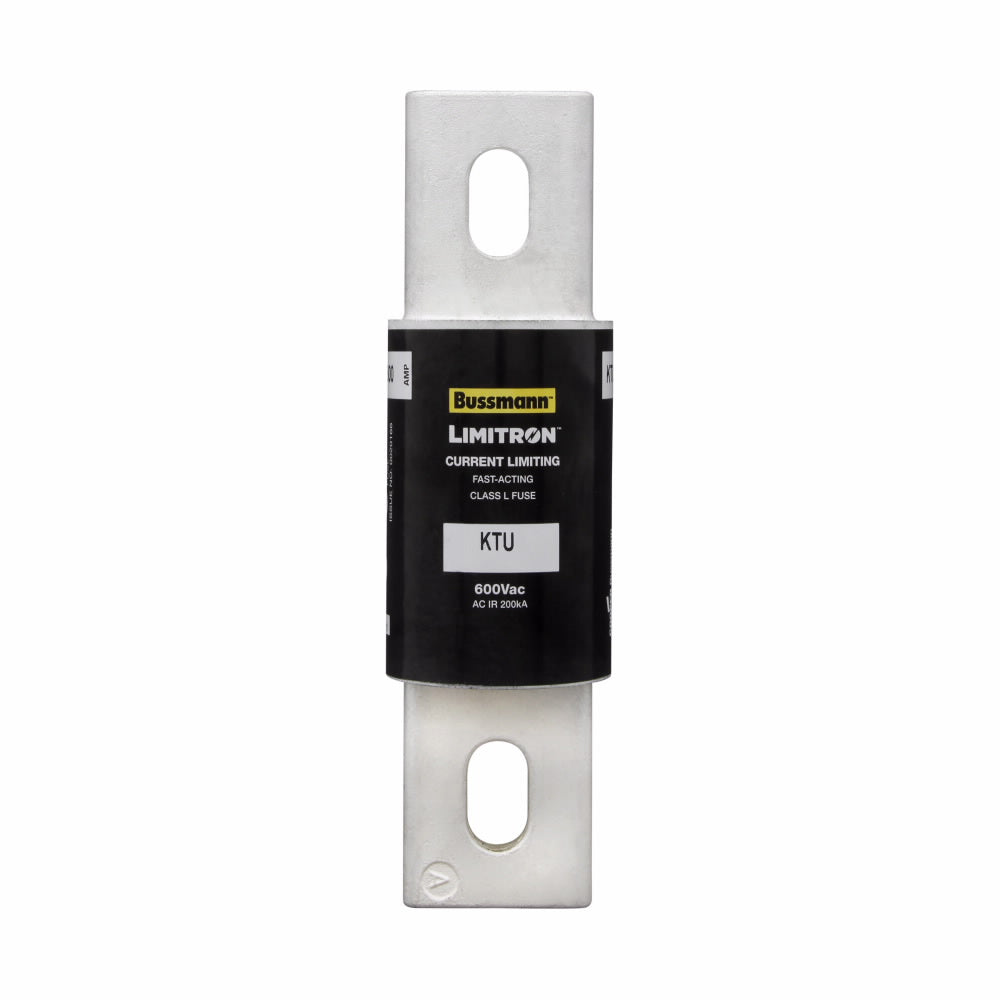

KTU-400 is an Eaton Bussmann series Limitron fast-acting Class L fuse rated for 400 amps and 600 volts AC.This fuse provides advanced current-limiting protection designed for large distribution switchboards and power panelboards. It features a 200kA interrupt rating and fast-acting operation to protect electrical systems from overloads and short circuits. The KTU-400 fuse is a single-pole device with a cartridge style mounting and complies with industry safety certifications.
- Key Specifications
- Amperage: 400A
- Voltage Rating: 600Vac
- Interrupt Rating: 200kA RMS Symmetrical
- Fuse Type: Limitron Fast-Acting
- Series: Bussmann KTU Class L
- Poles: 1
- Mounting Type: Cartridge
- Applications: Large Distribution Switchboards, Power Panelboards
- Length/Depth: 8.63 inches
- Certifications: Industry Standard Compliant
Specifications
- Part Number: KTU-400
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KTU
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2.4
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 05171261302
- GTIN : 00051712613026
- Dimensions : 8.63 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 3.75
