Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KTU-3000

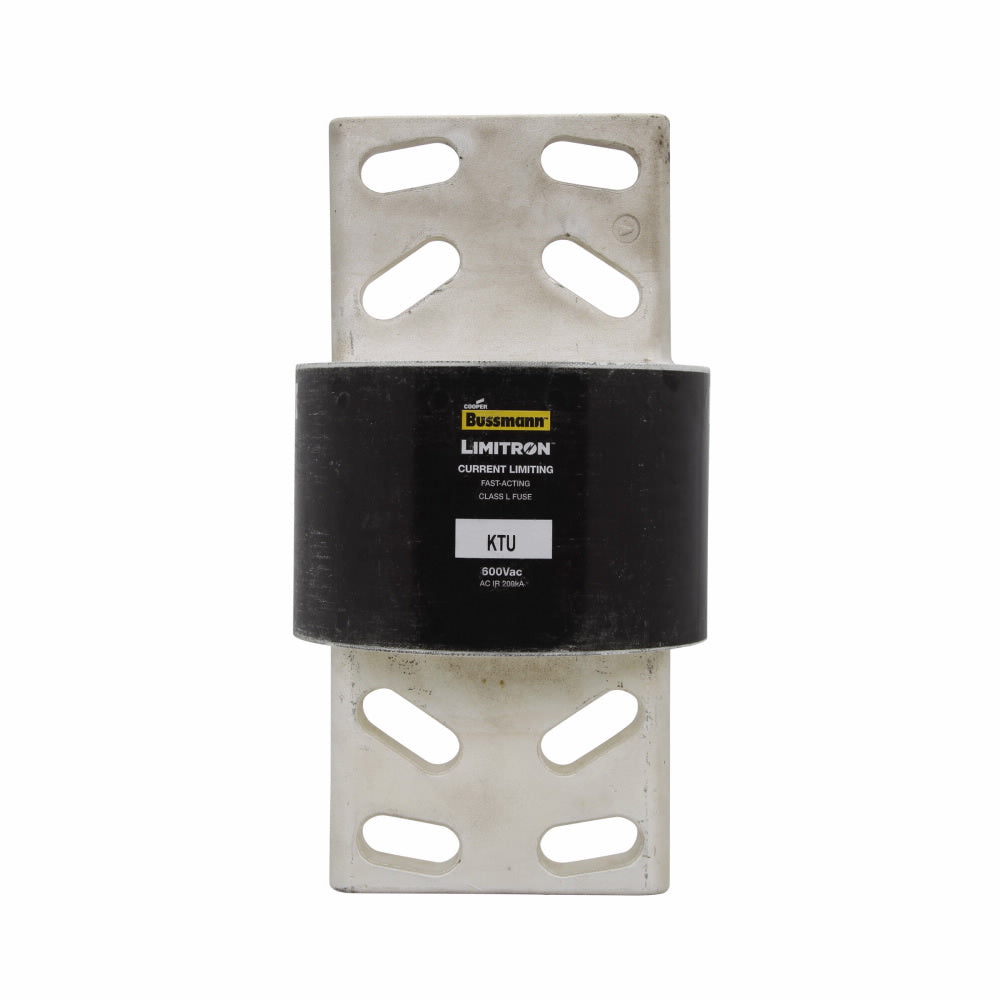

KTU-3000 is a Eaton Bussmann Class L fast-acting cartridge fuse rated for 3000 amps and 600 volts AC with a 200kA interrupt rating and bolt mounting type.
This fuse is designed for advanced circuit protection in industrial and commercial applications, providing current-limiting performance with 99.9% pure silver links for low watt loss and minimal operating temperature. It features a melamine glass tube construction with silver-plated end bells and bolted blade ends for secure mounting and reliable operation. The KTU-3000 fuse is UL Listed and CSA Certified to meet stringent safety standards.
- Amperage: 3000A
- Voltage: 600V AC
- Interrupt Rating: 200kA RMS Symmetrical
- Fuse Class: L
- Mounting Type: Bolt Mount
- Fuse Type: Cartridge
- Construction: Melamine glass tube with silver-plated end bells
- End Connections: Bolted blade end x bolted blade end
- Agency Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KTU-3000
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KTU
- Voltage : 600
- Amperage : 3000
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 051712613309
- GTIN : 00051712613309
- Dimensions : 10.75 in x 5 in x 5 in (Length/Depth x Height x Width)
- Weight : 17
