Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KTU-2000

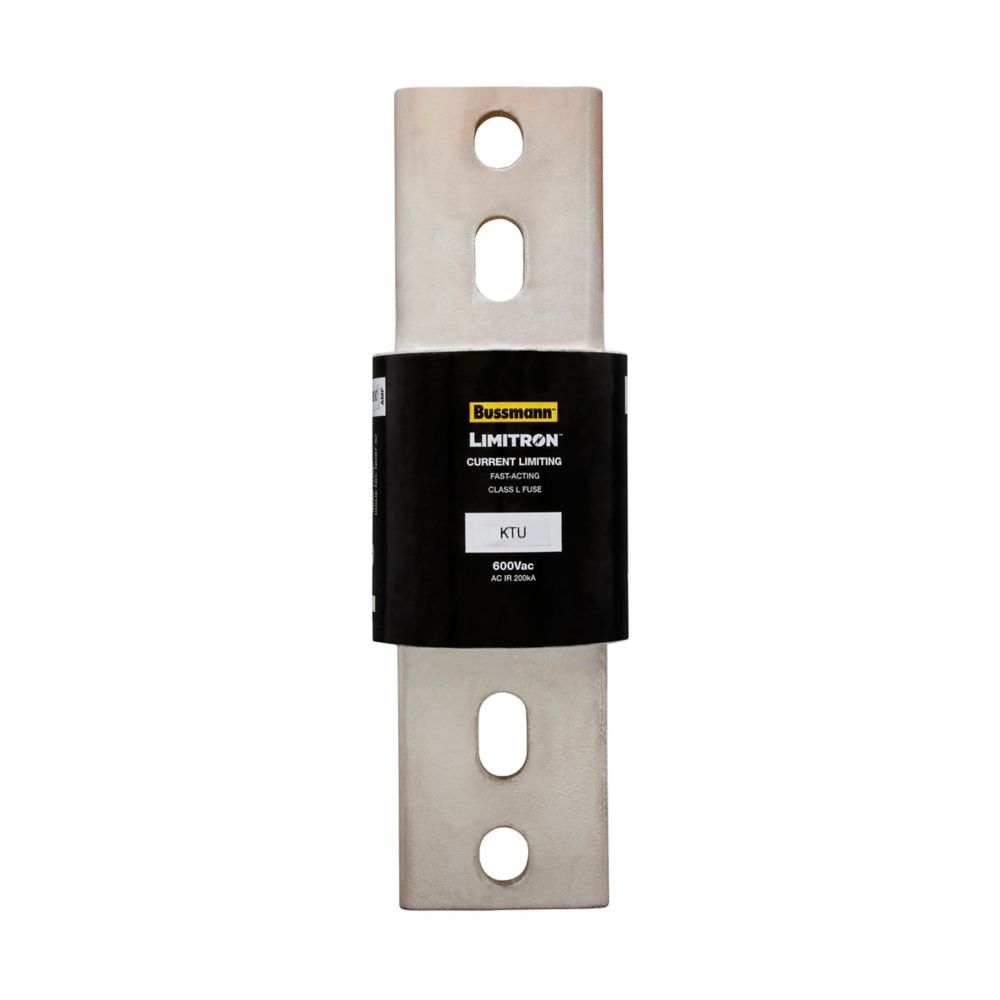

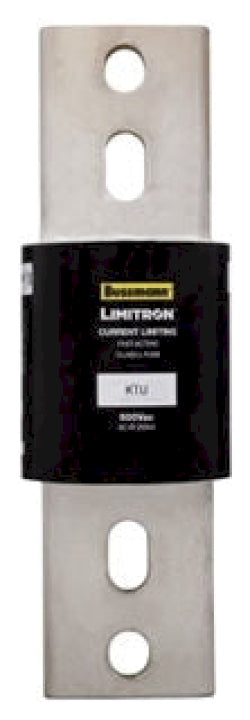

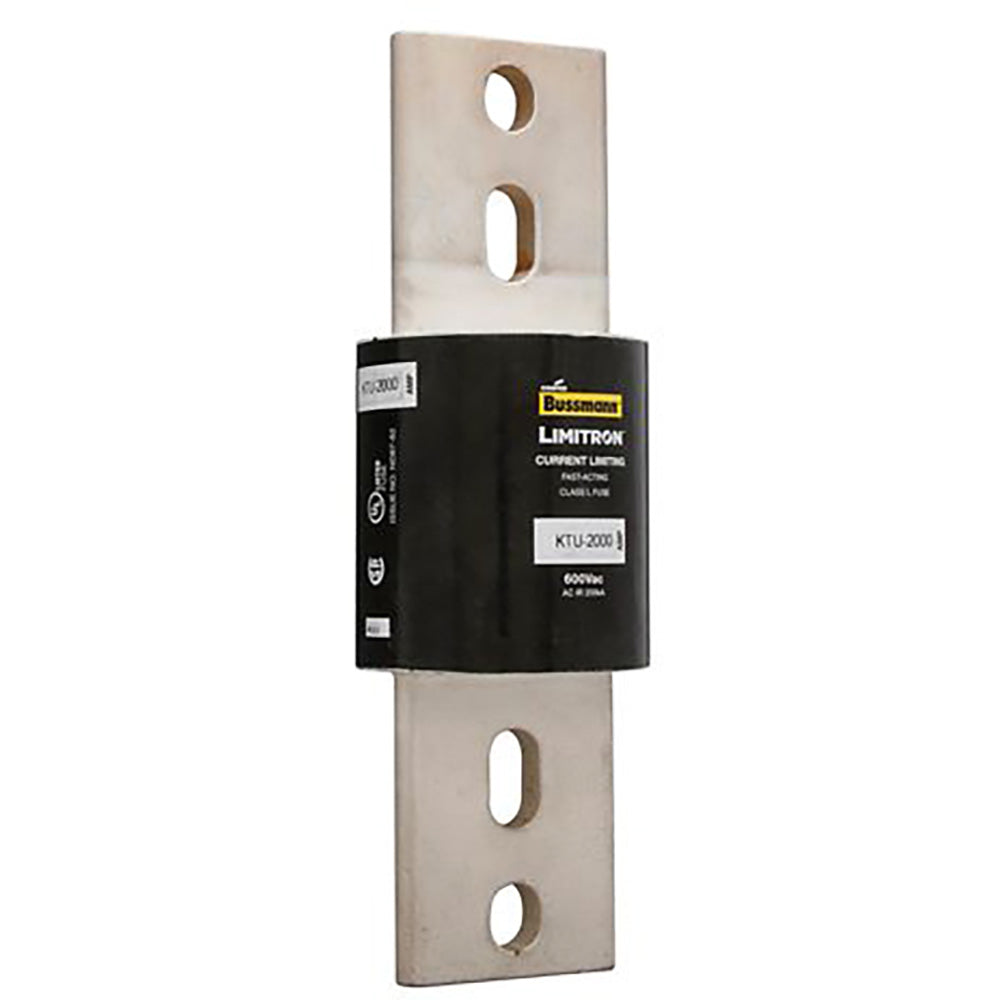

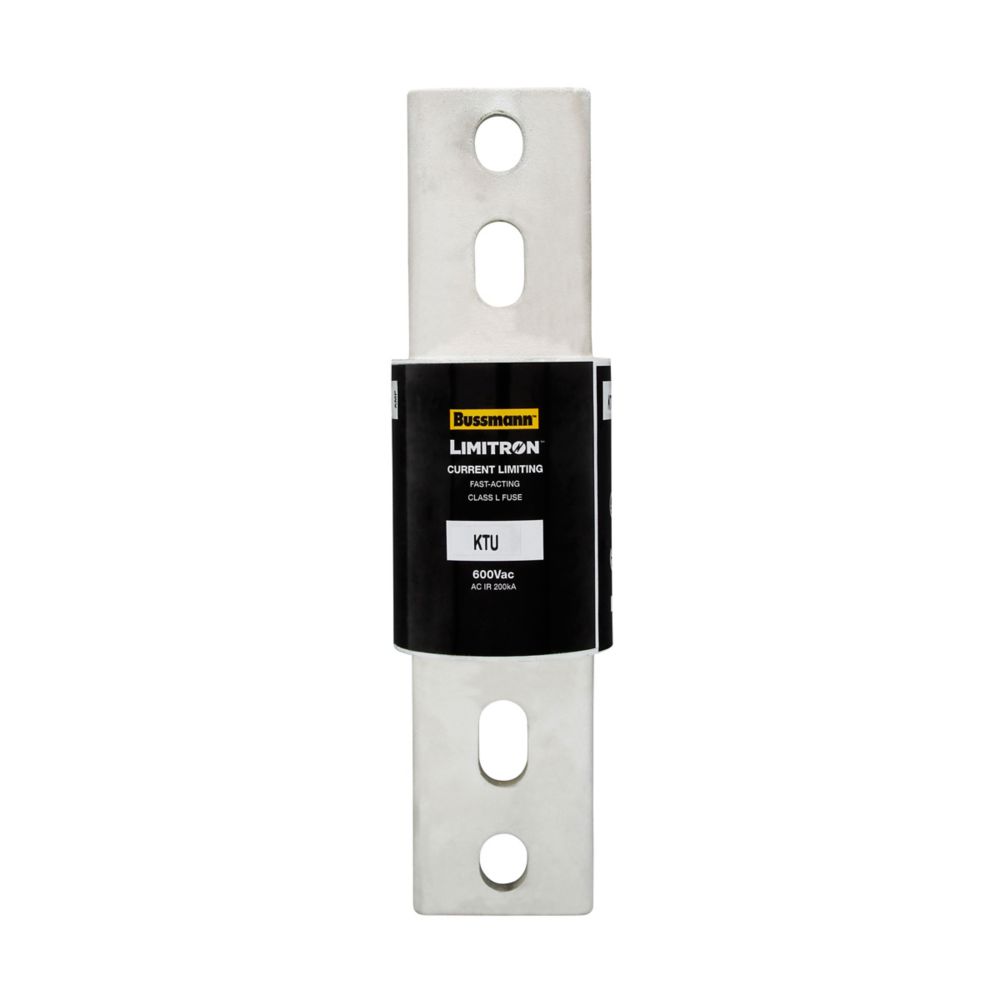

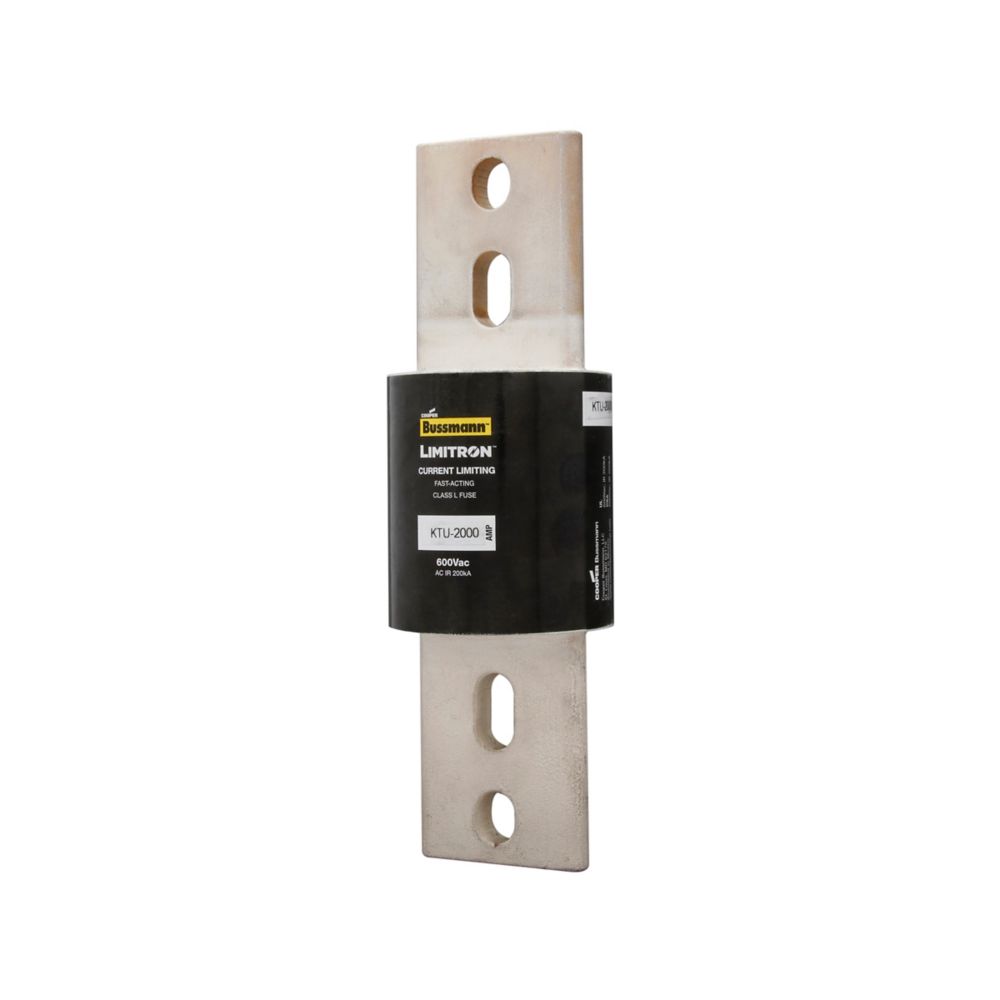

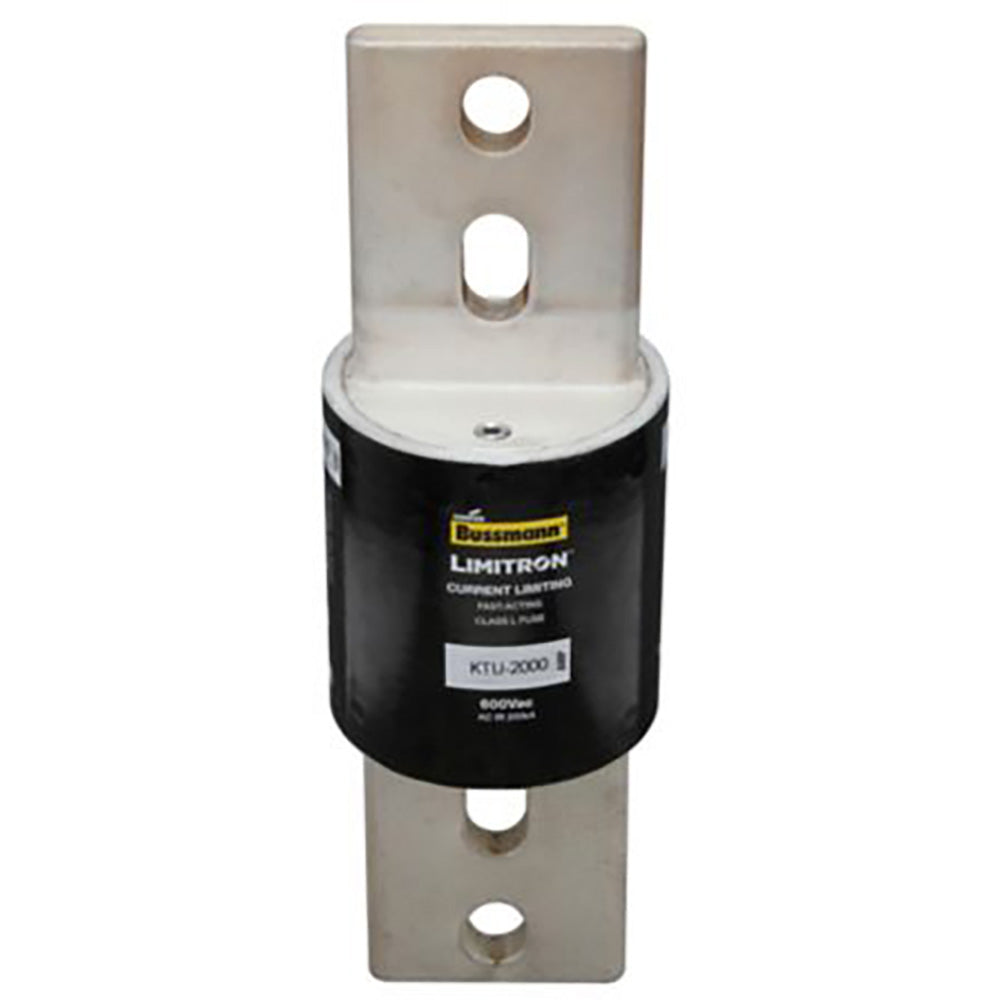

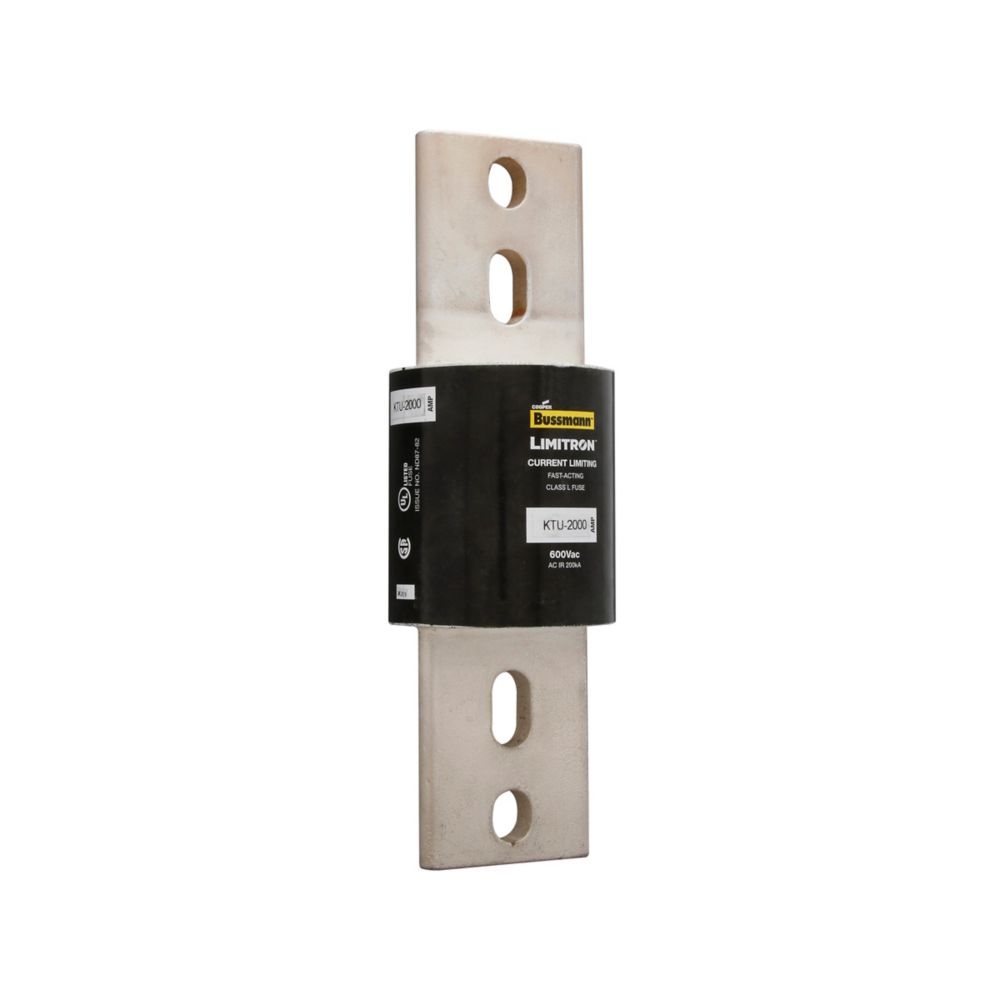

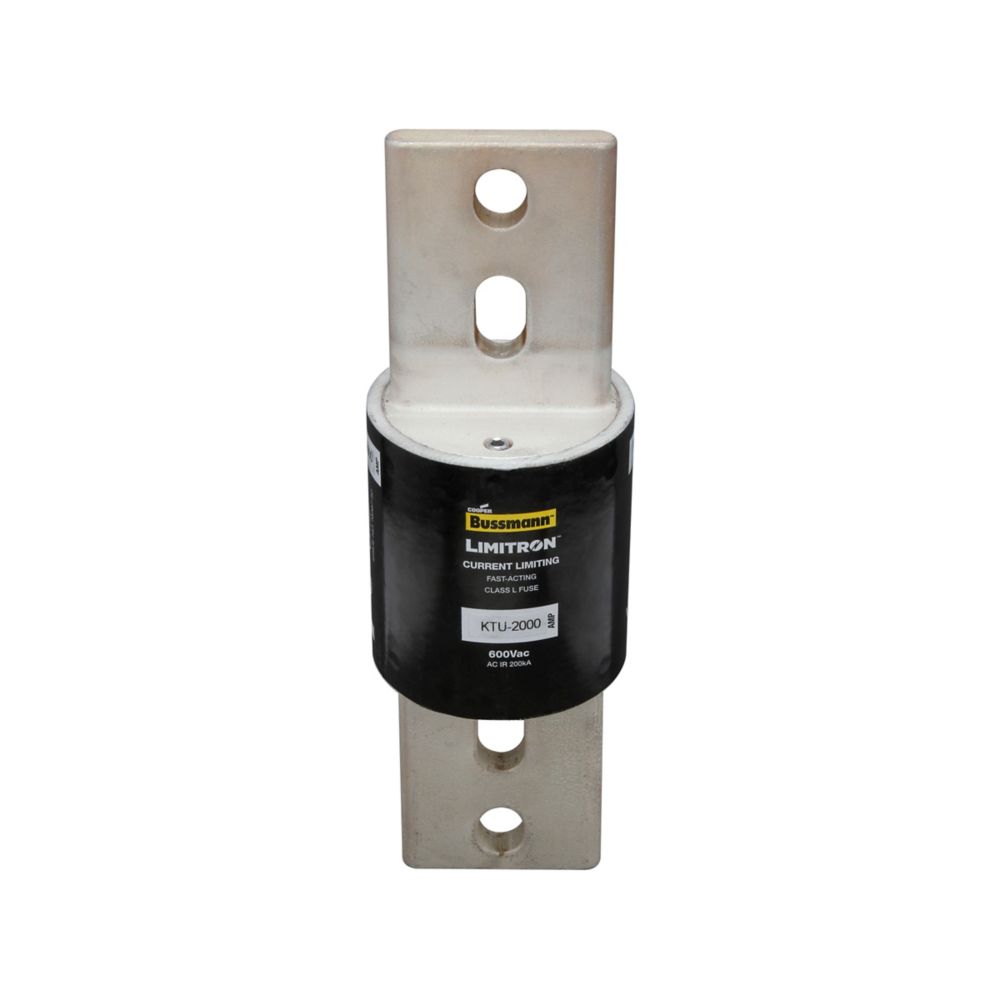

KTU-2000 is a Bussmann Series Class L fast-acting, current-limiting fuse designed for high-amperage branch circuit protection in industrial and commercial applications. This Eaton fuse provides reliable protection for electrical systems requiring robust overcurrent protection. The KTU-2000 fuse features a 2000A current rating and a 600VAC voltage rating, with an interrupting rating of 200kAIC at 600VAC. It is a bladable, three-pole fuse suitable for use in Class L fuse holders and switchgear. The fuse is fast-acting and current-limiting, offering advanced protection for sensitive equipment and critical circuits.
- Part Number: KTU-2000
- Manufacturer: Eaton
- Series: Bussmann Series Class L
- Amperage: 2000A
- Voltage: 600VAC, 340VDC
- Poles: 3
- Mounting Type: Bladable
- Interrupt Rating: 200kAIC at 600VAC
- Frame: Class L
- Feature: Fast-Acting, Current-Limiting
- Application: Branch Circuit Protection
- Certifications: UL Listed
Specifications
- Part Number: KTU-2000
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : KTU
- Voltage : 600
- Amperage : 2000
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 3.5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 051712613200
- GTIN : 00051712613200
- Dimensions : 10.75 in x 3.5 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 7.82
- Certification : UL, CSA, CE
