KTU-1500 - Eaton Bussmann 1500A 600V AC Class L Fast Acting Current Limiting Fuse, Bolt Mount, 200kA Interrupt, KTU Series, UL/CSA Certified

KTU-1500

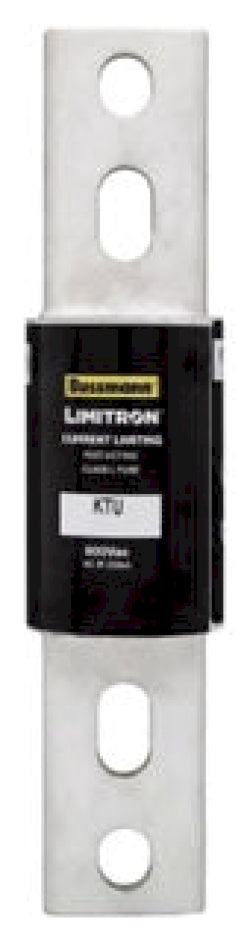

KTU-1500 is a high-performance, fast-acting current-limiting fuse designed for demanding power distribution applications.

This Eaton Bussmann KTU-1500 fuse offers superior protection with 1500A amperage rating, 600V AC voltage rating, and an exceptional 200,000A interrupting capacity. It features 99.9% pure silver links for low watt loss, bolt mounting for secure installation, and is housed in a durable glass melamine tube. Ideal for protecting circuit breakers with low interrupting ratings, this UL Class L fuse is certified to UL 248-12 and CSA C22.2 No. 248.12 standards.

Key Specifications

• Part Number: KTU-1500
• Manufacturer: Eaton Bussmann
• Amperage: 1500A
• Voltage: 600V AC
• Poles: Single
• Mounting Type: Bolt Mount
• Interrupt Rating: 200,000A RMS @ 600VAC
• Series/Frame: KTU, Class L
• Trip Unit: Fast Acting, Current Limiting
• Certifications: UL Listed (Std. 248-12, Class RK1), CSA Certified (C22.2 No. 248.12, Class 1422-02)
• Construction: 99.9% pure silver links, glass melamine tube
• Physical Size: 3" x 10.75"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTU-1500
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KTU
• Voltage : 600
• Amperage : 1500
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 3
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712613156
• GTIN : 00051712613156
• Dimensions : 10.75 in x 3 in x 3 in (Length/Depth x Height x Width)
• Weight : 6
