Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

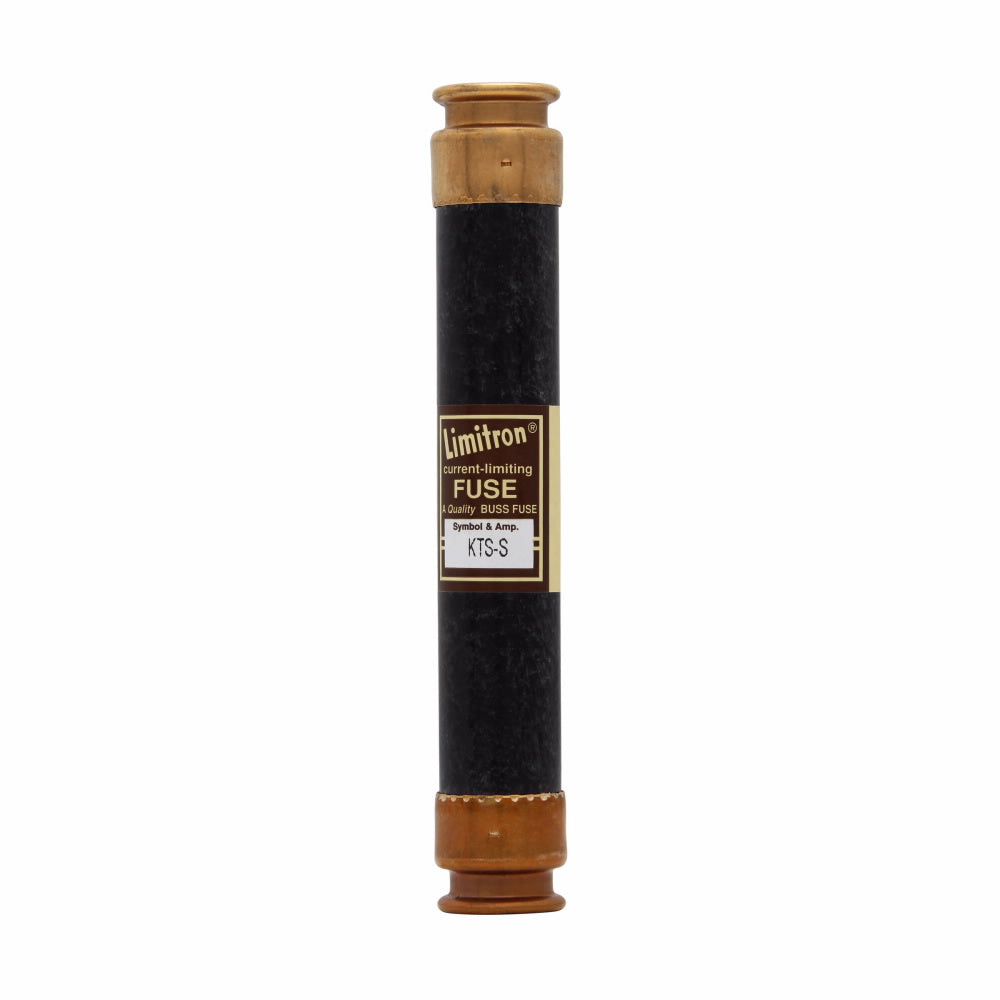

KTS-S-20
KTS-S-20 is an Eaton Bussmann Series Class RK1 fast-acting current limiting fuse designed for industrial and commercial power distribution applications requiring reliable overcurrent protection. This cartridge-style fuse delivers consistent performance in medium voltage systems with a compact ferrule-end design for secure installation in standard fuse holders. KTS-S-20 combines fast-acting response with current limiting capability to protect equipment from fault conditions while minimizing downstream damage. The melamine glass tube construction provides durability and visual inspection capability, making it ideal for applications where quick fault detection is essential.
- Amperage Rating: 20 A
- Voltage Rating: 600 V AC and DC
- Interrupt Rating: 200 kAIC at 600 Vac
- Fuse Type: Fast-Acting, Current Limiting
- Class: RK1
- Body Material: Melamine Glass Tube
- Connection: Ferrule End x Ferrule End
- Fuse Indicator: Non-Indicating
- Number of Elements: 1
- Product Length: 5 in
- Product Weight: 0.15 lb
- UPC: 051712416207
Specifications
- Part Number: KTS-S-20
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KTS
- Voltage : 600
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712416207
- GTIN : 00051712416207
- Dimensions : 5 in x 0.82 in x 0.82 in (Length/Depth x Height x Width)
- Weight : 0.13
