Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
KTS-S-125

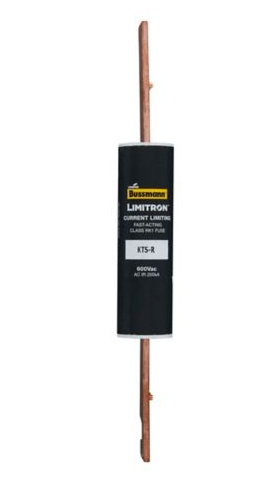

KTS-S-125 is a Cooper Bussmann Class RK1 fast-acting fuse rated for 125 amps and 600 volts AC.This single-element, current-limiting fuse provides fast-acting protection with a high interrupting rating of 200kA at 600 VAC. It is designed for use in circuits without heavy surge currents and is commonly applied to protect circuit breakers and electrical components. The fuse features a rejection style frame for secure mounting and complies with industry safety certifications.
- Amperage: 125A
- Voltage Rating: 600 VAC
- Fuse Class: RK1
- Type: Fast-Acting, Current-Limiting
- Interrupting Rating: 200,000 A
- Mounting Style: Rejection Style
- Single-Element Construction
- Suitable for Circuit Breaker Protection
- Body Material: Melamine
- Certifications: Industry Standard Safety Certified
Specifications
- Part Number: KTS-S-125
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : LIMITRON
- Type : KTS
- Voltage : 600
- Amperage : 125
- AIC rating : 200kA@600V
- Connection : Knife Blade
- Diameter : 1.5
- Class Rating : RK1
- Barrels : 1
Product Data
- Weight : 1
