Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KTS-R-80

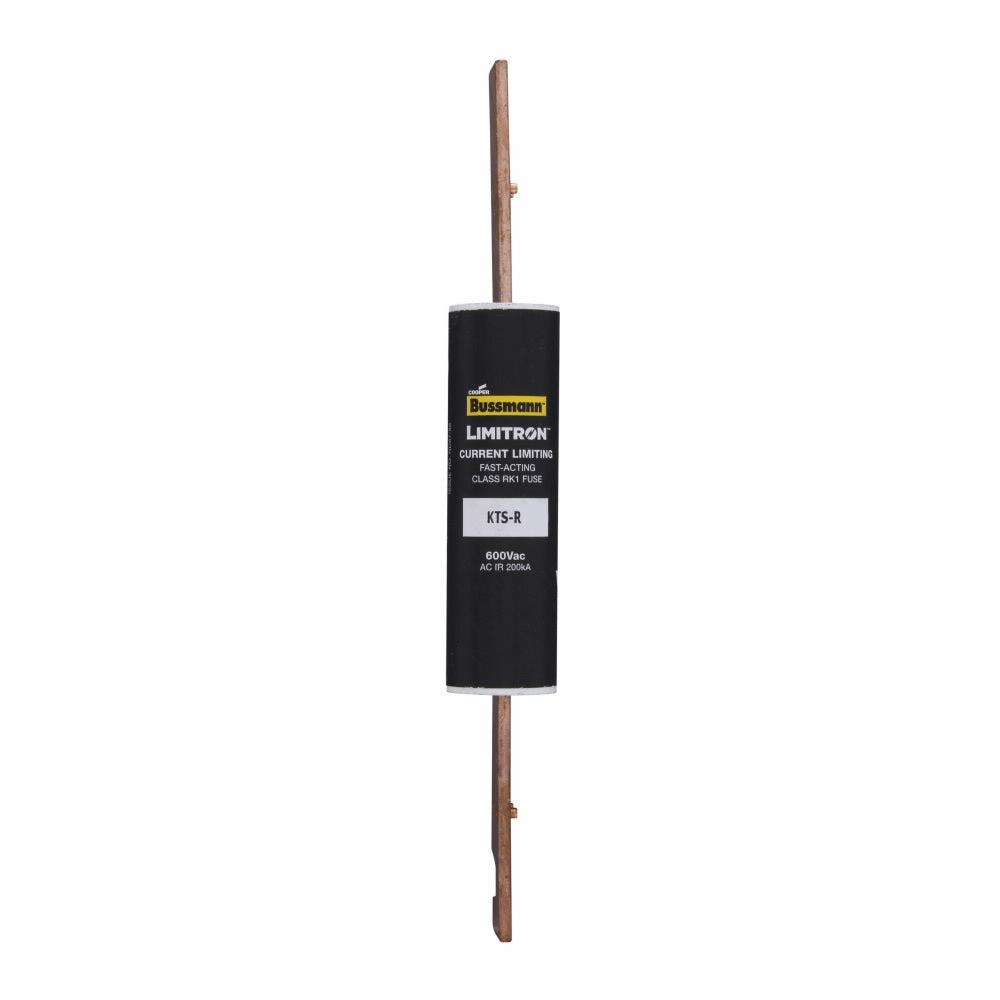

KTS-R-80 is an Eaton Bussmann Series Class RK1 fast-acting, current-limiting fuse rated for 80 amperes at 600 volts AC. This LIMITRON fuse features a rejection-style design with ferrule construction and is engineered for use in panelboards and industrial power distribution applications requiring advanced short-circuit protection. Key Specifications
- Amperage Rating: 80 A
- Voltage Rating: 600 VAC
- Interrupt Rating: 200 kAIC at 600 VAC
- Fuse Class: RK1
- Fuse Type: Fast-Acting, Current-Limiting
- Material: Melamine Glass Tube
- End Connections: Blade End x Blade End
- Fuse Indicator: Non-Indicating
- Certifications: UL Listed, CE Marked, Standard 248-12
- Number of Elements: 1
- End Caps: 70/30 Brass
Specifications
- Part Number: KTS-R-80
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 80
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712417143
- GTIN : 00051712417143
- Dimensions : 7.88 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.5
