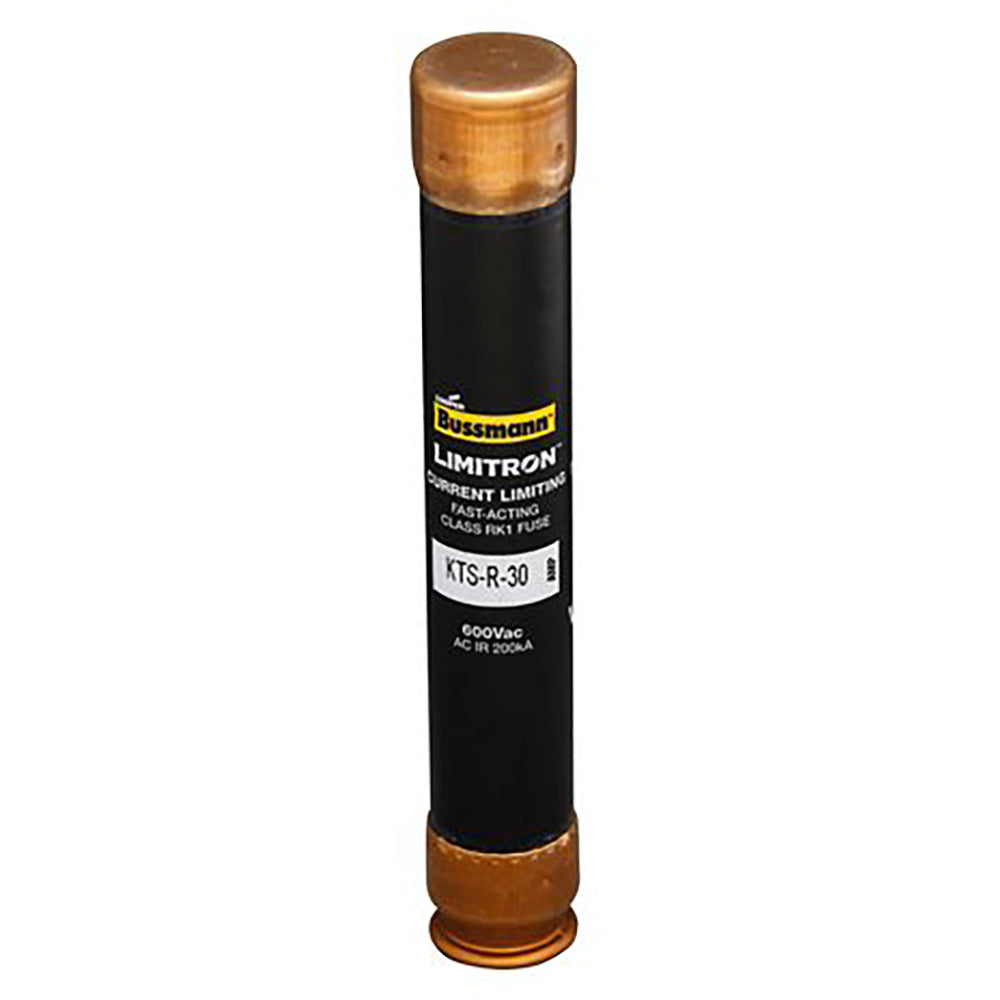

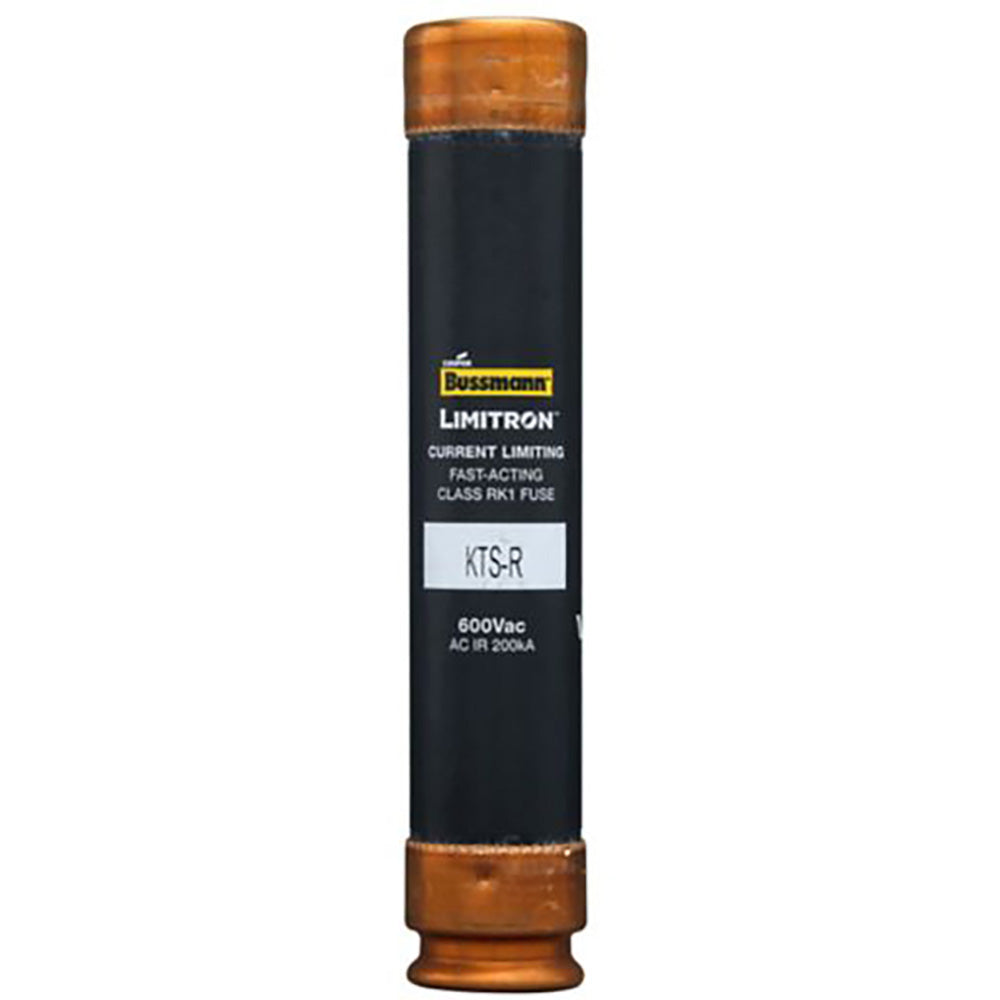

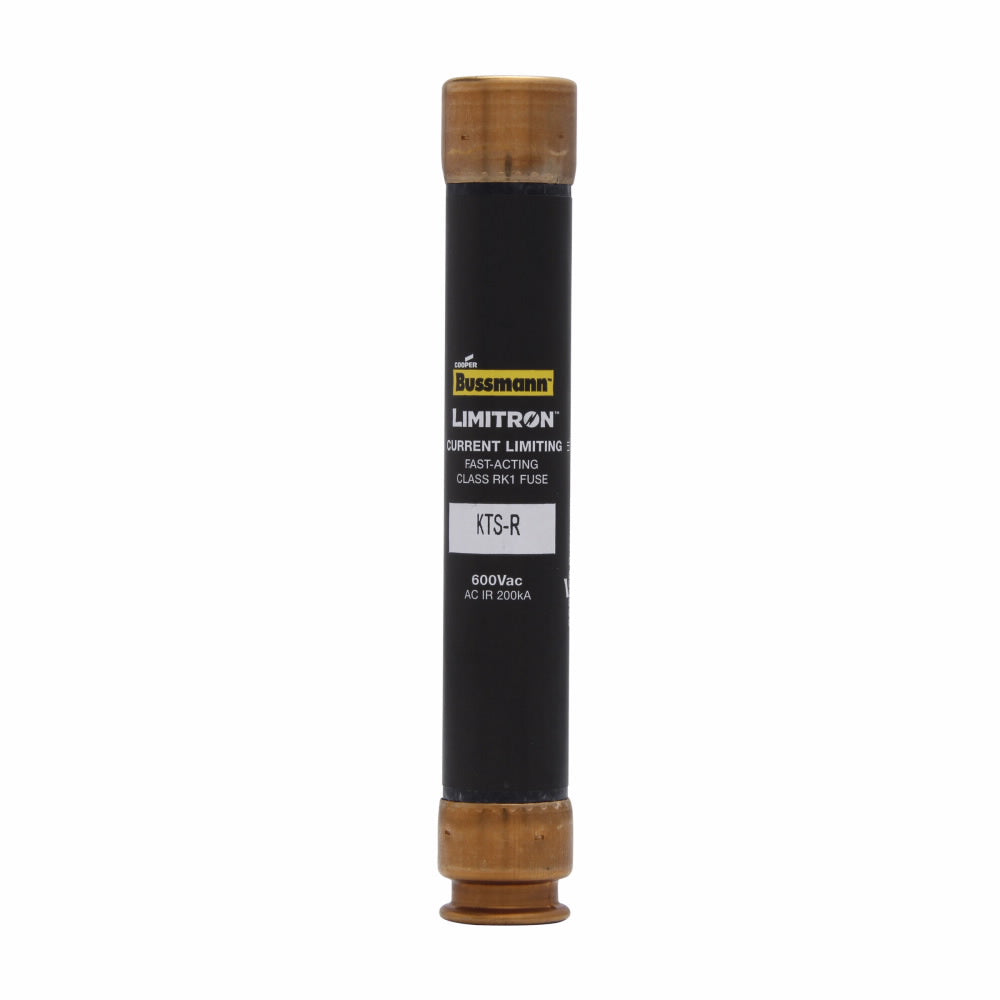

KTS-R-8 - Eaton 8A 600V Class RK1 Fast-Acting Fuse 1 Pole 200kA Interrupt Rating

KTS-R-8

KTS-R-8 is an Eaton 8 amp, 600 volt, Class RK1 fast-acting fuse designed for reliable circuit protection.This single-pole fuse features a fast-acting, current-limiting design with a 200kA interrupt rating at 600Vac. It is a cartridge-style fuse intended for mounting in fuse holders and provides minimal time-delay for effective short-circuit current limitation. The KTS-R series fuses are UL Listed to Standard 248-12 and carry CE certification.

Key Specifications
• Amperage: 8 A
• Voltage Rating: 600 Vac
• Poles: 1
• Interrupt Rating: 200 kA RMS Symmetrical
• Fuse Type: Fast-Acting, Current-Limiting
• Fuse Size/Group: Class RK1
• Mounting Style: Holder
• Termination Style: Clip
• Agency Certifications: UL Listed, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: KTS-R-8
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KTS-R
• Voltage : 600
• Amperage : 8
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 051712417327
• GTIN : 00051712417327
• Country of Origin : Mexico
• Dimensions : 5 in x 0.8 in x 0.8 in (Length/Depth x Height x Width)
• Weight : 0.15
