Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KTS-R-70

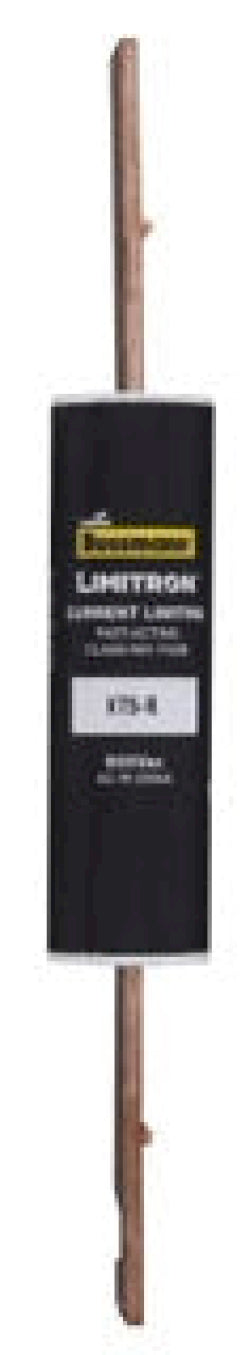

KTS-R-70 is a Bussmann Eaton 70 Amp, 600 Volt AC fast acting RK1 cartridge fuse designed for reliable circuit protection.This fuse features a rejection style design with a 200 kA interrupting rating at 600 VAC, making it suitable for high fault current applications. It is a single-element, current-limiting fuse with UL Class RK1 certification, CE and CSA approvals. The fuse body is cartridge blade style, measuring approximately 1 inch by 7.88 inches, optimized for industrial and commercial electrical systems.
- Key Specifications
- Amperage: 70 A
- Voltage Rating: 600 VAC
- Interrupt Rating: 200 kA
- Fuse Type: Fast Acting (Limitron)
- Class: RK1
- Body Style: Cartridge Blade
- Mounting Type: Rejection Style
- Certifications: UL, CSA, CE
- Physical Size: 1" x 7.88"
- Part Number: KTS-R-70
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KTS-R
- Voltage : 600
- Amperage : 70
- AIC rating : 200kA@600V
- Diameter : 1
- Class Rating : RK1
- Barrels : 1
- UPC : 051712417136
- GTIN : 00051712417136
- Dimensions : 7.88 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.5
