Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KTS-R-600

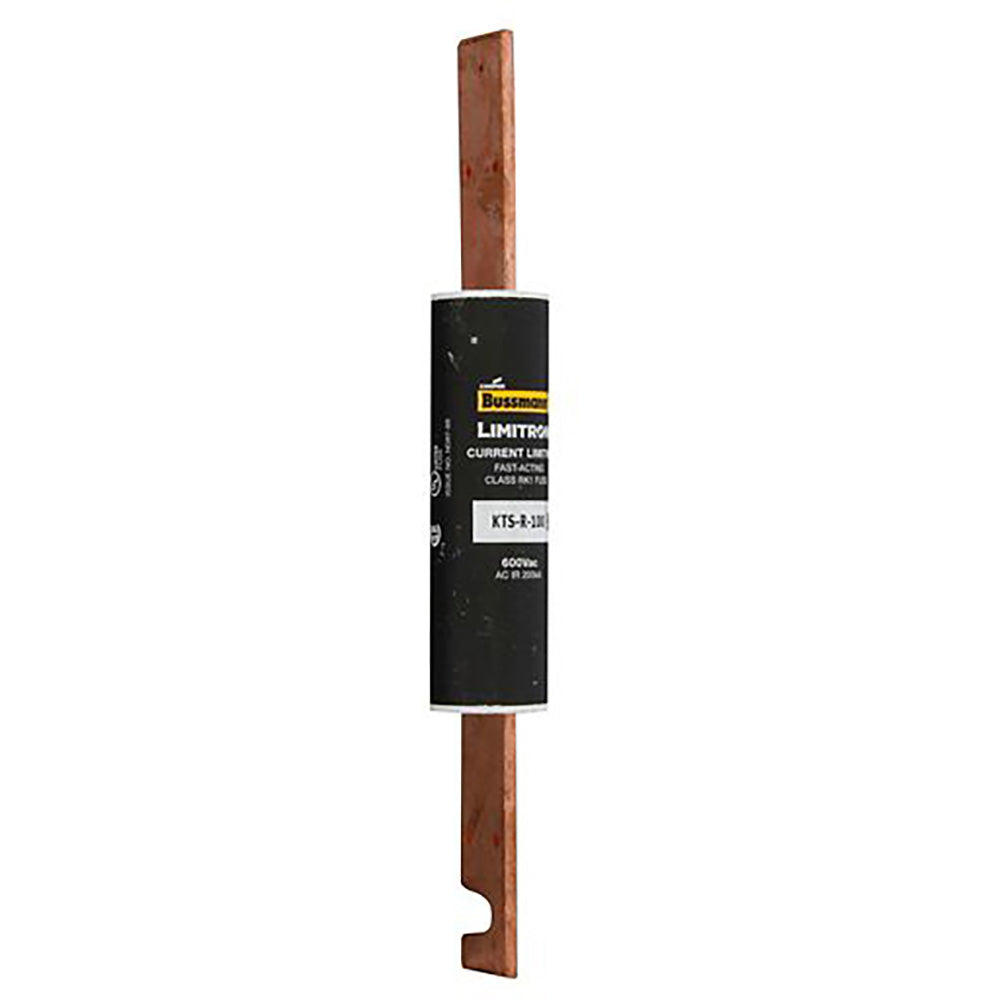

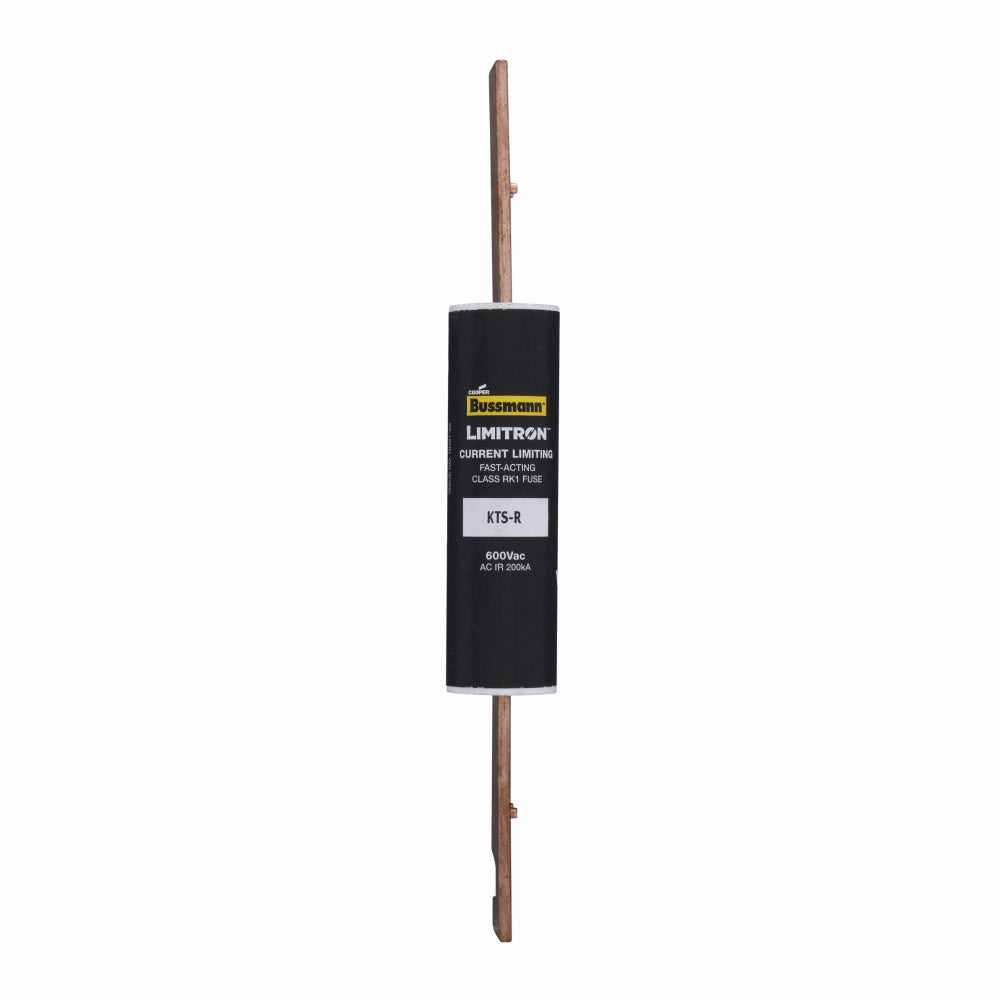

KTS-R-600 is a Cooper Bussmann Class RK1 fast-acting fuse rated for 600 amps and 600 volts AC, designed for advanced circuit protection.This KTS-R-600 fuse features a current-limiting, fast-acting design with a melamine glass tube body, providing reliable interruption of fault currents up to 200kA at 600 VAC. It is a single-element, 1-barrel fuse suitable for low voltage applications and meets UL 248-12, CSA C22.2 No. 248.12, and CE certifications.
- Key Specifications
- Amperage Rating: 600 A
- Voltage Rating: 600 V AC
- Interrupting Rating: 200 kA RMS Symmetrical
- Fuse Type: Class RK1, Fast-Acting
- Body Material: Melamine Glass Tube
- Number of Poles: 1 (Single Element)
- Series: KTS-R
- Standards: UL 248-12, CSA C22.2 No. 248.12, CE
- Physical Size: Approx. 2.88" diameter x 13.38" length
- Mounting Type: Rejection Style Fuse
- Part Number: KTS-R-600
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Diameter : 2.4
- Class Rating : L
- Barrels : 1
- UPC : 051712417280
- GTIN : 00051712417280
- Dimensions : 13.38 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 4.133
