Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KTS-R-5

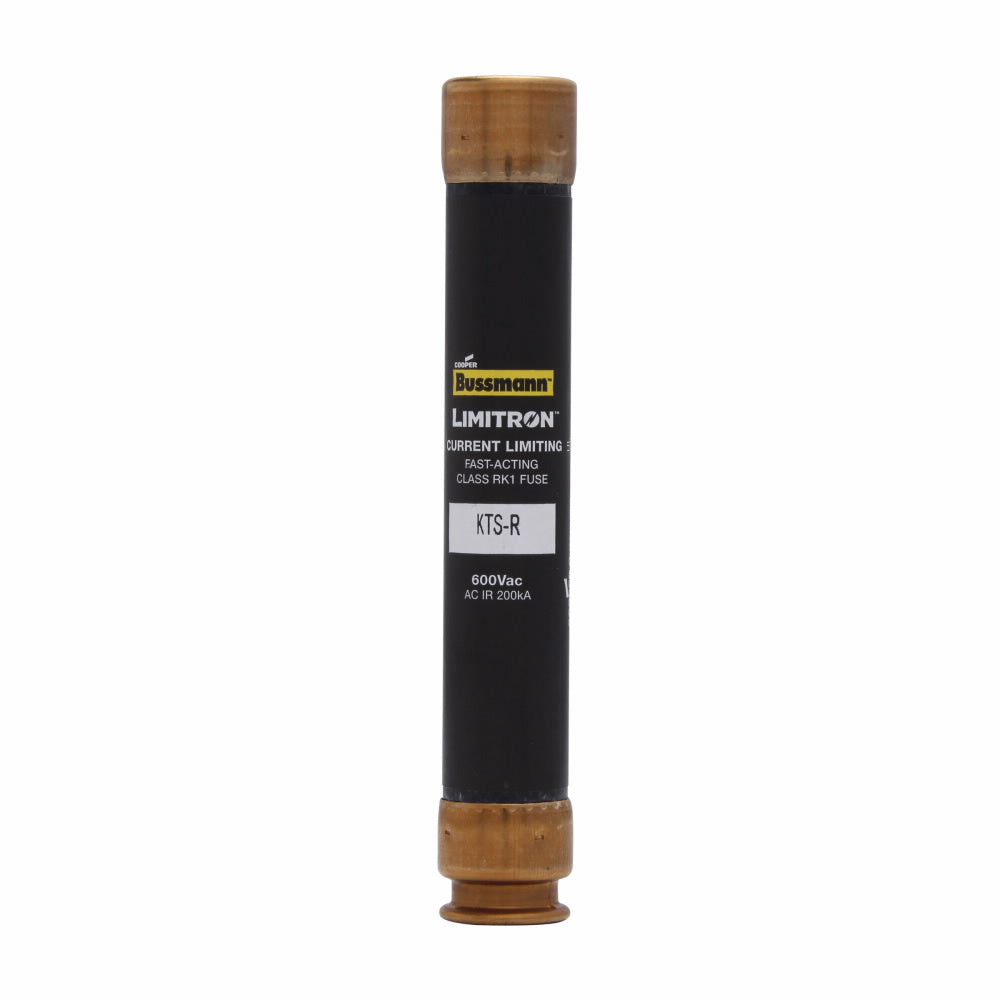

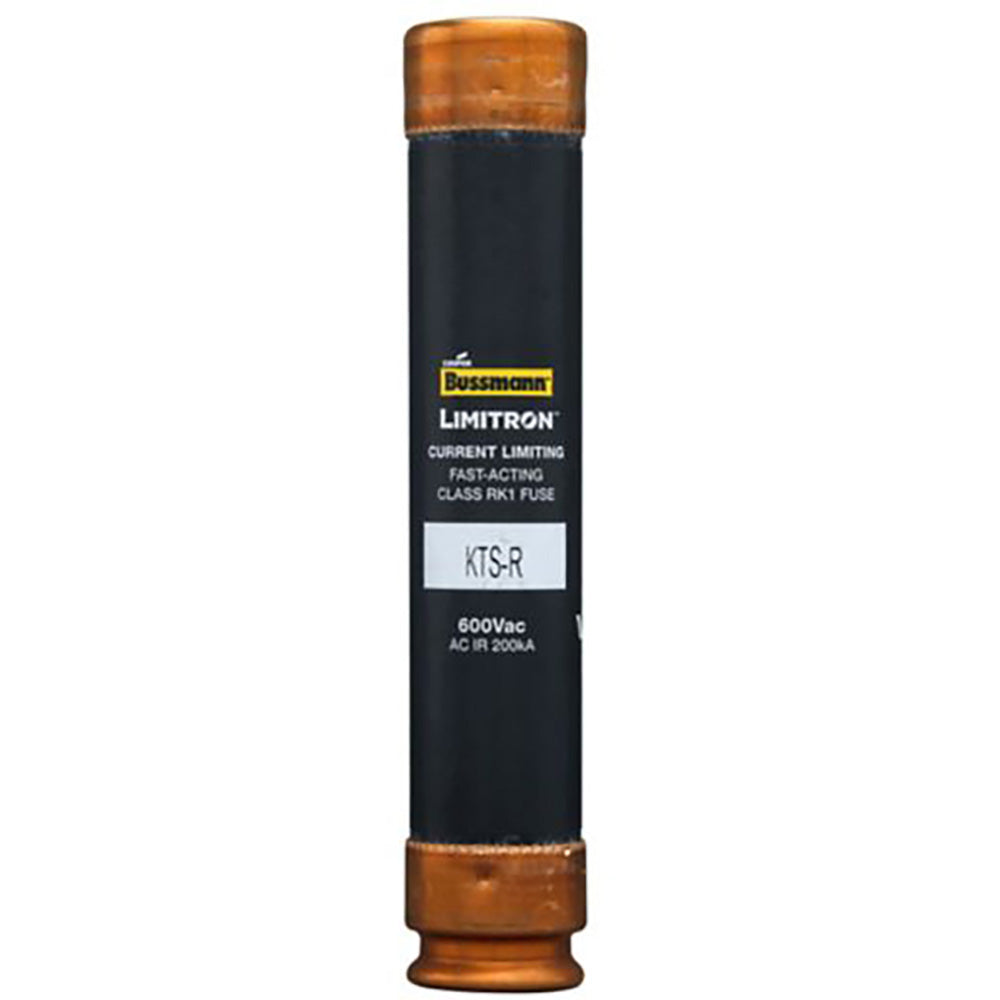

KTS-R-5 is a Class RK1, 5A, 600VAC fast-acting current-limiting fuse designed for reliable circuit protection in industrial and commercial applications. This fuse provides a high degree of short-circuit current limitation and features a Class R rejection design for added safety. The KTS-R-5 is part of Eaton's Bussmann series and is engineered for use in environments requiring fast-acting, current-limiting protection. Its compact size and high interrupting rating make it suitable for a wide range of circuit protection needs, including control circuits and branch circuits.
- Part Number: KTS-R-5
- Manufacturer: Eaton
- Series: KTS-R
- Amperage: 5A
- Voltage: 600VAC
- Interrupt Rating: 200kA RMS Sym.
- Fuse Type: Class RK1
- Timing: Fast-Acting
- Class R Rejection Feature
- UL Listed
- CE Certified
- Dimensions: 5 in L x 0.81 in D
Specifications
- Part Number: KTS-R-5
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KTS-R
- Voltage : 600
- Amperage : 5
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712416993
- GTIN : 00051712416993
- Dimensions : 5 in x 0.8 in x 0.8 in (Length/Depth x Height x Width)
- Weight : 0.15
