2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

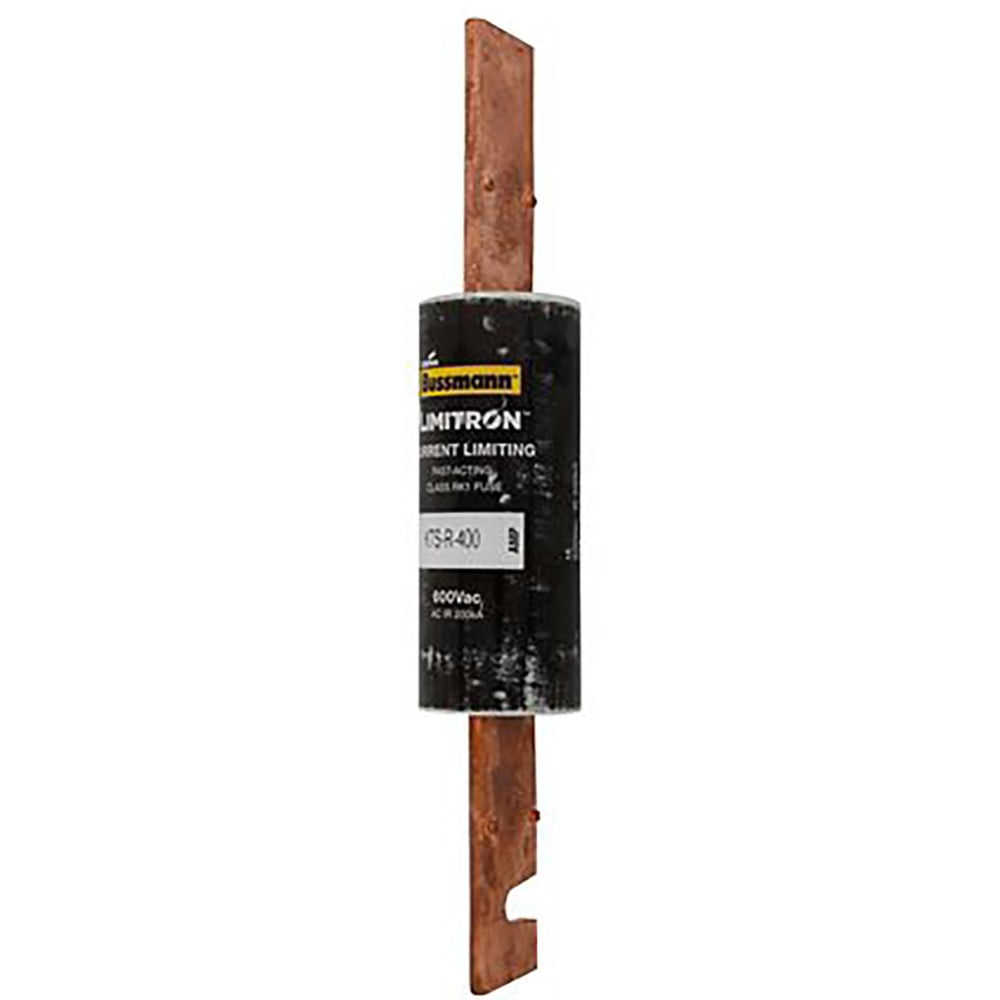

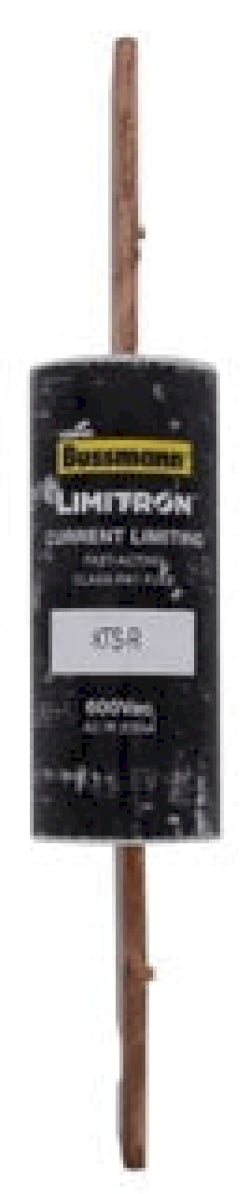

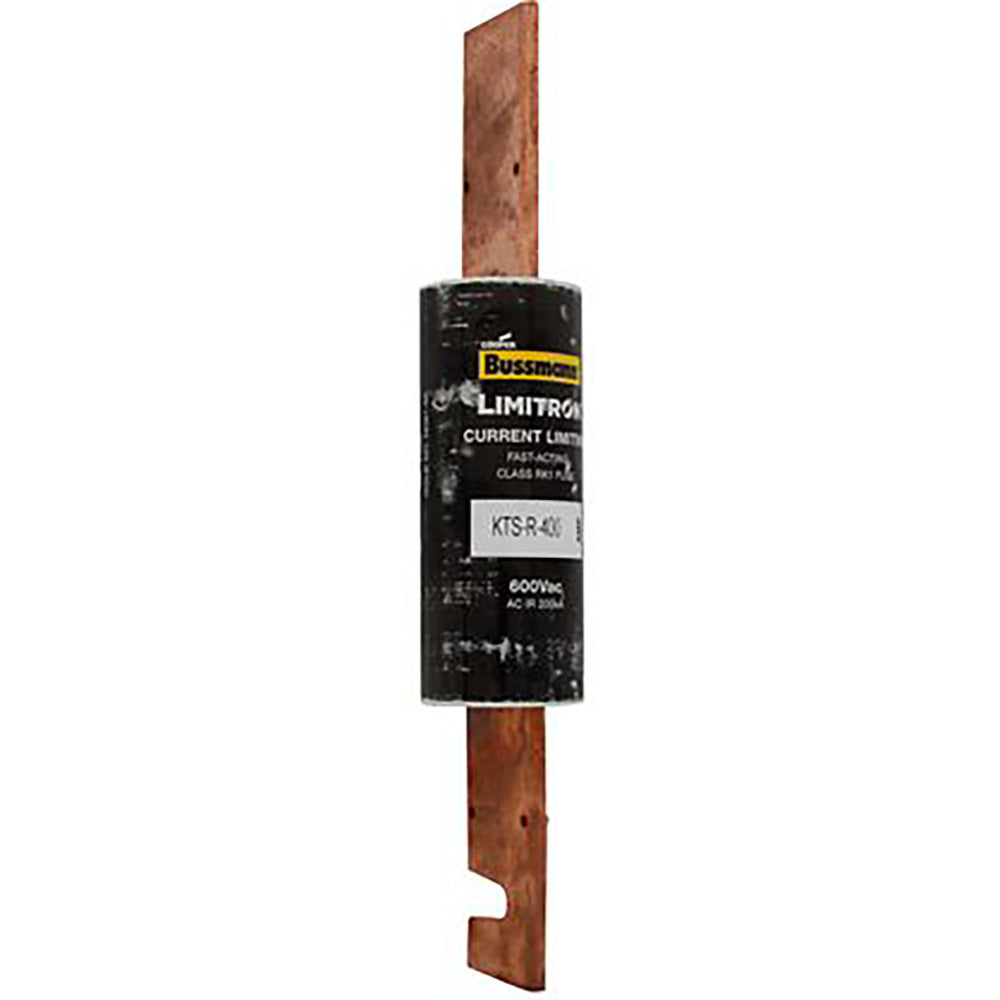

KTS-R-400
KTS-R-400 is a fast-acting, current limiting fuse rated for 400 amps and 600 volts AC, designed for reliable circuit protection.This Eaton Bussmann KTS-R series fuse features a single-element, fast-acting design with a 200,000 AIC interrupt rating at 600 VAC. It uses a melamine glass tube with 70/30 brass end caps, providing Class RK1 protection suited for circuits without heavy surge currents such as transformers and panelboards.
- Amperage: 400A
- Voltage Rating: 600 VAC
- Fuse Type: Fast Acting, Current Limiting
- Interrupt Rating: 200,000 AIC RMS @ 600 VAC
- Class: RK1
- Tube Material: Melamine Glass
- End Caps: 70/30 Brass
- Poles: 1 Pole
- Mounting Type: Cartridge Blade Fuse
- Certifications: UL Listed (Std. 248-12), CSA Certified
- Physical Size: 2" x 11.63"
Specifications
- Part Number: KTS-R-400
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KTS-R
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Diameter : 2
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712417259
- GTIN : 00051712417259
- Dimensions : 11.63 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 2.358
