Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KTS-R-35

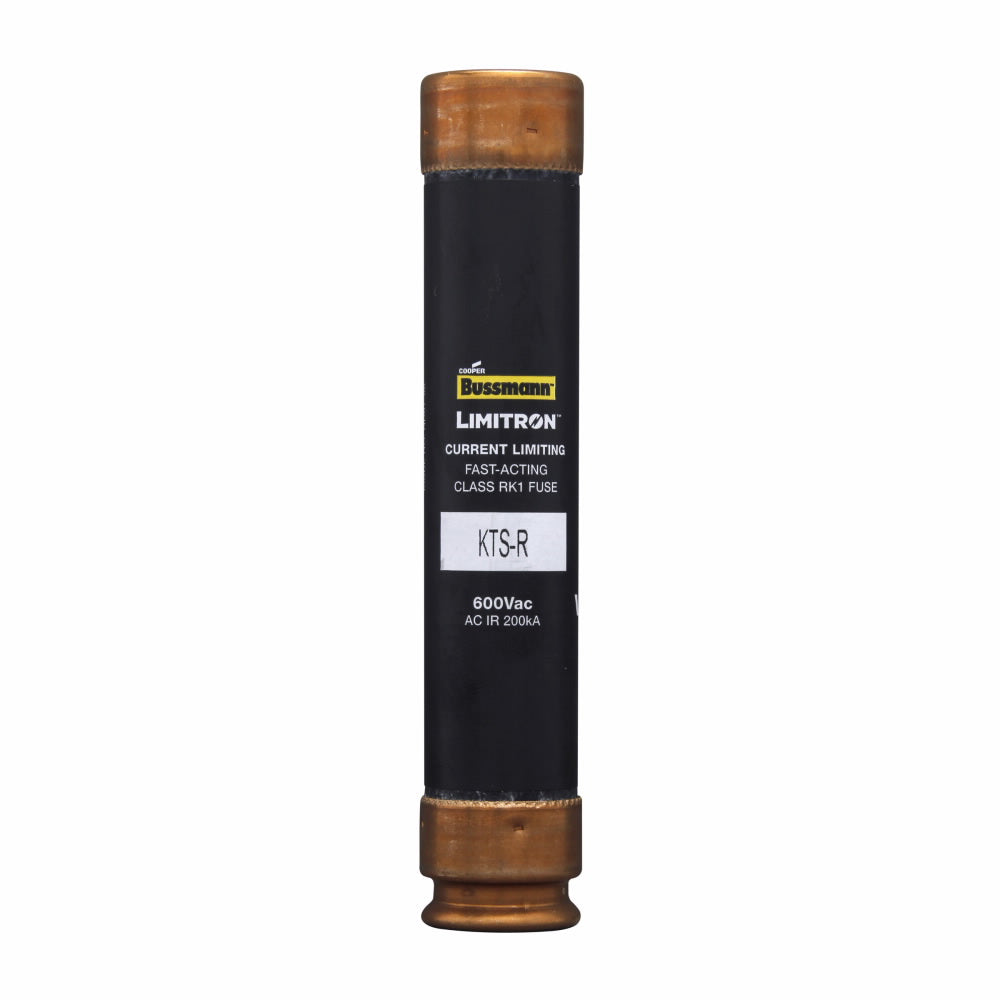

KTS-R-35 is a Cooper Bussmann Eaton Class RK1 fast-acting fuse rated for 35 amps and 600 volts AC.
This KTS-R-35 fuse provides advanced current-limiting protection with a 200 kA interrupt rating at 600 VAC. It is designed for use in circuits with no heavy surge currents such as motors, transformers, solenoids, and welders. The fuse features a rejection style mounting and ferrule terminals, ensuring reliable and safe installation. Certified to UL 248-4, CSA, and CE standards, it offers fast-acting characteristics for precise circuit protection.
- Key Specifications
- Amperage: 35 Amps
- Voltage Rating: 600 VAC
- Fuse Class: RK1
- Interrupt Rating: 200 kA
- Fuse Type: Fast-Acting, Current Limiting
- Mounting Style: Rejection Style
- Terminal Type: Ferrule
- Certifications: UL 248-4, CSA, CE
- Length: Approximately 5 inches
- Application: Motors, transformers, solenoids, welders
- Part Number: KTS-R-35
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 35
- AIC rating : 200kA@600V
- Diameter : 1
- Class Rating : RK1
- Barrels : 1
- UPC : 05171241708
- GTIN : 00051712417082
- Dimensions : 5.5 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.357
