KTS-R-30 - Eaton Bussmann 30A 600V Class RK1 Fast Acting Fuse, 1 Pole, 200kA Interrupt Rating

KTS-R-30

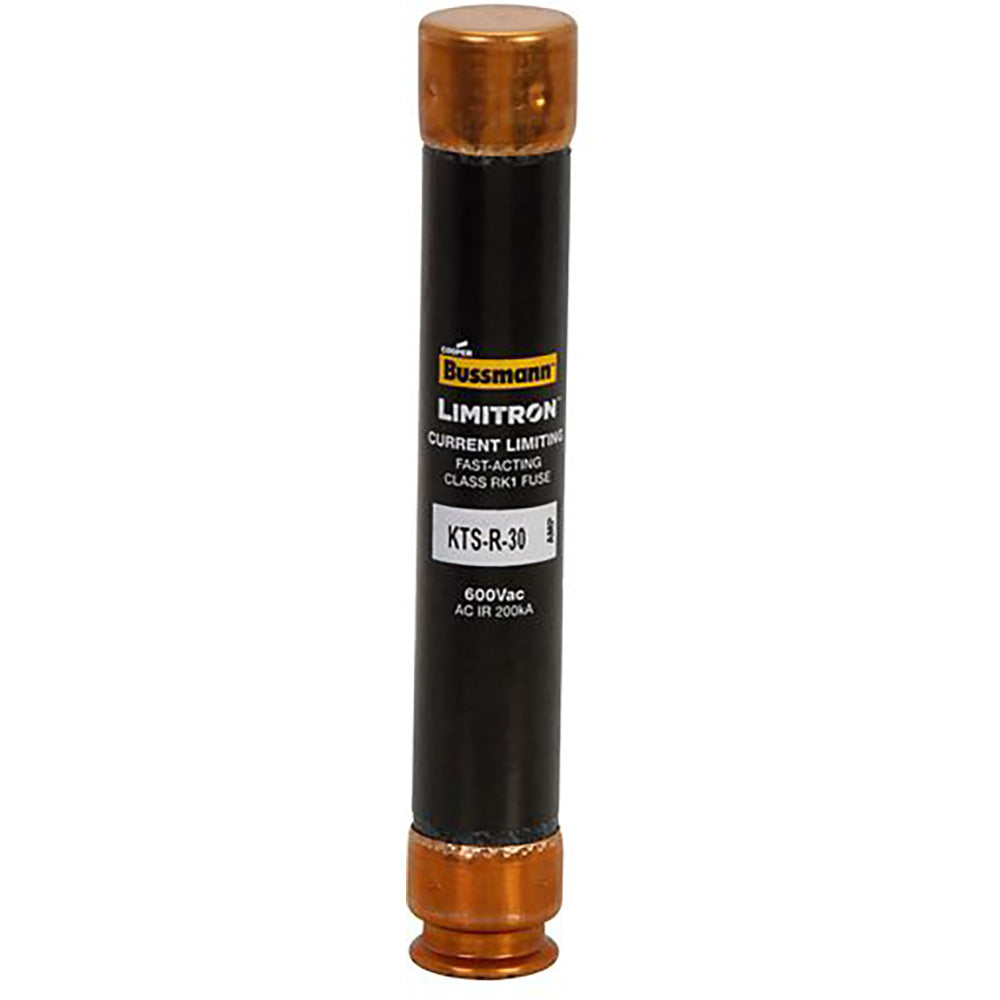

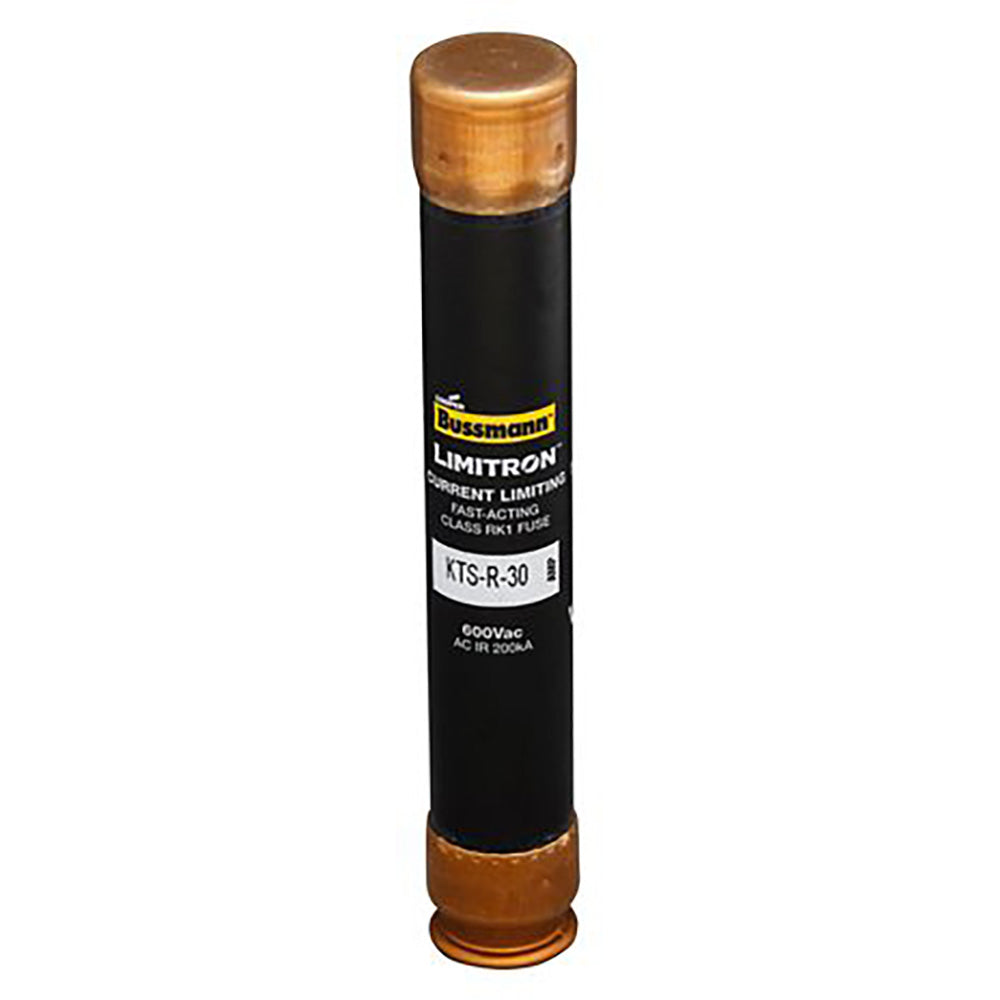

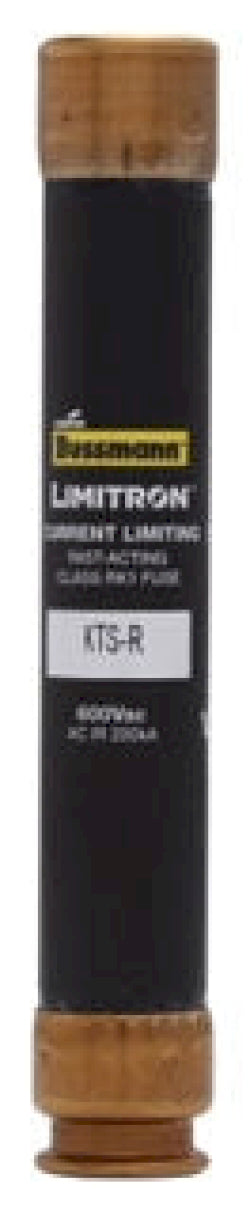

KTS-R-30 is a 30 Amp, 600 Volt AC, Class RK1 fast acting fuse from Eaton Bussmann designed for reliable circuit protection.This single element, current limiting fuse features a melamine glass tube and 70/30 brass end caps. It is rated for 200,000 AIC interrupting capacity at 600 VAC and is UL Listed and CSA Certified. The KTS-R-30 is suited for circuits and loads without heavy surge currents and provides a high degree of short-circuit limitation.

• Amperage: 30 Amps
• Voltage Rating: 600 Volts AC
• Poles: 1 (Single Pole)
• Mounting Type: Fuse holder or block compatible
• Interrupt Rating: 200,000 AIC RMS @ 600 VAC
• Series/Frame: Class RK1, LIMITRON®
• Trip Unit: Fast Acting, Single Element
• Tube Material: Melamine Glass
• End Caps: 70/30 Brass
• Certifications: UL Listed (Std. 248-12), CSA Certified (C22.2 No. 248.12)
• Physical Size: 0.81" x 5"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTS-R-30
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Limitron
• Type : KTS-R
• Voltage : 600
• Amperage : 30
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712417075
• GTIN : 00051712417075
• Dimensions : 0.8 in x 5 in x 0.8 in (Length/Depth x Height x Width)
• Weight : 0.13
