Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

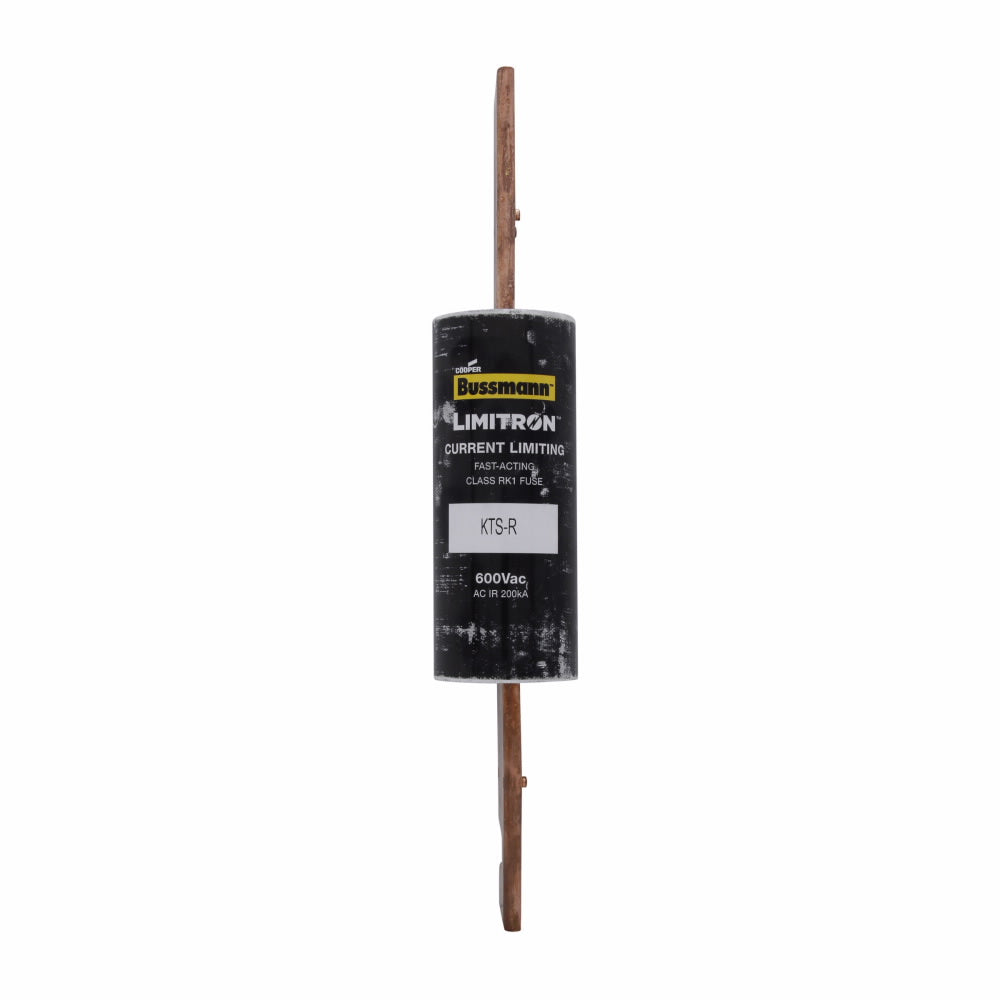

KTS-R-250
KTS-R-250 is a 250A, 600VAC, Class RK1, fast-acting, current-limiting fuse designed for reliable circuit protection in industrial and commercial applications. This rejection style fuse provides high short-circuit current limitation and is suitable for use in systems requiring robust protection. The KTS-R-250 features a melamine glass tube construction and blade end connections for secure mounting. It is engineered to physically and electrically replace fast-acting Class H, K1, K5, RK5, and other similar fuses. The fuse is non-indicating and offers minimal time-delay for fast response to overcurrent events.
- Amperage Rating: 250A
- Voltage Rating: 600VAC
- Interrupt Rating: 200kAIC at 600VAC
- Class: RK1
- Mounting Type: Blade end x blade end
- Series: KTS-R
- Material: Melamine glass tube
- Number of Elements: 1
- Special Features: Rejection style, current limiting, fast-acting
- Certifications: CE, UL 248-12, CSA C22.2
- Dimensions: 2.00 in diameter x 11.63 in length
- Weight: 2.358 lb
Specifications
- Part Number: KTS-R-250
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KTS-R
- Voltage : 600
- Amperage : 250
- AIC rating : 200kA@600V
- Diameter : 2
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712417228
- GTIN : 00051712417228
- Dimensions : 11.63 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 2.358
