KTS-R-25 - Eaton Bussmann 25 Amp 600 Volt Class RK1 Fast Acting Fuse

KTS-R-25

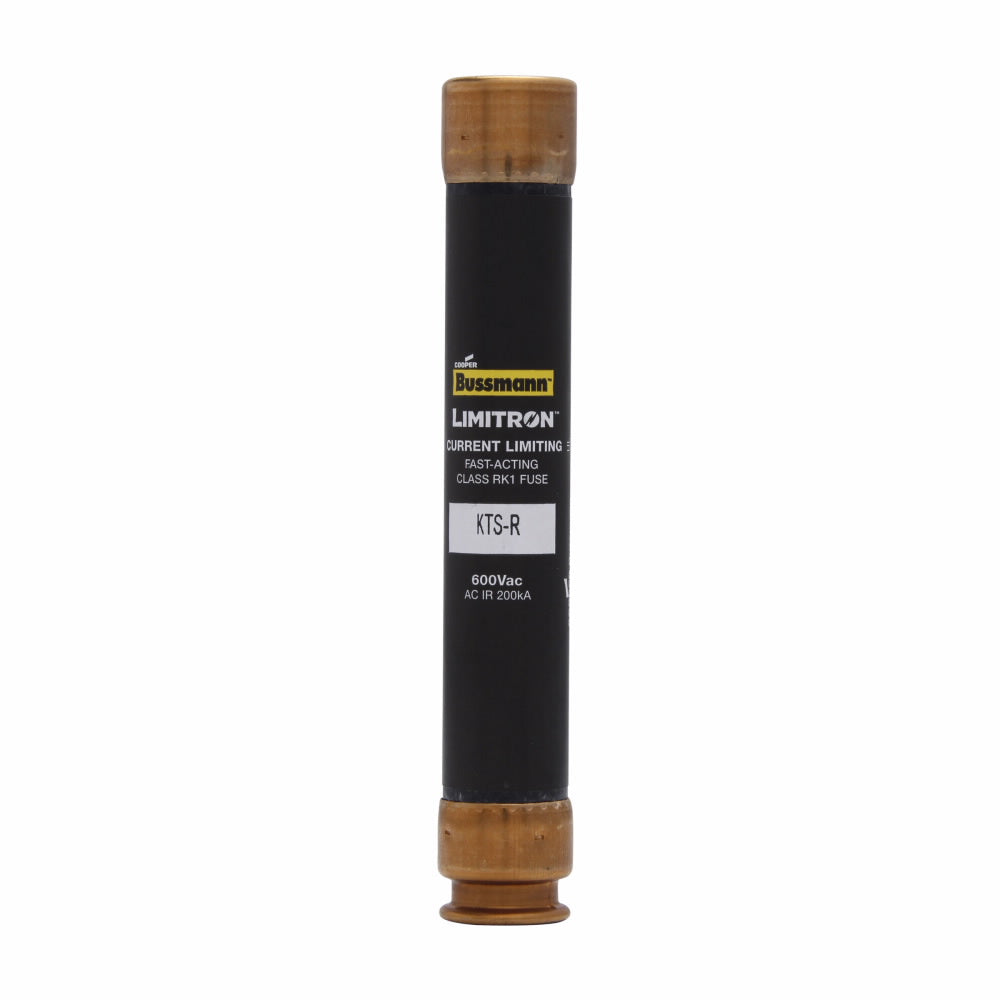

KTS-R-25 is a 25 Amp, 600 Volt AC Class RK1 fast acting fuse from Eaton Bussmann designed for circuit protection.This LIMITRON® fast acting, current limiting fuse features a single element construction with 70/30 brass end caps and glass melamine tube. It is rated for 600 VAC with an interrupting rating of 200,000 AIC RMS, UL Listed to Std. 248-12 and CSA Certified. The fuse is suited for circuits and loads without heavy surge currents, providing advanced short-circuit current limitation and protection for panelboards and fuse blocks.

Key Specifications
• Amperage: 25 Amps
• Voltage Rating: 600 Volts AC
• Fuse Class: RK1
• Fuse Type: Fast Acting, Current Limiting
• Interrupting Rating: 200,000 AIC RMS @ 600 VAC
• Physical Size: 0.81" x 5"
• End Caps: 70/30 Brass
• Tube Material: Glass Melamine
• Poles: 1 (Single Pole)
• Certifications: UL Listed, CSA Certified
• Series: LIMITRON® KTS-R

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTS-R-25
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KTS-R
• Voltage : 600
• Amperage : 25
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712417068
• GTIN : 00051712417068
• Country of Origin : Mexico
• Dimensions : 5 in x 0.8 in x 0.8 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE, UL 248-12 Guide JDDZ, File E4273, CSA C22.2 No. 248.12, Class 1422-02, File 53787
