KTS-R-175 - Eaton 175A 600V Class RK1 Fast-Acting Current Limiting Fuse 200kAIC

KTS-R-175

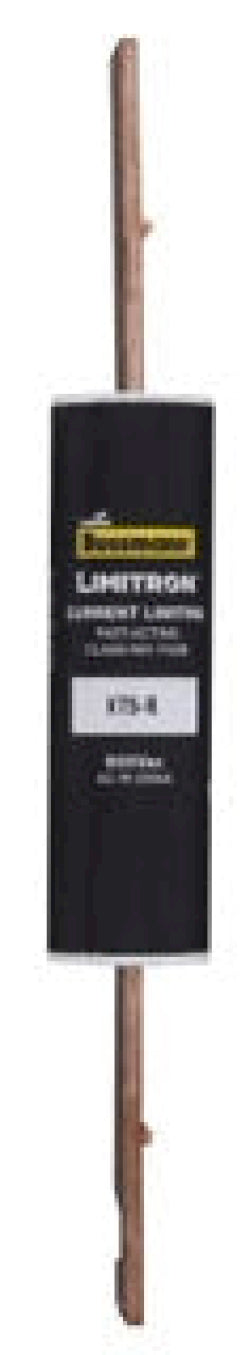

KTS-R-175 is an Eaton Bussmann Series Class RK1 fast-acting, current limiting fuse rated at 175 amperes and 600 volts AC. KTS-R-175 features a 70/30 brass end cap, melamine glass tube construction, and a blade end x blade end connection. It provides a high interrupting rating of 200 kAIC at 600 VAC, making it suitable for protecting electrical circuits requiring fast response and high short-circuit current limitation. This non-indicating, single-element fuse is designed for panelboard applications and complies with CE marking standards.

Key Specifications
• Amperage Rating: 175 A
• Voltage Rating: 600 V AC
• Interrupting Rating: 200 kAIC at 600 VAC
• Class: RK1
• Fuse Type: Fast-acting, current limiting
• Connection: Blade end x blade end
• Material: Melamine glass tube
• End Cap: 70/30 brass
• Number of Elements: 1
• Fuse Indicator: Non-indicating
• Compliance: CE Marked
• Product Dimensions: 9.63 in length, 1.5 in width, 1.5 in height

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTS-R-175
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Limitron
• Type : KTS-R
• Voltage : 600
• Amperage : 175
• AIC rating : 200kA@600V
• Diameter : 1.5
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712417198
• GTIN : 00051712417198
• Dimensions : 9.63 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 1.124
• Certification : Ul Listed Csa Certified Ce Marked
