KTS-R-150 - Bussmann Eaton 150A 600V Class RK1 Fast-Acting Fuse, Current Limiting, 200kAIC, Non-Indicating, Blade End

KTS-R-150

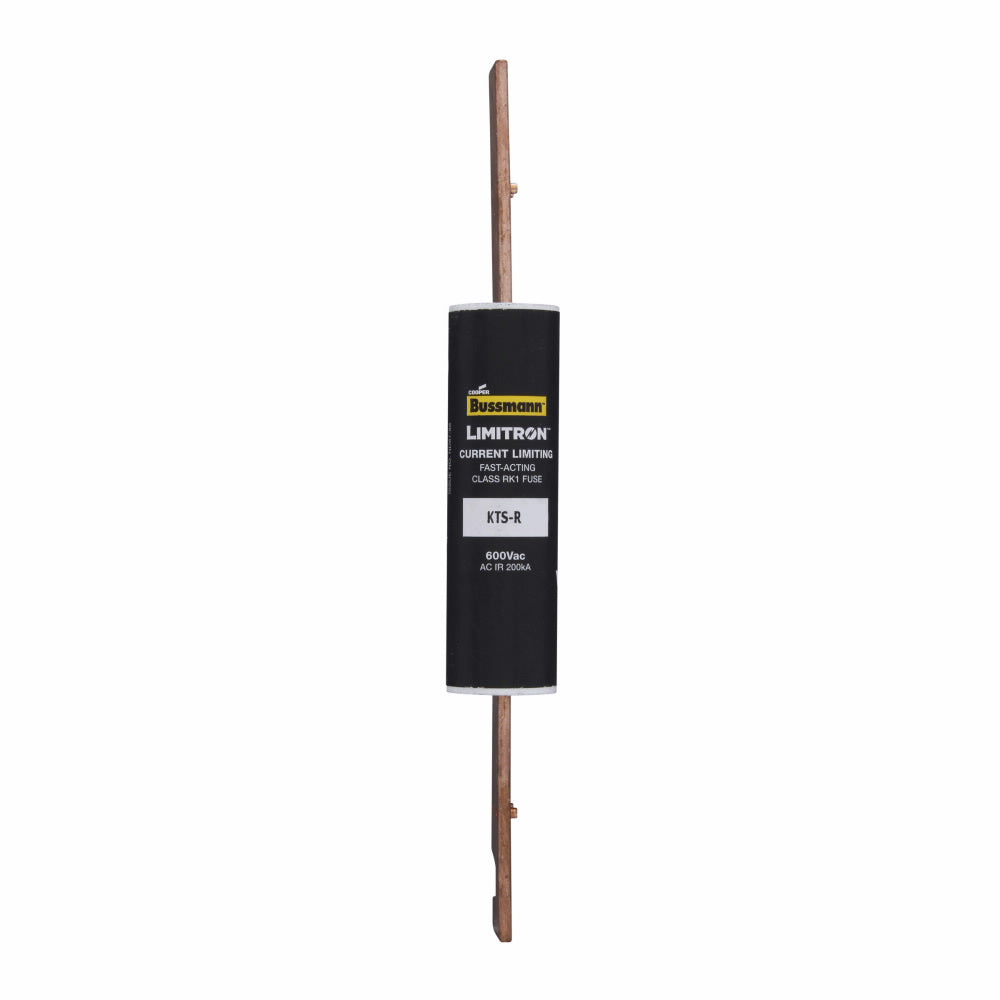

KTS-R-150 is a Bussmann Eaton Class RK1 fast-acting fuse designed for advanced circuit protection in industrial and commercial applications. This fuse features a 150A current rating, 600VAC voltage rating, and a 200kA interrupt rating for reliable performance under high fault conditions. The KTS-R-150 is constructed with a melamine glass tube and 70/30 brass end caps for durability and long service life. It is non-indicating and features a blade end x blade end connection for secure mounting in compatible fuse blocks and panelboards. This fuse is ideal for circuits and loads with no heavy surge currents, providing fast-acting, current-limiting protection. The KTS-R-150 is UL Listed and CSA Certified, meeting all relevant safety standards for electrical installations. Its compact design (1.5" x 9.63") makes it suitable for a wide range of panelboard and switchgear applications.

• Part Number: KTS-R-150
• Manufacturer: Bussmann, Cooper Bussmann, Eaton
• Amperage Rating: 150A
• Voltage Rating: 600VAC
• Interrupt Rating: 200kAIC at 600VAC
• Class: RK1
• Fuse Type: Fast-Acting, Current Limiting
• Mounting Type: Blade End x Blade End
• Tube Material: Melamine Glass
• End Caps: 70/30 Brass
• Indicator: Non-Indicating
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTS-R-150
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KTS-R
• Voltage : 600
• Amperage : 150
• AIC rating : 200kA@600V
• Diameter : 1.5
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712417181
• GTIN : 00051712417181
• Dimensions : 9.63 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 1.124
• Certification : CE, CSA, UL
