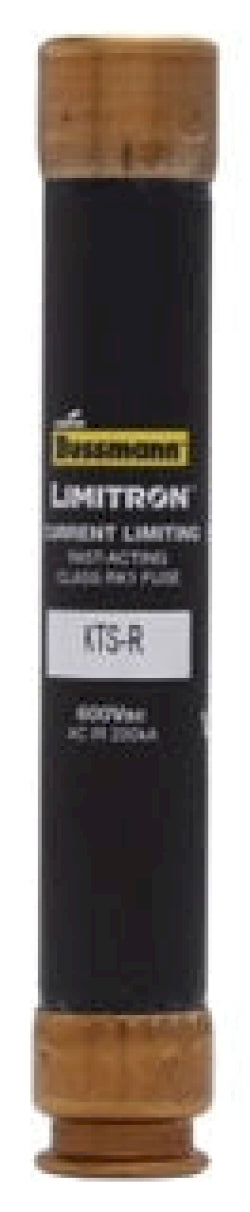

KTS-R-15 - Eaton 15A 600V Class RK1 Fast-Acting Current-Limiting Fuse, Single Element, Ferrule End, 200kA Interrupt Rating, Limitron Series

KTS-R-15

KTS-R-15 is a fast-acting, current-limiting Class RK1 fuse from Eaton, designed for advanced circuit protection in industrial and commercial applications.

This single-element fuse offers minimal time-delay and a high degree of short-circuit current limitation, making it particularly suited for circuits and loads without heavy surge currents, such as those found in control panels and safety systems. It features a rejection style design for enhanced safety and compatibility.

Key Specifications
• Amperage: 15A
• Voltage: 600V AC
• Poles: 1
• Mounting Type: Ferrule end (panelboard)
• Interrupt Rating: 200 kA at 600V AC
• Series/Frame: KTS-R (Limitron)
• Trip Unit: Not applicable (fuse)
• Certifications: CE Marked
• Physical Size: 0.81" x 5"
• End Caps: 70/30 Brass
• Application: Industrial facilities, factories, safety and security systems
• Packaging: Carton of 10

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTS-R-15
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KTS-R
• Voltage : 600
• Amperage : 15
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712417044
• GTIN : 00051712417044
• Dimensions : 0.8 in x 5 in x 0.8 in (Length/Depth x Height x Width)
• Weight : 0.145
