Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KTS-R-125

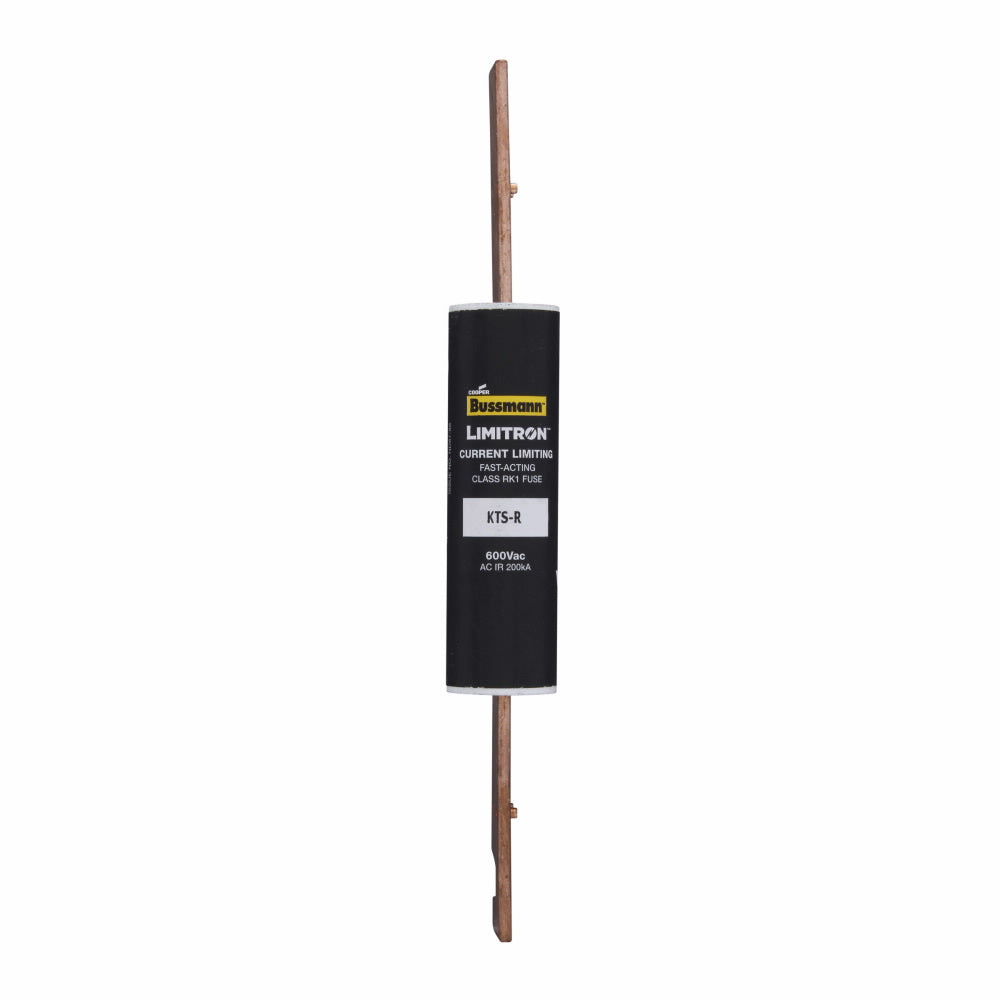

KTS-R-125 is a 125 amp, 600 volt AC Class RK1 fast acting fuse from Cooper Bussmann designed for circuit protection.This single-element, current-limiting fuse features a fast-acting response suitable for circuits and loads without heavy surge currents. It has a physical size of 1.5" x 9.63", glass melamine tube material, and 70/30 brass end caps. Rated for 600VAC with an interrupting rating of 200,000 AIC RMS, it is UL listed and CSA certified for safety and reliability.
- Key Specifications
- Amperage: 125 Amps
- Voltage: 600 Volts AC
- Fuse Class: RK1
- Fuse Type: Fast Acting, Single Element
- Interrupt Rating: 200,000 AIC RMS @ 600VAC
- Physical Size: 1.5" x 9.63"
- Tube Material: Glass Melamine
- End Caps: 70/30 Brass
- Certifications: UL Listed (Std. 248-12), CSA Certified (C22.2 No. 248.12)
- Series: LIMITRON®
- Part Number: KTS-R-125
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 125
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
- UPC : 05171241717
- GTIN : 00051712417174
- Country of Origin : Mexico
- Dimensions : 9.63 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 1.124
- Certification : CE, UL 248-12 Guide JDDZ, File E4273, CSA C22.2 No. 248.12, Class 1422-02, File 53787
