Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

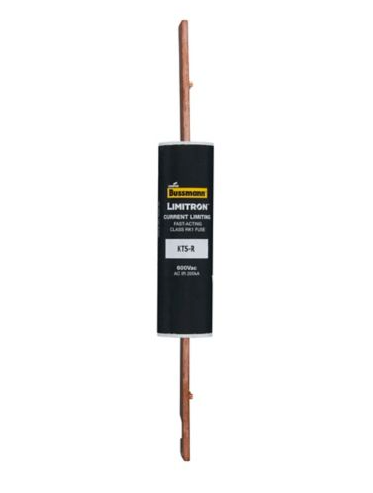

KTS-R-110
KTS-R-110 is an Eaton Bussmann series Class RK1 fast-acting current limiting fuse rated at 110 amperes and 600 volts AC.This rejection style fuse features a 200 kA interrupting rating at 600 Vac, designed for panelboards and industrial applications requiring reliable overcurrent protection. It has a single element, non-indicating design with a melamine glass tube cartridge body.
- Amperage Rating: 110 A
- Voltage Rating: 600 V AC
- Interrupting Rating: 200 kA at 600 Vac
- Class: RK1
- Fuse Type: Fast-Acting, Current Limiting
- Number of Elements: 1
- Mounting Style: Rejection Style
- Fuse Indicator: Non-indicating
- Body Material: Melamine Glass Tube
- Dimensions: 9.63 in length, 1.5 in diameter
- Certifications: CE Marked
Specifications
- Part Number: KTS-R-110
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Voltage : 3
- Amperage : 110
- AIC rating : 200kA@600V
- Diameter : 1.5
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712417297
- GTIN : 00051712417297
- Country of Origin : Mexico
- Dimensions : 9.63 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 1.124 lb
