2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

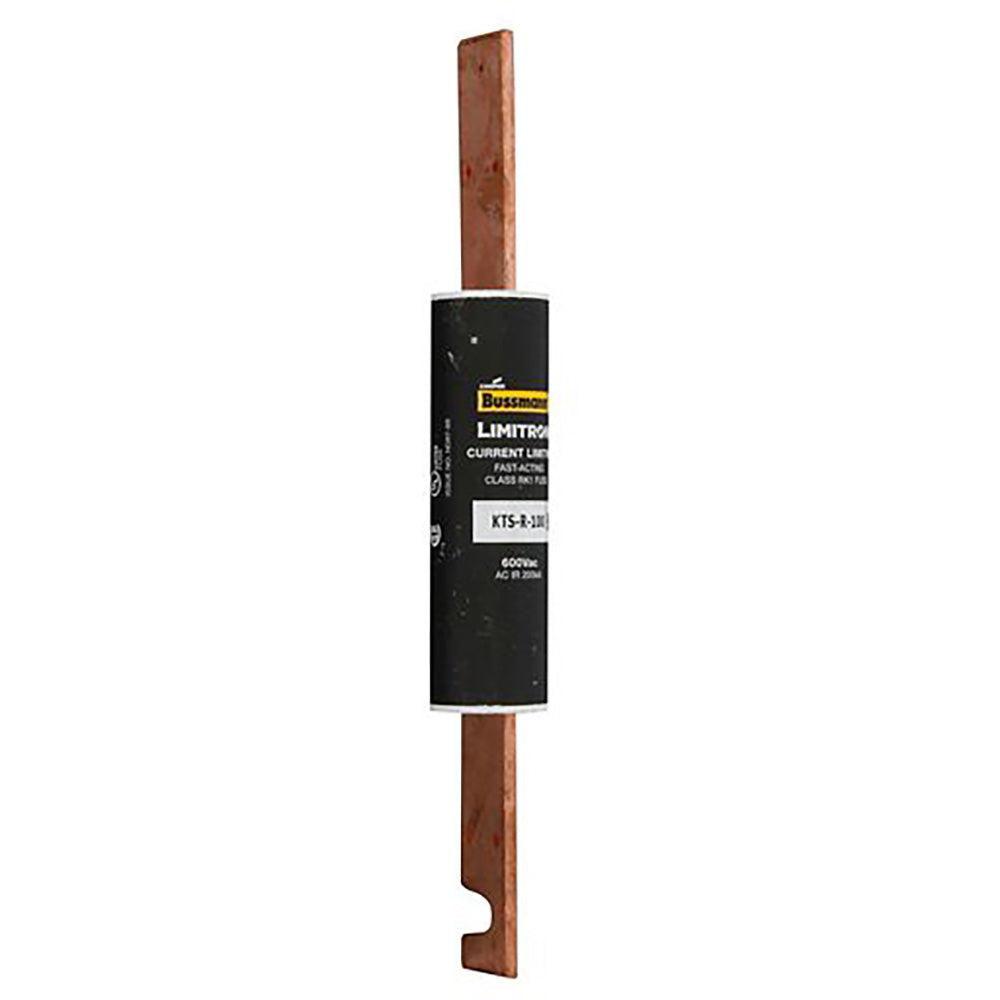

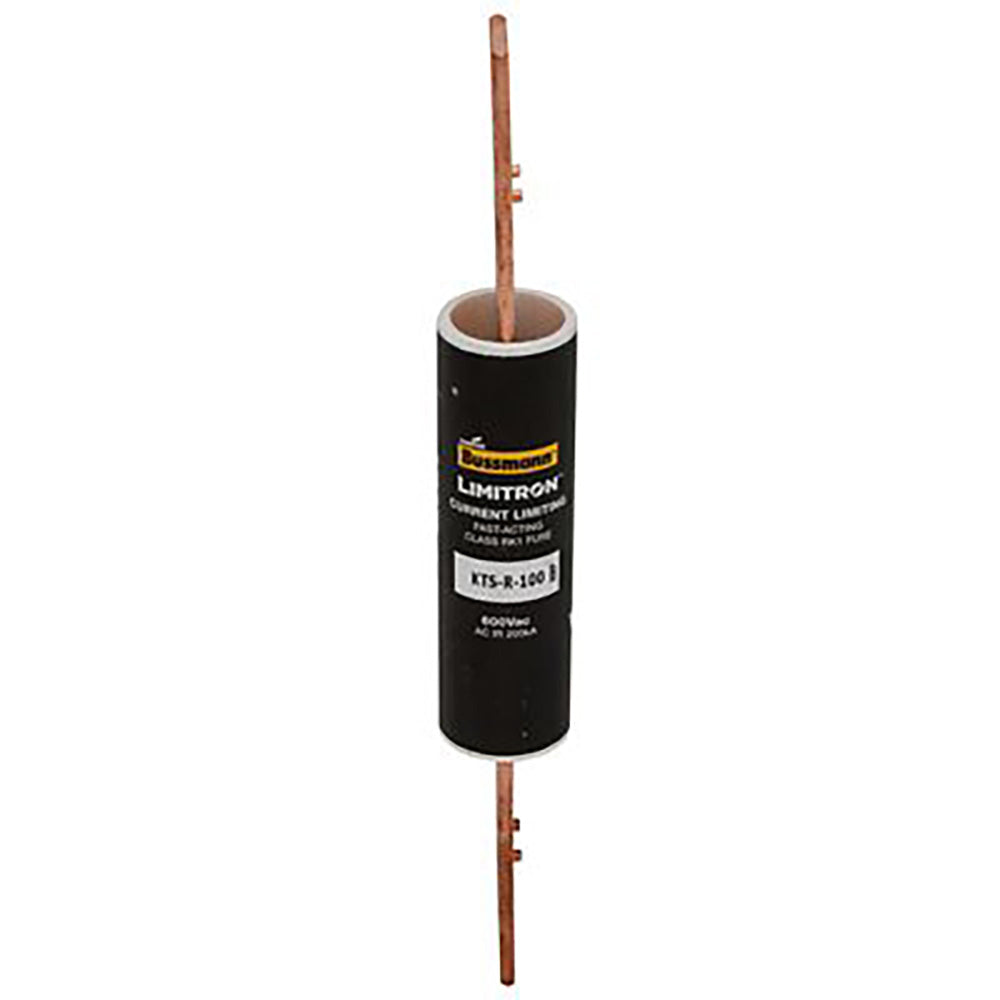

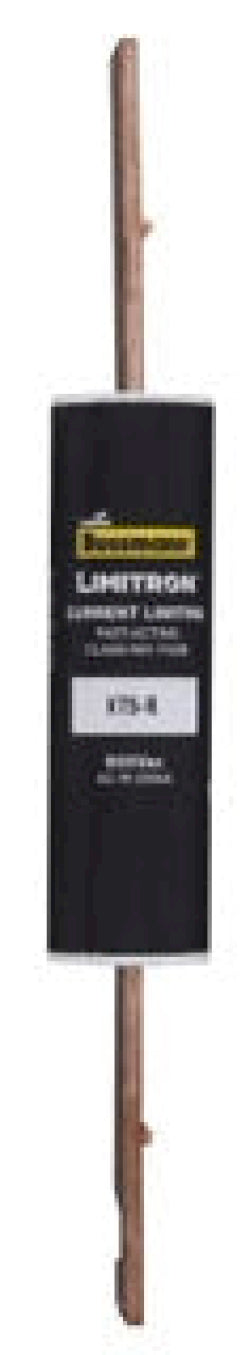

KTS-R-100
KTS-R-100 is a fast-acting, current-limiting fuse from Eaton Bussmann designed for advanced circuit protection.This Class RK1 LIMITRON fuse features a 100 ampere rating, 600 volt AC maximum voltage, and a high interrupting rating of 200kA RMS symmetrical at 600 Vac. It is a rejection style fuse suitable for panelboards and other power distribution applications, providing reliable fast-acting protection.
- Amperage: 100 A
- Voltage Rating: 600 Vac
- Interrupting Rating: 200 kA RMS Symmetrical
- Fuse Class: RK1
- Fuse Series: KTS-R
- Fuse Type: Fast-Acting, Current Limiting
- Mounting Type: Rejection Style
- End Caps: 70/30 Brass
- Certifications: UL Listed, CSA Certified, CE Marked
- Standards: UL 248-12, CSA C22.2 No. 248.12
Specifications
- Part Number: KTS-R-100
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : KTS-R
- Voltage : 600
- Amperage : 100
- AIC rating : 200kA@600V
- Diameter : 1
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712417167
- GTIN : 00051712417167
- Country of Origin : Mexico
- Dimensions : 7.88 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : CE, UL 248-12 Guide JDDZ, File E4273, CSA C22.2 No. 248.12, Class 1422-02, File 53787
