Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
KTQ-5

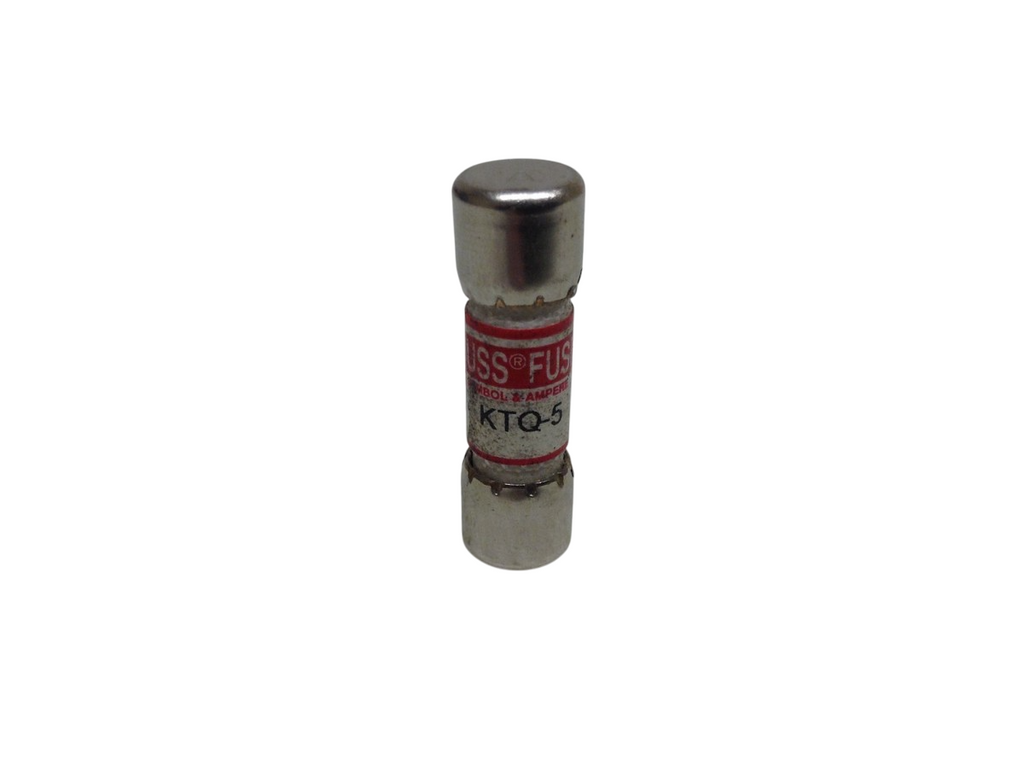

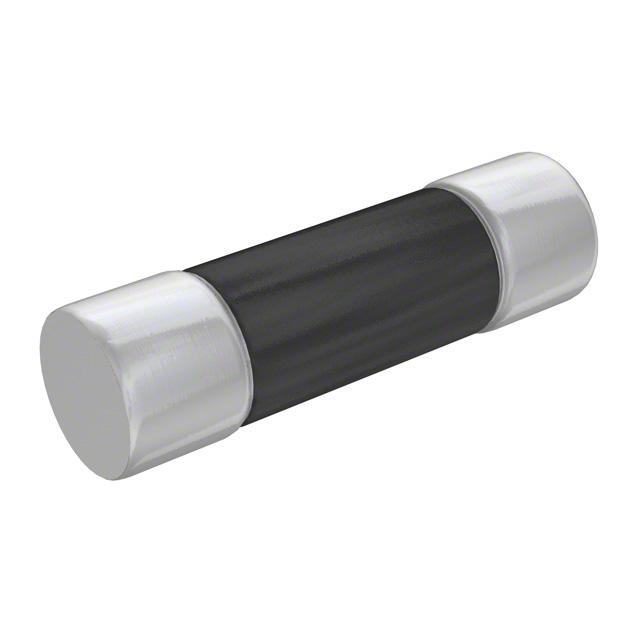

KTQ-5 is a fast-acting midget fuse designed for reliable circuit protection in low-voltage applications. This Eaton Bussmann fuse features a ferrule termination and is rated for 5 amps at 600 volts AC. The KTQ-5 fuse is constructed with a ceramic cartridge and provides fast-acting protection for sensitive electrical circuits. It is commonly used in industrial control panels, motor starters, and other applications requiring precise overcurrent protection. The fuse is UL listed and CSA certified, ensuring compliance with North American safety standards.
- Part Number: KTQ-5
- Manufacturer: Eaton Bussmann
- Amperage: 5A
- Voltage Rating: 600V AC
- Fuse Type: Fast-Acting Midget
- Mounting Type: Ferrule (Clip)
- Interrupt Rating: 10kA @ 600V
- Series: KTQ
- Physical Size: 13/32" x 1-3/8" (10.3mm x 35mm)
- Agency Certifications: UL Listed, CSA Certified
- Response: Fast Blow
- Application: Low Voltage Circuit Protection
Specifications
- Part Number: KTQ-5
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : KTQ Series
- Voltage : 600
- Amperage : 5
- AIC rating : 10kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712720854
- GTIN : 051712720854
- Weight : 5.19
