2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
KTQ-1

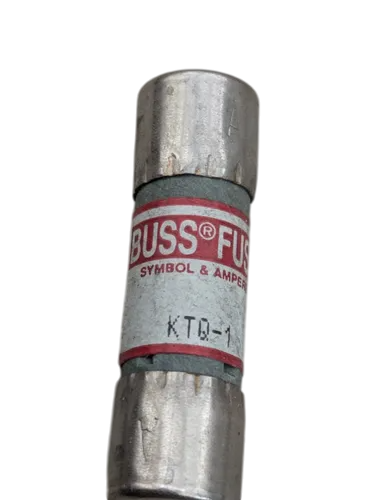

KTQ-1 is a fast-acting, ferrule type fuse rated for 1 amp and 600 volts AC, designed for reliable circuit protection.KTQ-1 fuses measure 13/32 inch by 1-3/8 inch (10.3mm x 35mm) and provide a 10,000A interrupting rating at 600 VAC. This fuse requires a fuse holder for mounting and is suitable for specialized circuits and industrial controls. It is UL Listed, CSA Certified, and RoHS compliant, ensuring safety and environmental standards.
- Key Specifications
- Amperage: 1 Amp
- Voltage Rating: 600 Volts AC
- Fuse Type: Fast-Acting, Ferrule Type
- Interrupting Rating: 10,000 Amps RMS Symmetrical
- Size: 13/32" x 1-3/8" (10.3mm x 35mm)
- Mounting Type: Requires Fuse Holder
- Agency Certifications: UL Listed, CSA Certified, RoHS Compliant
- Series/Frame: KTQ
Specifications
- Part Number: KTQ-1
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : KTQ Series
- Type : KTQ
- Voltage : 600
- Amperage : 1
- AIC rating : 10kA@600V
- Barrels : 1
Product Data
- Weight : 5.19
