KTN-R-70 - Eaton 70A 250V Class RK1 Fast-Acting Cartridge Blade Fuse 1 Pole 200kA Interrupt Rating

KTN-R-70

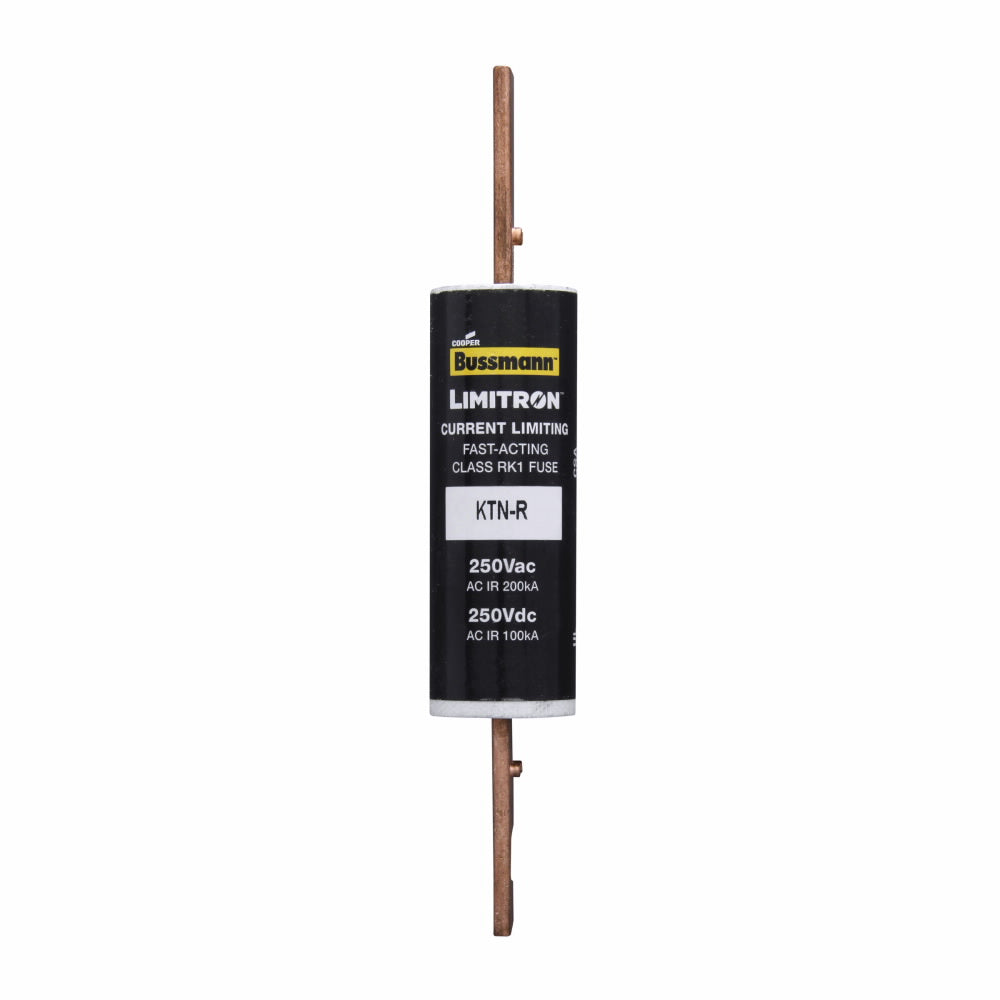

KTN-R-70 is a 70 amp, 250 volt, Class RK1 fast-acting cartridge blade fuse from Eaton designed for advanced circuit protection.This fuse provides current-limiting protection with a 200 kA interrupting rating at 250 VAC, suitable for critical industrial and commercial applications. It features a fast blow characteristic to help prevent equipment damage from short-circuit events and incorporates a Class R rejection feature allowing it to replace Class H, K1, and K5 fuses in non-rejection type holders. The fuse is UL listed, CSA certified, and CE marked, ensuring compliance with industry safety standards.

• Amperage: 70 A
• Voltage Rating: 250 VAC / 250 VDC
• Fuse Type: Fast-Acting (Fast Blow)
• Interrupt Rating: 200 kA AC, 100 kA DC
• Poles: 1
• Class: RK1
• Body Style: Cartridge Blade Fuse
• Mounting Type: Panelboard or Fuse Holder
• Agency Certifications: UL Listed, CSA Certified, CE Marked
• Class R rejection feature for compatibility

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTN-R-70
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KTN-R
• Voltage : 250
• Amperage : 70
• AIC rating : 200kA@250V
• Diameter : 1.06
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712407137
• GTIN : 00051712407137
• Dimensions : 5.88 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.27
