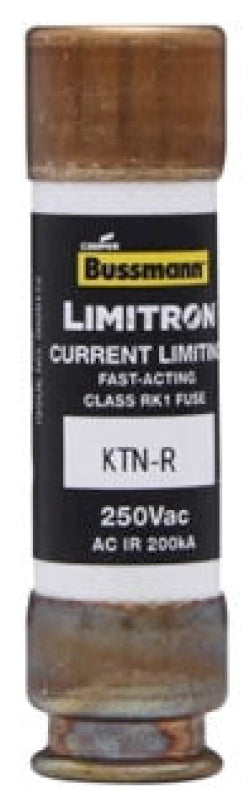

KTN-R-60 - Eaton 60 Amp 250V Class RK1 Fast Acting Current Limiting Fuse, 200kA Interrupt Rating, Cartridge Mount, Rejection Style, UL/CSA Certified

KTN-R-60

KTN-R-60 is a fast-acting, current-limiting cartridge fuse from Eaton, designed for reliable circuit protection in commercial and industrial applications.

This Class RK1 rejection-style fuse offers advanced current limitation to help prevent equipment damage during short-circuit events. It is UL and CSA certified, ensuring compliance with industry standards for safety and performance. The KTN-R-60 is ideal for circuits and loads without heavy surge currents, providing dependable protection with a high interrupting rating.

Key Specifications
• Amperage: 60A
• Voltage: 250V AC
• Poles: Single
• Mounting Type: Cartridge, holder/clip termination
• Interrupt Rating: 200,000 AIC RMS @ 250V AC
• Series/Frame: KTN-R
• Trip Unit: Fast-acting, single element
• Certifications: UL Listed (Std. 248-12, File E54273), CSA Certified (C22.2 No. 248.12, File 53787)
• Body Material: Glass melamine
• End Caps: 70/30 brass
• Physical Size: 0.81" x 3"
• Rejection Feature: Class R, prevents installation in non-compatible holders

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTN-R-60
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KTN-R
• Voltage : 250
• Amperage : 60
• AIC rating : 200kA@250V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712407120
• GTIN : 00051712407120
• Dimensions : 0.81 in x 3 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.9
