Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

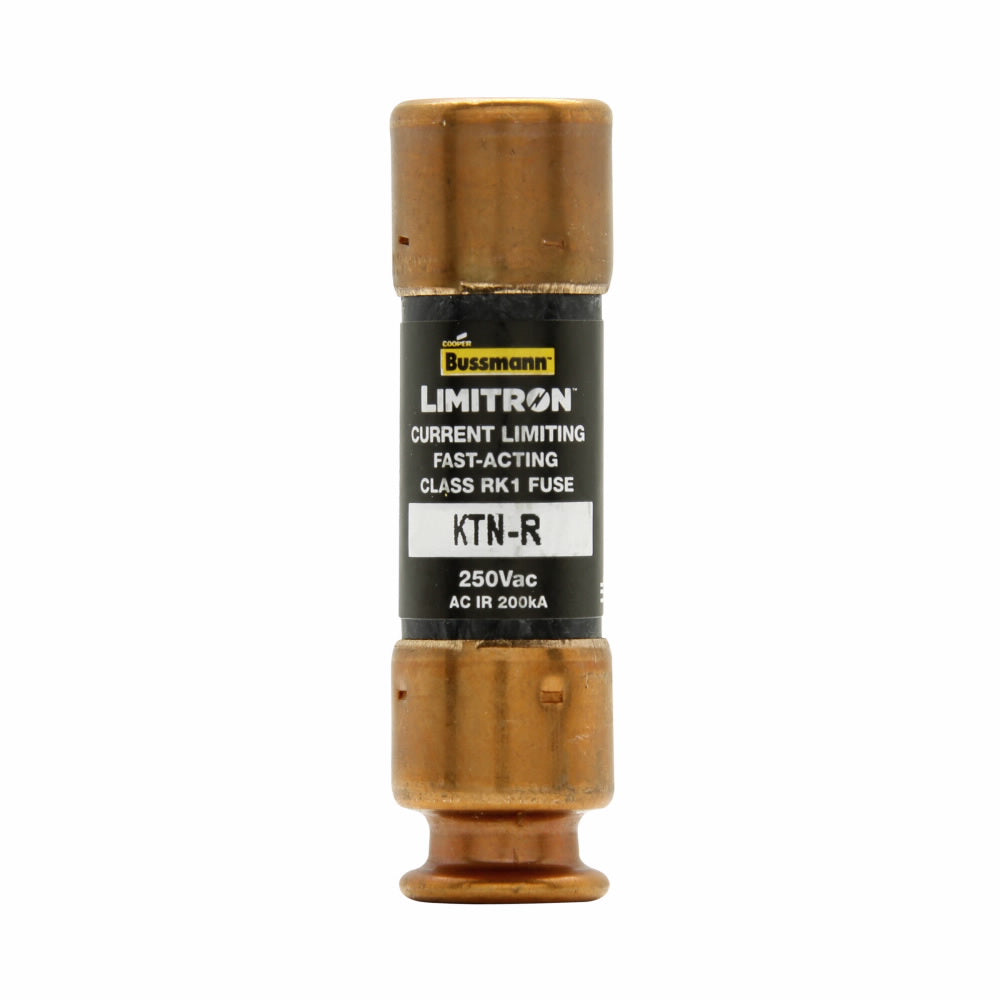

KTN-R-6
KTN-R-6 is an Eaton Bussmann Series Class RK1 fast-acting, current-limiting fuse designed for reliable circuit protection in industrial and commercial applications. This rejection-style fuse provides advanced protection against short-circuit events and is suitable for use in panelboards and other electrical systems requiring high interrupting capacity. The KTN-R-6 fuse features a 6A current rating and a 250VAC voltage rating, with a 200kA interrupting rating that meets NEC Section 110.9 requirements for modern electrical systems. Its fast-acting design helps prevent equipment damage during short-circuit events, and the rejection feature ensures compatibility with Class R holders while preventing installation in non-rejection holders.
- 6A current rating
- 250VAC voltage rating
- 200kA interrupting rating
- Class RK1 fuse type
- Fast-acting, current-limiting
- Rejection style
- UL Listed
- CSA Certified
- Panelboard mounting
- Non-indicating
- Ferrule body style
- Single pole
Specifications
- Part Number: KTN-R-6
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KTN-R
- Voltage : 250
- Amperage : 6
- AIC rating : 200kA@250V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712407021
- GTIN : 00051712407021
- Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.1
