KTN-R-5 - Eaton Bussmann 5A 250V Class RK1 Fast-Acting Current Limiting Fuse

KTN-R-5

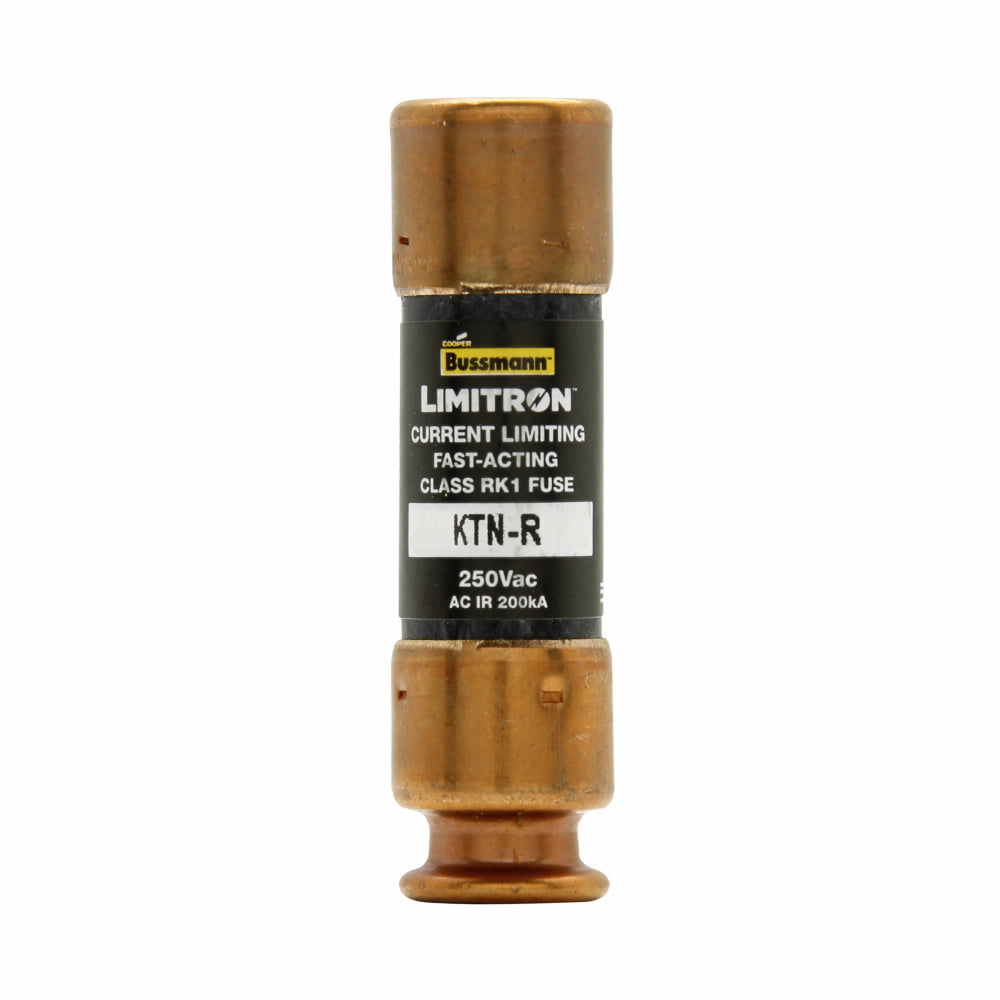

KTN-R-5 is a Eaton Bussmann Class RK1 fast-acting, current limiting fuse rated at 5 amperes and 250 volts AC.KTN-R-5 features a rejection style design with a 200 kA interrupting rating at 250 Vac, providing advanced protection for industrial and commercial applications. It has a single element, ferrule end connections, and a melamine glass tube construction with 70/30 brass end caps. This fuse complies with UL, CSA, and CE certifications and is ideal for preventing equipment damage from short-circuit events.

Key Specifications
• Amperage: 5 A
• Voltage Rating: 250 V AC
• Class: RK1
• Fuse Type: Fast-Acting, Current Limiting
• Interrupting Rating: 200 kA at 250 Vac
• Poles: 1
• Mounting Type: Rejection Style
• Material: Melamine Glass Tube with Brass End Caps
• Connection: Ferrule End x Ferrule End
• Fuse Indicator: Non-Indicating
• Certifications: UL Listed, CSA Certified, CE Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTN-R-5
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KTN-R
• Voltage : 250
• Amperage : 5
• AIC rating : 200kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712407298
• GTIN : 00051712407298
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.045
