Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

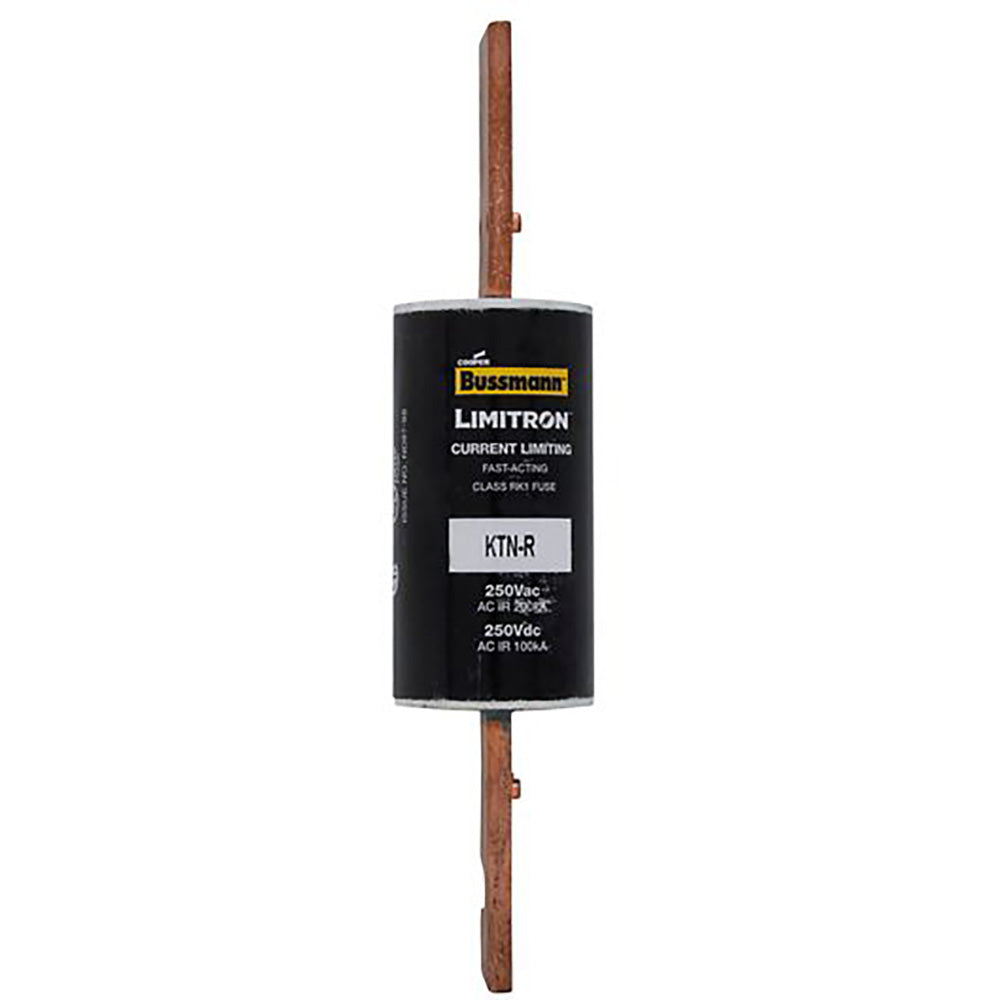

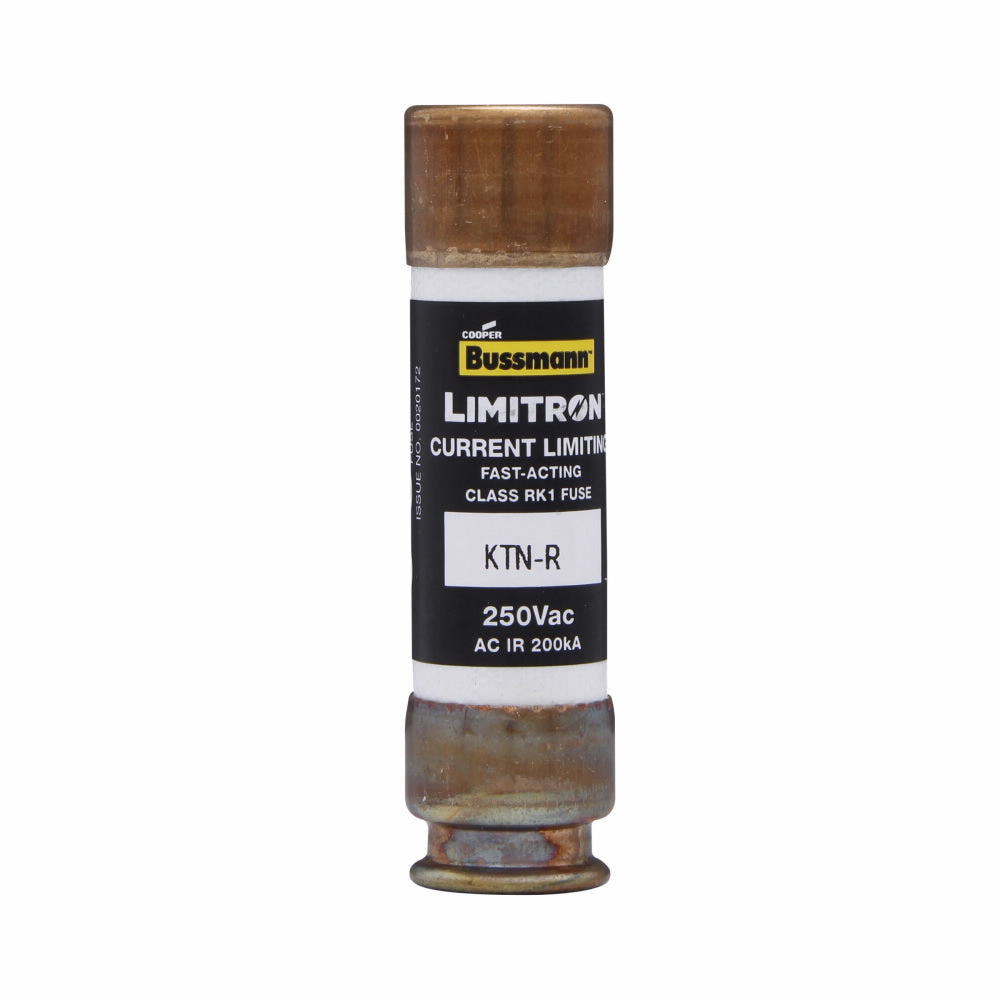

KTN-R-40
KTN-R-40 is a Class RK1 fast-acting, current-limiting fuse from Eaton Bussmann Series, designed for advanced circuit protection in industrial and commercial applications.
This rejection-style fuse offers superior current limitation to help prevent equipment damage during short-circuit events, with a high interrupting rating suitable for modern electrical systems. It is UL Listed, CSA Certified, and CE marked, ensuring compliance with rigorous safety standards.
-
Key Specifications
- Part Number: KTN-R-40
- Manufacturer: Eaton
- Amperage: 40A
- Voltage: 250V AC/DC
- Poles: 1
- Mounting Type: Ferrule end (blade)
- Interrupt Rating: 200kA AC RMS Symmetrical, 100kA DC
- Series/Frame: Bussmann Series KTN-R
- Trip Unit: Fast-acting, minimal time-delay
- Certifications: UL Listed (Std. 248-12), CSA Certified (Class 1422-02), CE
- Fuse Indicator: Non-indicating
- Diameter: 0.81 inch
- Rejection Feature: Class R rejection style
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KTN-R-40
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KTN-R
- Voltage : 250
- Amperage : 40
- AIC rating : 200kA@250V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712407090
- GTIN : 00051712407090
- Dimensions : 3 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.13
