Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

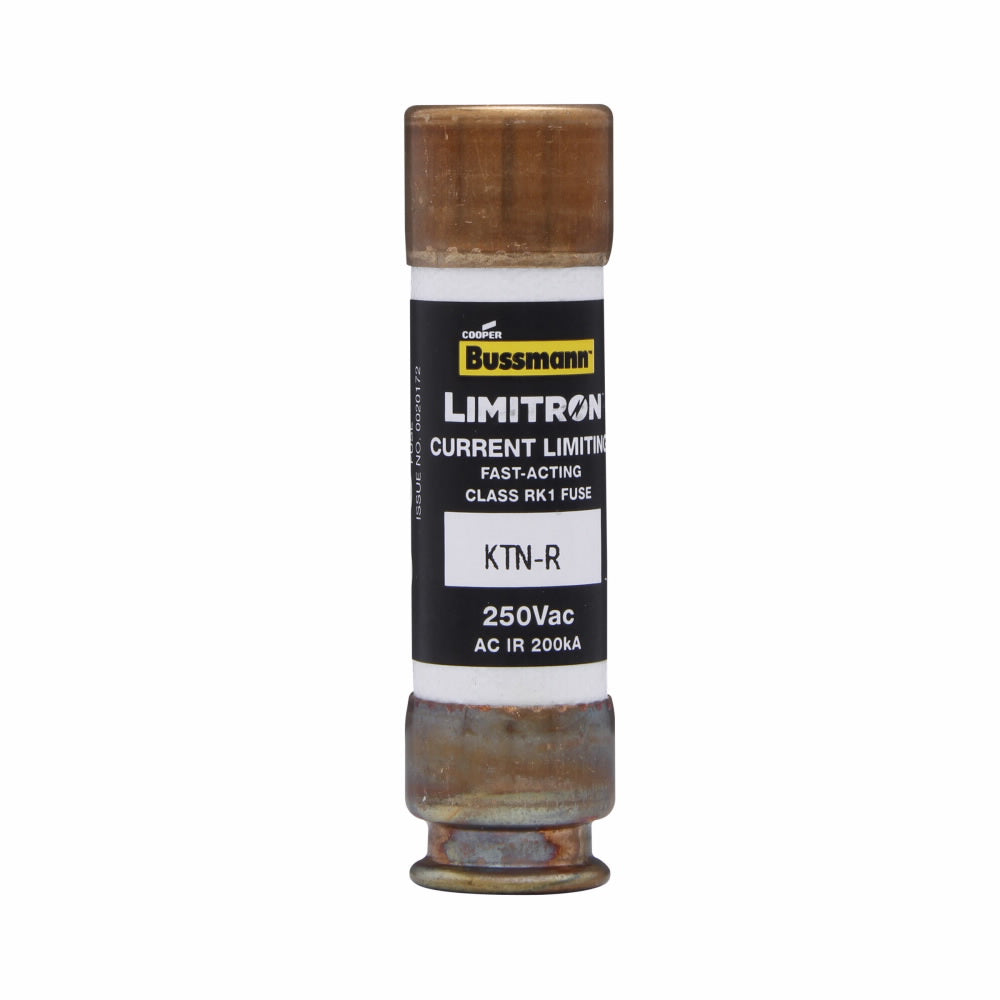

KTN-R-35
KTN-R-35 is a Class RK1 current-limiting fuse designed for reliable circuit protection in industrial and commercial applications. This Eaton Bussmann fuse offers advanced protection with fast-acting characteristics and a high degree of current limitation to help prevent equipment damage during short-circuit events. The KTN-R-35 features a 250V AC/DC rating, 35A current capacity, and a 200 kA interrupting rating, making it suitable for demanding power distribution environments. It has a ferrule end x ferrule end configuration and is constructed with a melamine glass tube and 70/30 brass end caps. This non-indicating fuse is designed for panelboard mounting and is compatible with Class H, K1, K5, and other fast-acting fuse holders due to its Class R rejection feature.
- 35A current rating
- 250V AC/DC voltage rating
- Class RK1
- Current-limiting
- Fast-acting
- 200 kA interrupting rating
- Ferrule end x ferrule end
- Melamine glass tube
- 70/30 brass end caps
- Non-indicating
- Panelboard mounting
- UL Listed
- CSA Certified
Specifications
- Part Number: KTN-R-35
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KTN-R
- Voltage : 250
- Amperage : 35
- AIC rating : 200kA@250V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712407083
- GTIN : 00051712407083
- Dimensions : 3 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.9
