Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

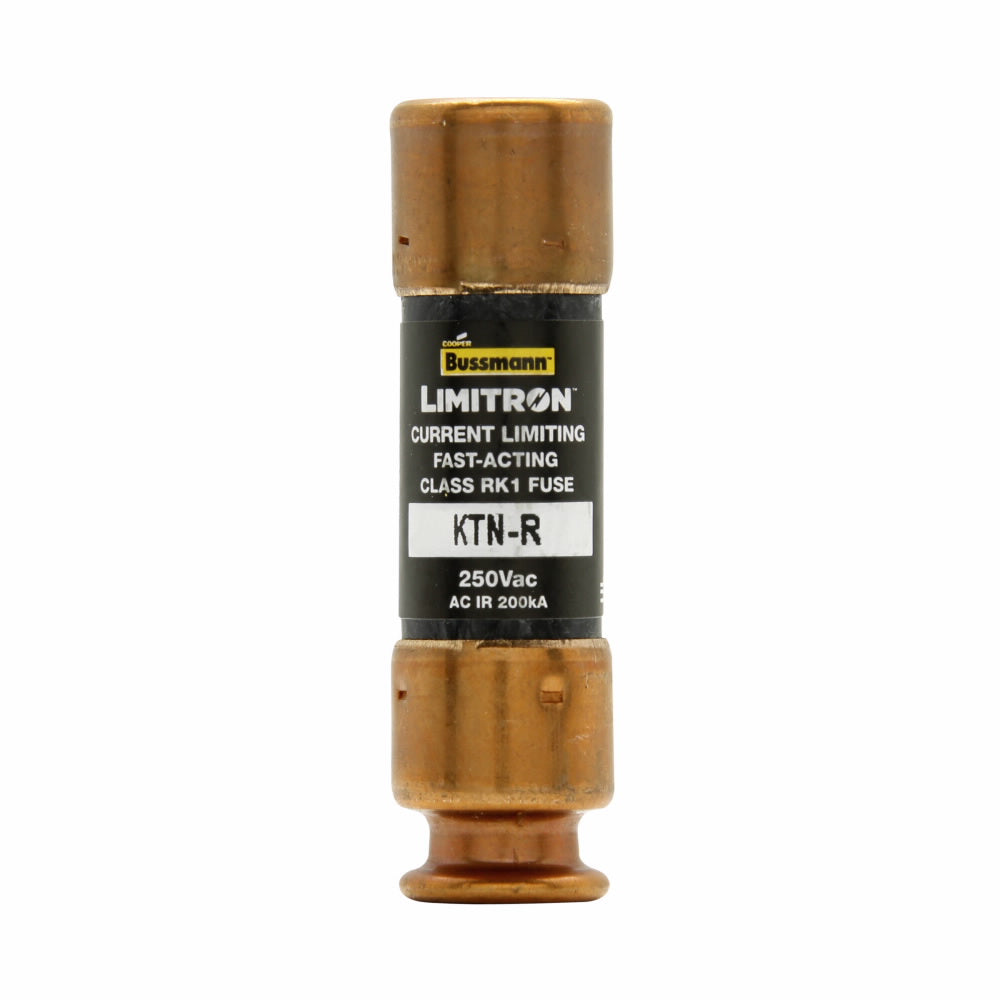

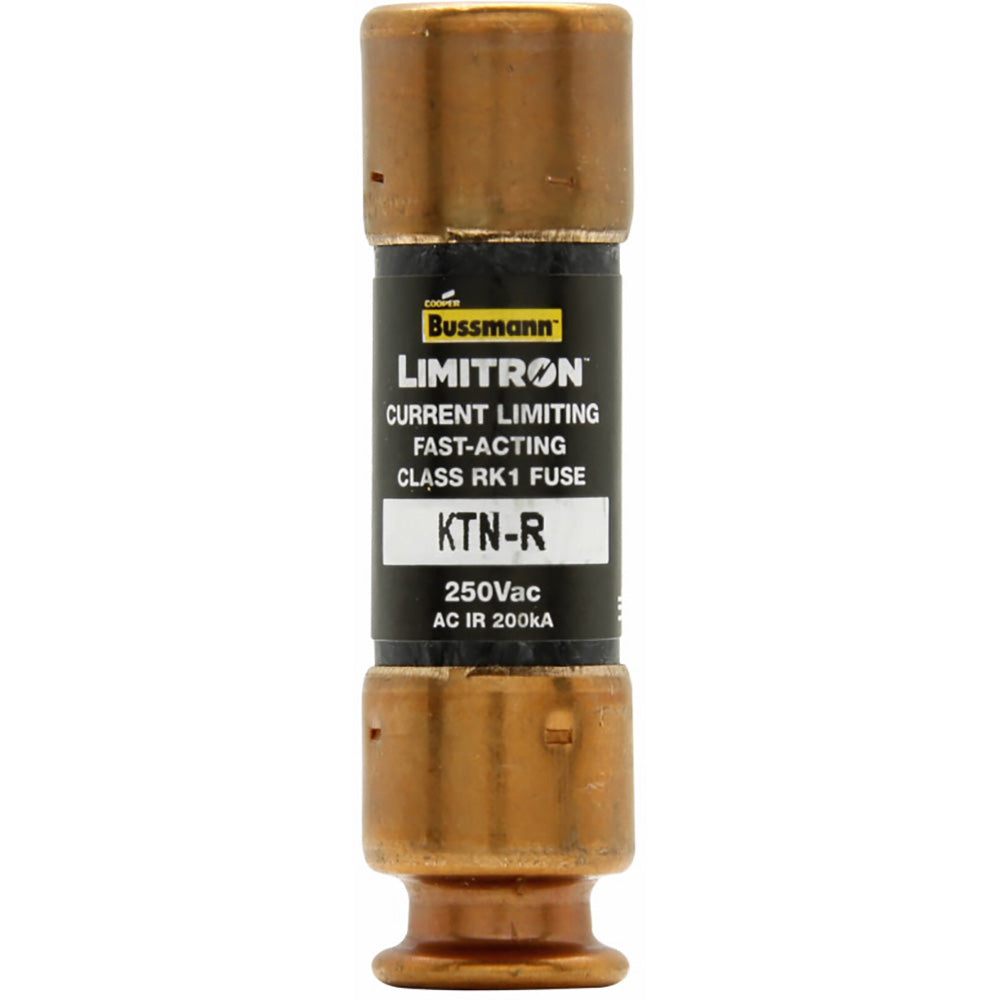

KTN-R-2
KTN-R-2 is a 2 Amp, 250 VAC Class RK1 fast-acting cartridge fuse from Eaton's Bussmann series designed for advanced circuit protection.KTN-R-2 provides current-limiting, fast-acting protection with a 200 kA interrupting rating at 250 VAC, making it suitable for critical industrial and commercial applications. It features a rejection style to prevent incorrect fuse installation and complies with UL 248-12 and CSA certifications.
- Amperage: 2 Amps
- Voltage Rating: 250 VAC
- Fuse Type: Fast-Acting, Current-Limiting
- Class: RK1
- Interrupting Rating: 200 kA at 250 VAC
- Mounting Type: Requires Fuse Holder
- Body Style: Cartridge
- Rejection Style: Class R
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: KTN-R-2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KTN-R
- Voltage : 250
- Amperage : 2
- AIC rating : 200kA@250V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712407311
- GTIN : 00051712407311
- Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.025
