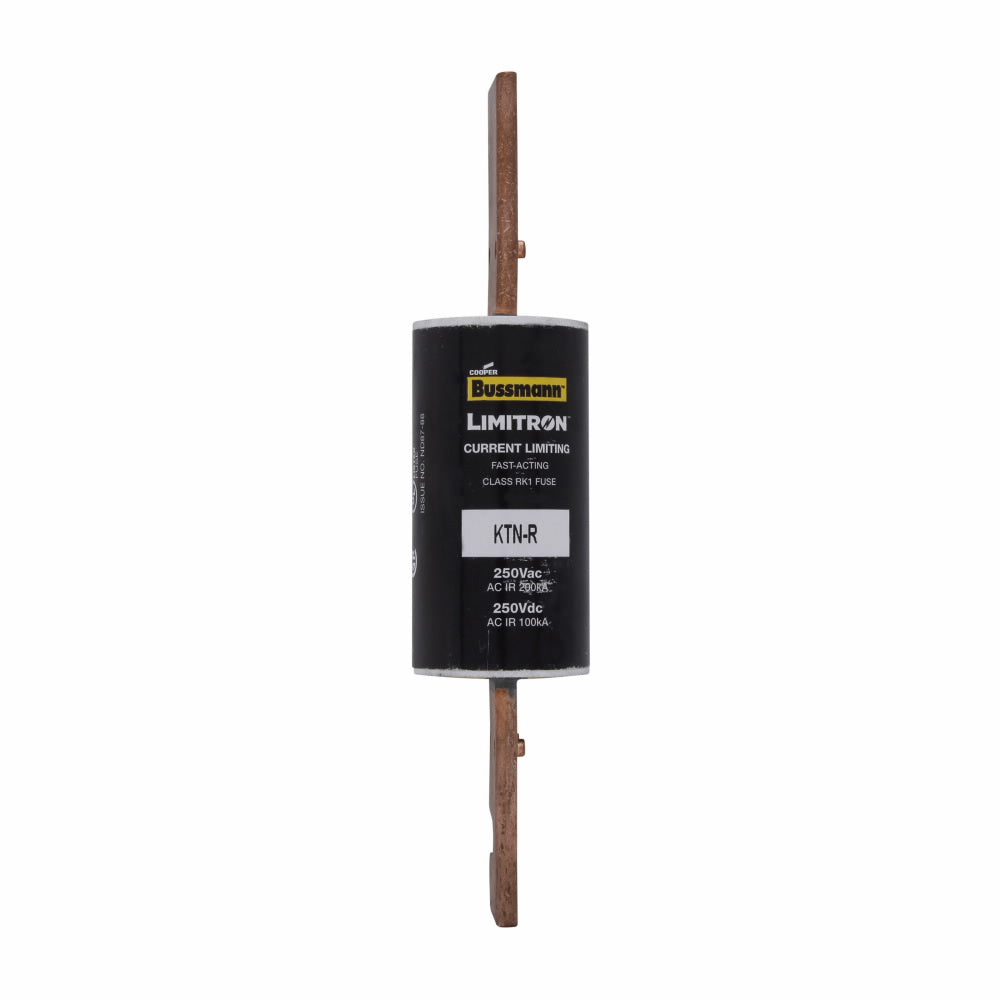

KTN-R-150 - Eaton 150 Amp 250 Volt Class RK1 Fast-Acting Fuse with 200kA Interrupt Rating

KTN-R-150

KTN-R-150 is a 150 Amp, 250 Volt Class RK1 fast-acting current-limiting fuse from Eaton's Bussmann series designed for advanced circuit protection.This fuse features a 200 kA interrupting rating at 250 Vac and 100 kA at 250 Vdc, providing superior protection against short-circuit events. It is a rejection style fuse compatible with non-rejection fuse holders, offering enhanced safety and reliability in industrial and commercial applications. The fuse body is made of melamine glass and it is UL listed, CSA certified, and CE marked.

• Amperage: 150 A
• Voltage Rating: 250 Vac / 250 Vdc
• Interrupting Rating: 200 kA at 250 Vac, 100 kA at 250 Vdc
• Fuse Type: Fast-Acting, Current-Limiting
• Class: RK1
• Mounting Type: Cartridge Blade Fuse
• Material: Melamine Glass Body
• Rejection Style: Class R Rejection Feature
• Certifications: UL Listed, CSA Certified, CE Marked
• Series: Bussmann KTN-R

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTN-R-150
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KTN-R
• Voltage : 250
• Amperage : 150
• AIC rating : 200kA@250V
• Diameter : 1.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712407182
• GTIN : 00051712407182
• Dimensions : 7.1 in x 1.56 in x 1.56 in (Length/Depth x Height x Width)
• Weight : 0.92
