Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

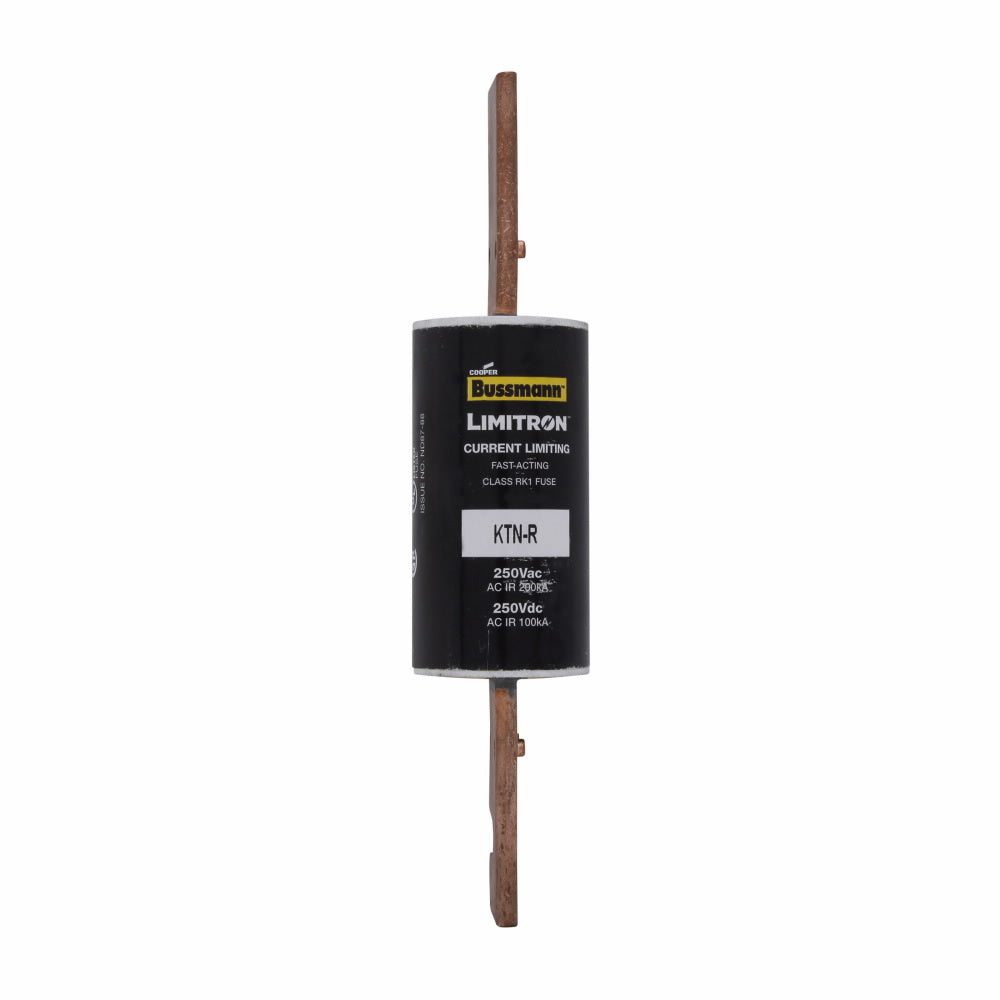

KTN-R-125
KTN-R-125 is a fast-acting, current limiting fuse from the Eaton Bussmann Series, designed for reliable circuit protection in industrial and commercial applications. This Class RK1 rejection style fuse provides advanced protection with a high interrupting rating and is suitable for use in panelboards and other electrical systems. The KTN-R-125 fuse features a single-element, fast-acting design with a current rating of 125 A and voltage ratings of 250 VAC and 250 VDC. It is a non-indicating fuse with a rejection style body, ensuring compatibility and safety in Class RK1 fuse holders. The fuse is constructed for durability and offers a compact size for easy installation.
- Amperage Rating: 125 A
- Voltage Rating: 250 VAC, 250 VDC
- Interrupt Rating: 200 kAIC at 250 VAC, 100 kAIC at 250 VDC
- Class: Class RK1
- Fuse Type: Fast-Acting, Current Limiting
- Mounting Type: Rejection Style
- Number of Elements: 1
- Fuse Indicator: Non-indicating
- Series: Eaton Bussmann Series
- Body Style: Cartridge Blade
- Product Length: 7.1 in
- Product Height: 1.56 in
- Product Width: 1.56 in
- Product Weight: 1.01 lb
Specifications
- Part Number: KTN-R-125
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- Amperage : 125
- AIC rating : 200kA@250V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 05171240717
- GTIN : 00051712407175
- Dimensions : 7.1 in x 1.56 in x 1.56 in (Length/Depth x Height x Width)
- Weight : 1.01
