KTN-R-100 - Bussmann Eaton 100A 250V Class RK1 Fast-Acting Fuse 1 Pole 200kA Interrupt Rating

KTN-R-100

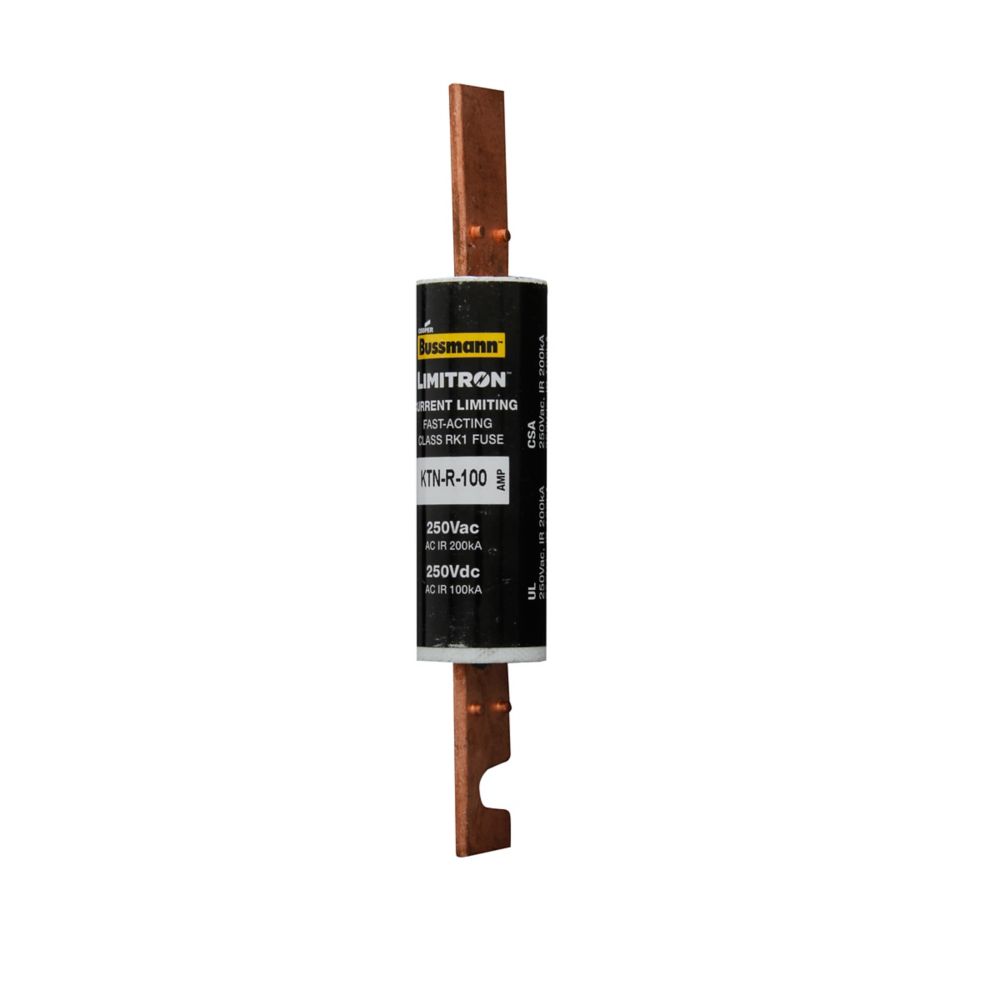

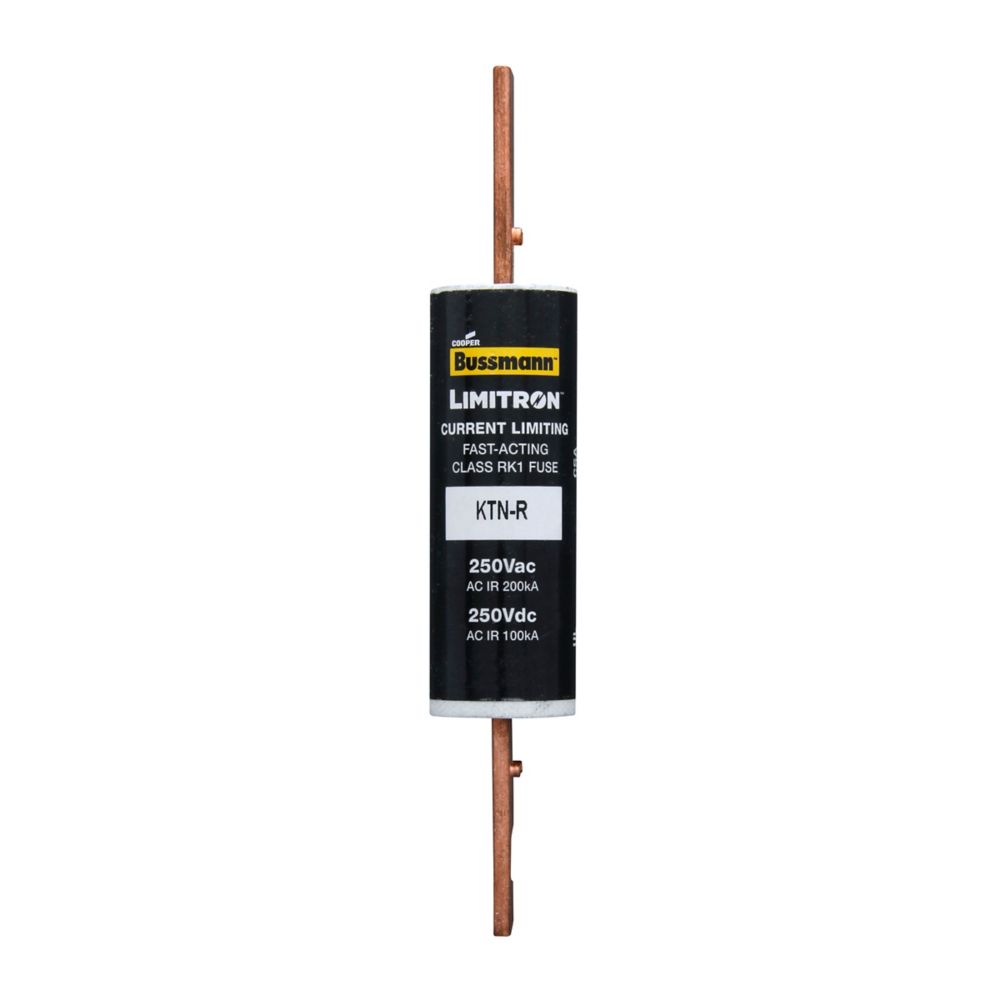

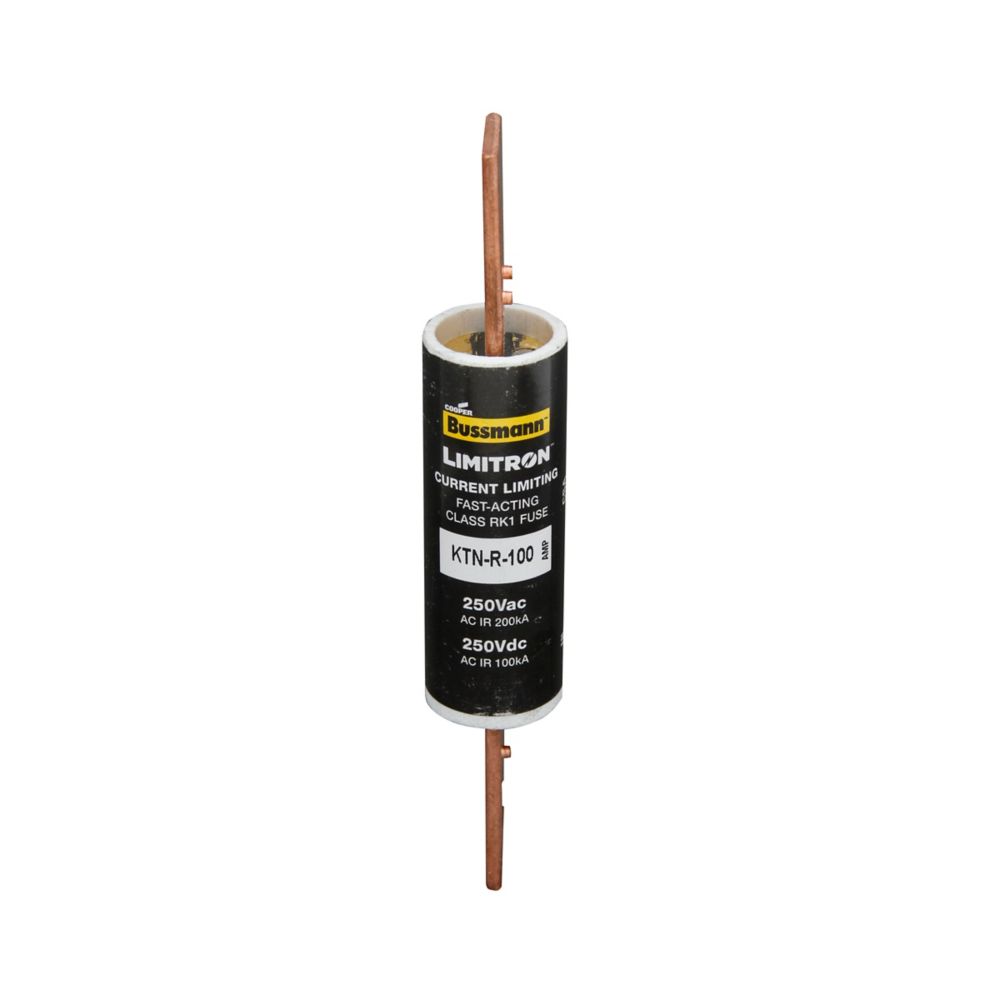

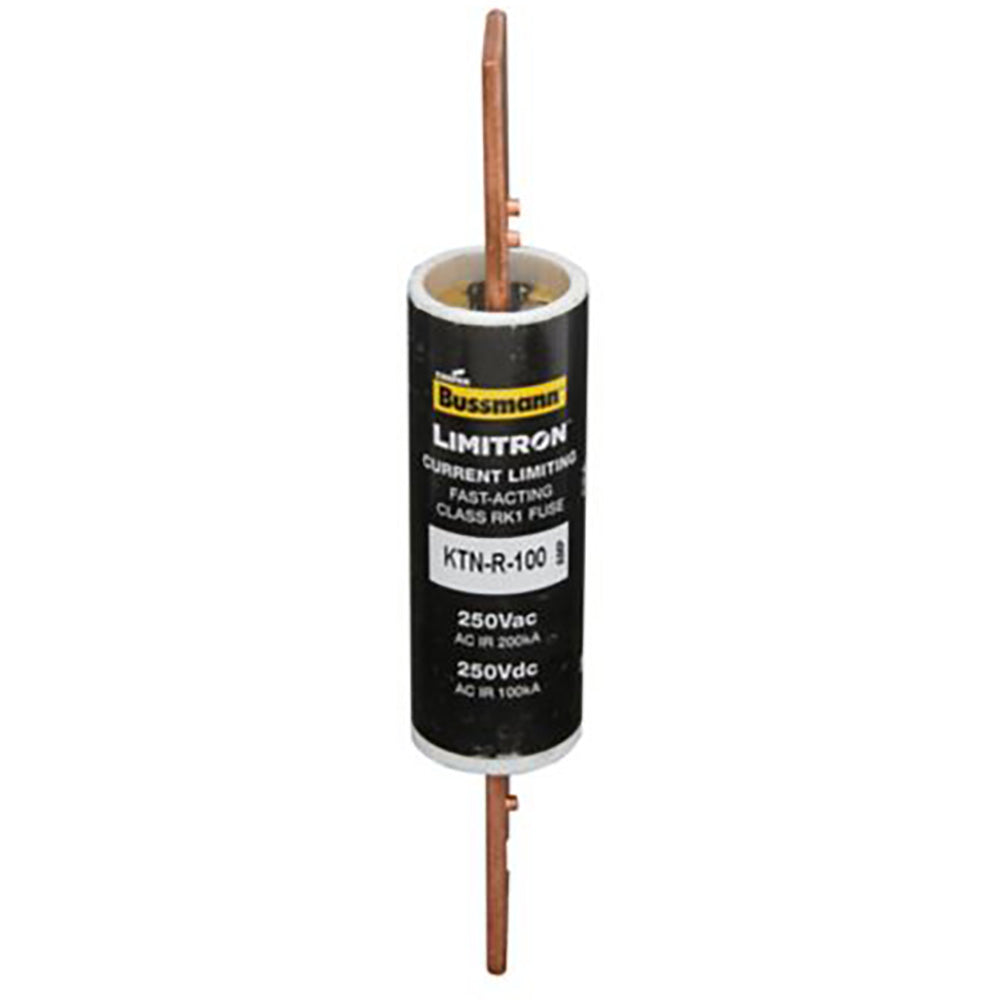

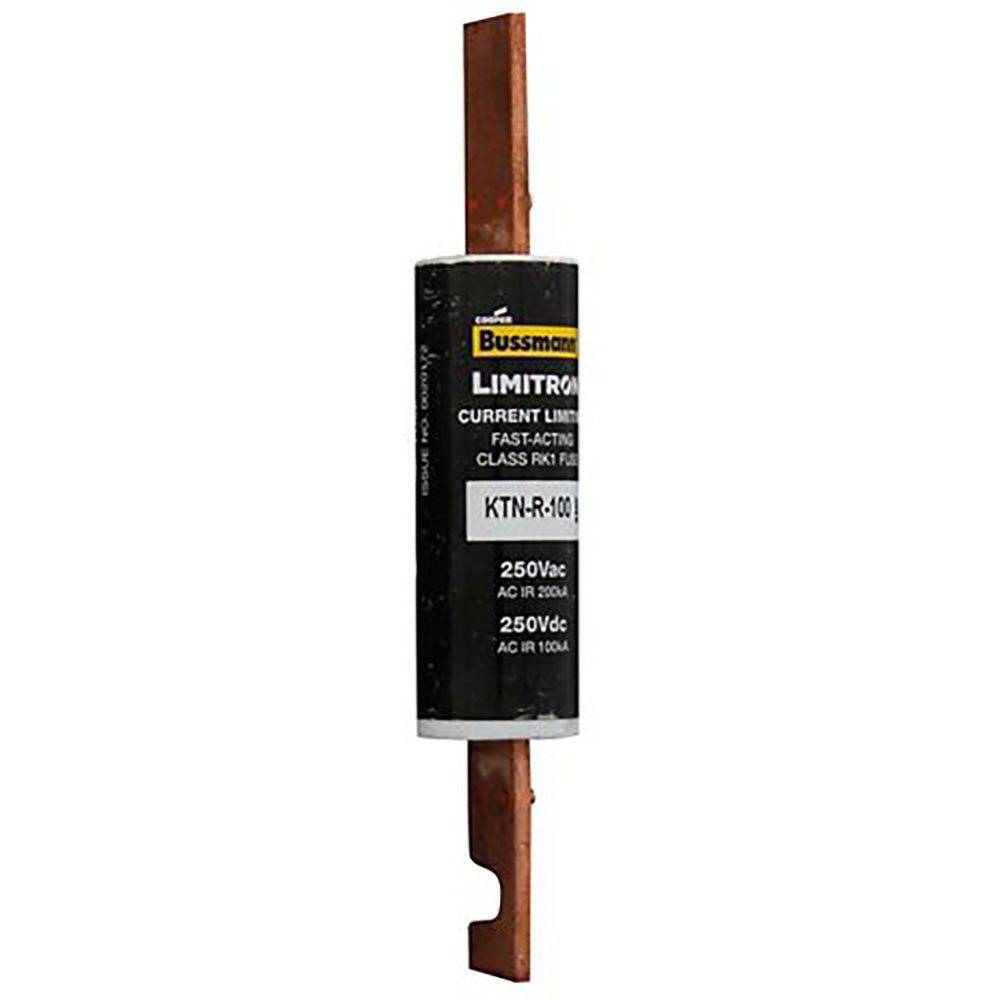

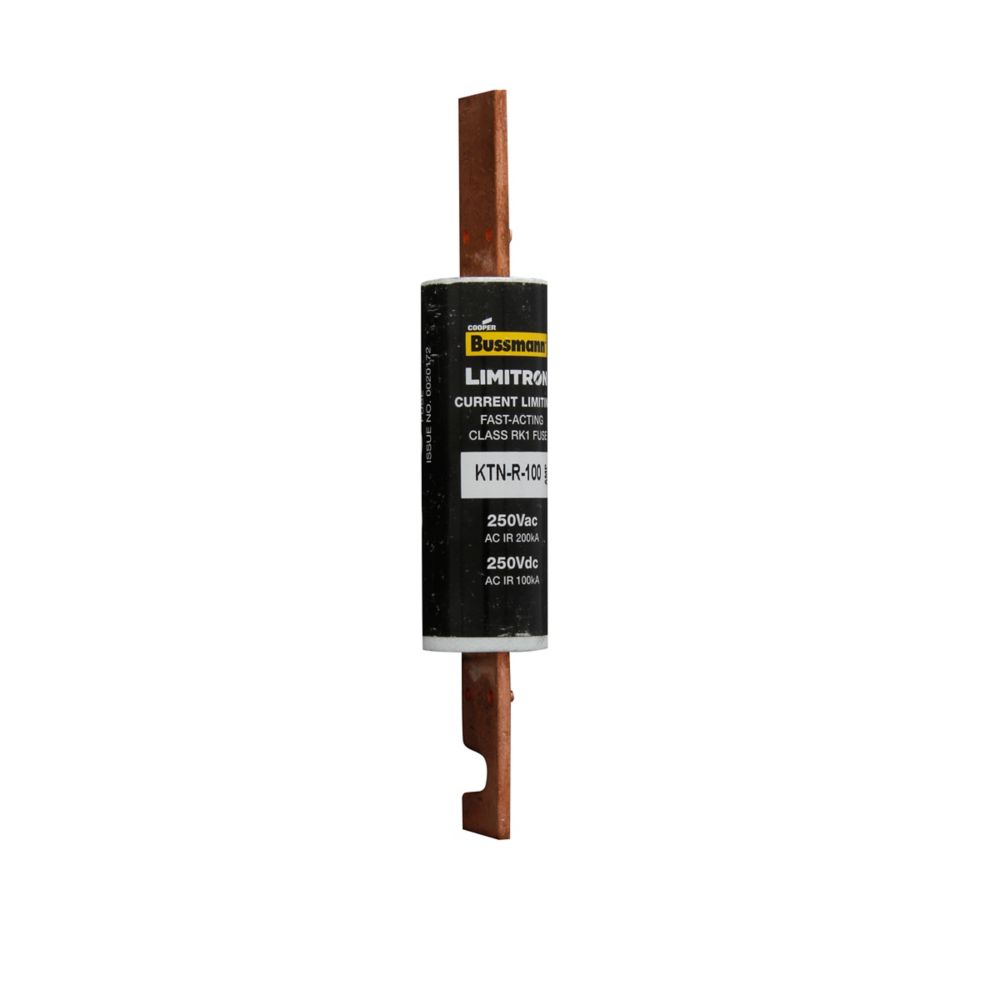

KTN-R-100 is a 100 amp, 250 volt Class RK1 fast-acting fuse from Bussmann Eaton designed for advanced circuit protection.This fuse features a 1-pole cartridge blade design with a 200 kA interrupting rating at 250 VAC, providing superior current limitation to protect equipment from short-circuit damage. It is UL listed, CSA certified, and CE marked, suitable for critical industrial and commercial applications. The KTN-R series incorporates a Class R rejection feature allowing replacement of Class H, K1, and K5 fuses in non-rejection holders.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 250 VAC / 250 VDC (up to 350 A)
• Poles: 1
• Fuse Type: Fast-Acting (LIMITRON)
• Interrupt Rating: 200 kA AC, 100 kA DC
• Series: KTN-R (Class RK1)
• Mounting Type: Cartridge Blade
• Certifications: UL Listed, CSA Certified, CE Marked
• End Caps: 70/30 Brass
• Non-Indicating
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: KTN-R-100
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KTN-R
• Voltage : 250
• Amperage : 100
• AIC rating : 200kA@250V
• Diameter : 1.06
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 051712407168
• GTIN : 00051712407168
• Dimensions : 1.2 in x 5.85 in x 1.2 in (Length/Depth x Height x Width)
• Weight : 0.3
