Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

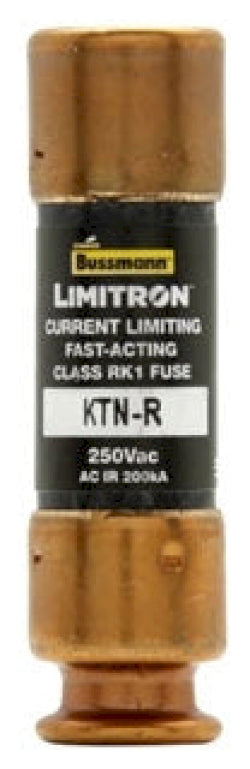

KTN-R-10
KTN-R-10 is a fast-acting, current-limiting Class RK1 fuse designed for reliable circuit protection in industrial and commercial applications. This Eaton Bussmann Series LIMITRON fuse features a 10A current rating and 250V AC voltage rating, providing advanced protection against short-circuit events. The KTN-R-10 fuse is constructed with 70/30 brass end caps and a ferrule end, making it suitable for panelboard installations. Its rejection style design prevents incorrect fuse replacement, ensuring compatibility and safety. The fuse is non-indicating and offers a high interrupting rating to meet demanding electrical requirements.
- 10A current rating
- 250V AC voltage rating
- Class RK1 fuse type
- Fast-acting, current-limiting
- 200 kA interrupting rating
- Rejection style fuse
- 70/30 brass end cap
- Ferrule end
- Non-indicating
- UL Listed
- CSA Certified
- Suitable for panelboards
Specifications
- Part Number: KTN-R-10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : KTN-R
- Voltage : 250
- Amperage : 10
- AIC rating : 200kA@250V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712407038
- GTIN : 00051712407038
- Dimensions : 0.56 in x 2 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.1
