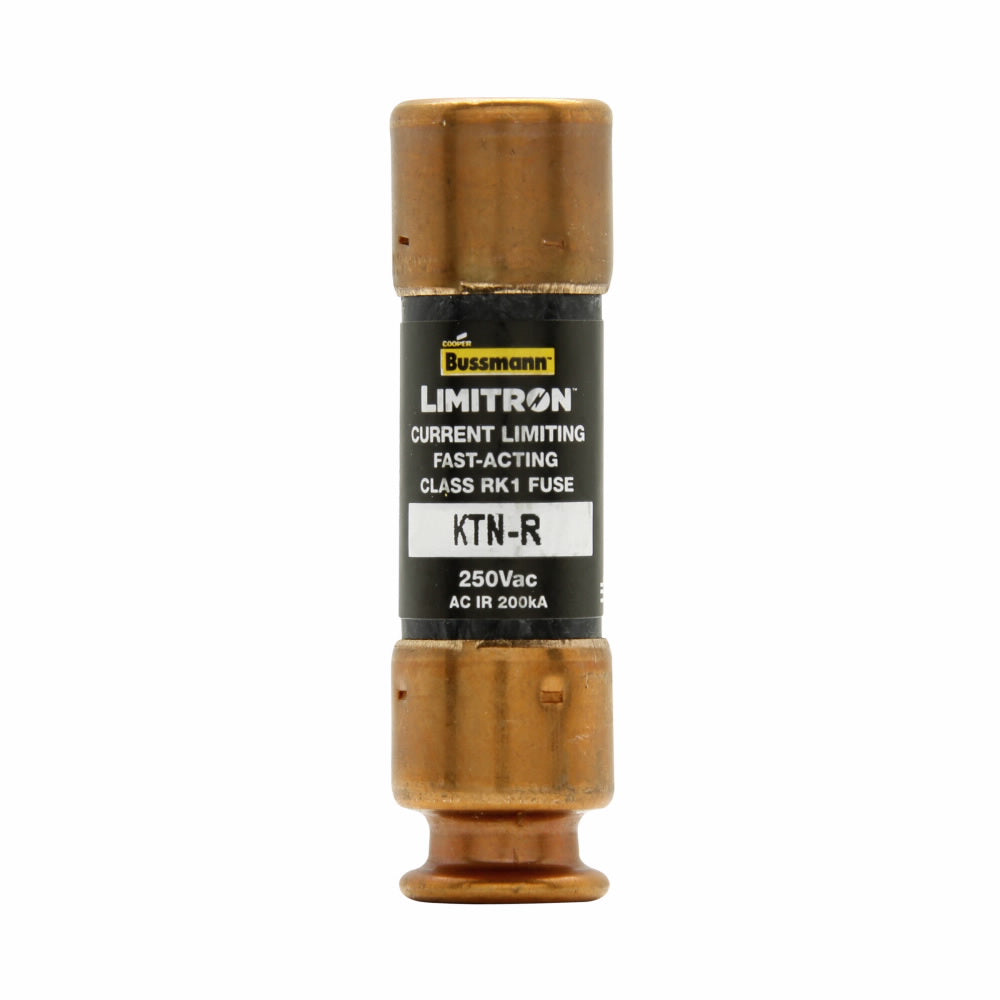

KTN-R-1 - Eaton Bussmann Series Class RK1 1A 250V Fast-Acting Fuse

KTN-R-1

KTN-R-1 is an advanced protection Class RK1 current-limiting, fast-acting fuse from Eaton Bussmann Series designed for branch circuit protection in industrial and commercial applications. This rejection-style fuse provides superior current limitation to help prevent equipment damage caused by short-circuit events and complies with NEC Section 110.9 for large capacity systems. Key Specifications

• Amperage: 1A
• Voltage: 250 Vac, 250 Vdc
• Interrupting Rating: 200 kA Vac RMS Sym., 100 kA Vdc
• Class: RK1 current-limiting
• Type: Fast-acting, single-element
• Rejection Feature: Class R rejection, compatible with Class H, K1, K5 fuse holders
• Agency Listings: UL Listed Std. 248-12, CSA Certified, CE marked
• Fuse Length: 0.56 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTN-R-1
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KTN-R
• Voltage : 250
• Amperage : 1
• AIC rating : 200kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 05171240700
• GTIN : 00051712407007
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.015
